Dana Spicer Dana 60 Reverse 4.88 Ratio Ring and Pinion Kit – 707475-4X

Dana Spicer

Shop Dana Spicer Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana Spicer 4.88 ratio front reverse ring and pinion kit for the Dana 60 axle, part 707475-4X
  • Dana 60 front axle type
  • Ring and pinion kit with a 4.88 ratio
  • Gears match the factory Dana design

Description

Overview

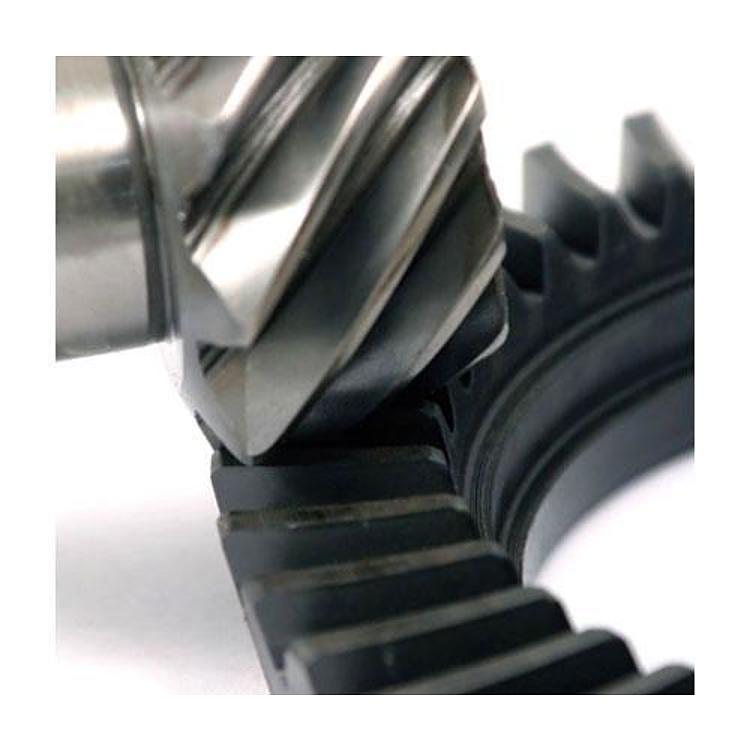

The Dana Spicer 707475-4X is a 4.88 ratio ring and pinion kit for the Dana 60 front axle, in the reverse layout. Dana Spicer describes its ring and pinion gears as the same gears that came in Dana axles from the factory, and says they come in most popular performance and replacement ratios.

A 4.88 ratio gives more torque multiplication at the wheels than a numerically lower gear. Confirm fit for your front Dana 60 axle and housing before ordering.

Key features

  • 4.88 ratio front reverse ring and pinion kit
  • Dana 60 front axle type
  • Matches factory Dana gear design
  • Popular performance and replacement ratio

Setting up a 4.88 gear set

A 4.88 ratio changes how the axle responds at low speed and under load. The engine turns the ring gear more times for each wheel turn, which helps with climbing, crawling and pulling heavy loads, but it also raises engine speed at highway cruising. Before buying, look at the tire diameter and transmission gearing you run, since those set how the ratio feels on the road.

A reverse layout kit is usually installed as a complete set, so the pinion, ring gear and carrier bearings are best replaced together. Gear marking, pinion depth and backlash are checked during setup, and the set needs a break-in period before it sees hard use.

  • Inspect the carrier bearings and pinion seal before installation
  • Check the axle housing for wear or damaged bearing bores
  • Plan a fluid change after the break-in period

Specifications

Brand Dana Spicer
Part number 707475-4X
Gear ratio 4.88
Axle location Front
Axle type Dana 60
Popular axle manufacturer Dana
Configuration Reverse
Kit type Ring and pinion kit

Vehicle fitment

This kit is for the front Dana 60 axle. Match the axle type and gear ratio to your housing before ordering.

Rear Dana 60 gears are a separate application, and the Dana 60 is a different axle from the Dana 50 and Dana 70. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Reverse layout gears need pinion depth, backlash and bearing preload set by a driveline shop, followed by a break-in period on the 4.88 ratio.

What’s included

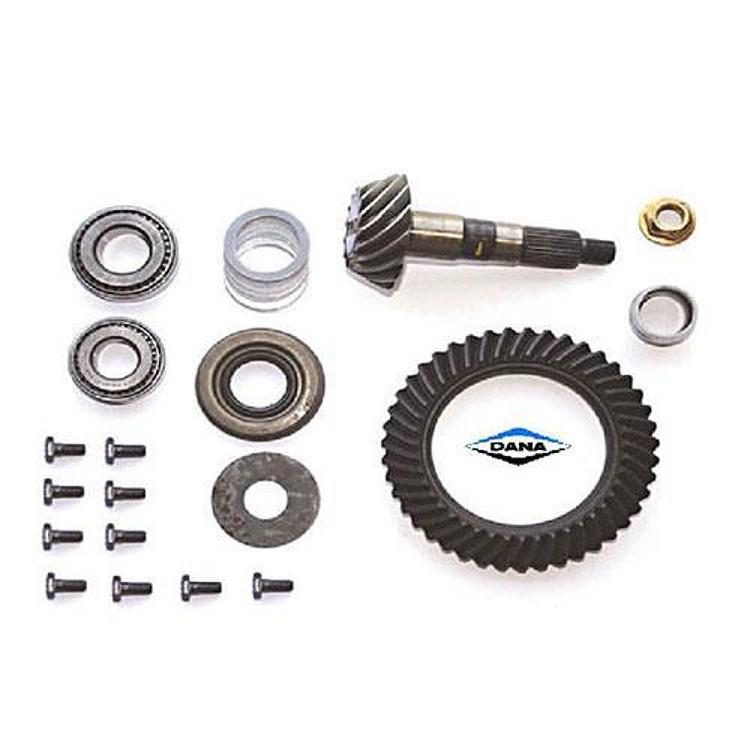

A ring and pinion gear kit for the Dana 60 front reverse axle.

SKU: D/S707475-4X Category:

Specification

Shipping weight 22.60 lbs
Package dimensions 11.50 × 11.00 × 6.00 in
brands

Questions & Answers

Is Dana Spicer 707475-4X for the front Dana 60 axle?

Yes, this kit is for the front Dana 60 axle with a 4.88 ratio in the reverse layout. Confirm the axle position and housing before ordering.

Does this kit fit a rear Dana 60?

This kit is for the front Dana 60 axle, and rear Dana 60 gears are a separate application. Check the housing and axle position before installing.

What does the 4.88 ratio change?

A 4.88 ratio gives more torque multiplication at the wheels than a numerically lower gear. The gears are the same design as those that came in Dana axles from the factory.

Should new bearings be installed with a ring and pinion kit?

Often yes. Carrier and pinion bearings wear at a similar pace to the gears, and fitting new ones with a fresh set helps the preload hold. Ask the driveline shop to inspect the old bearings before reusing them.
