Overview

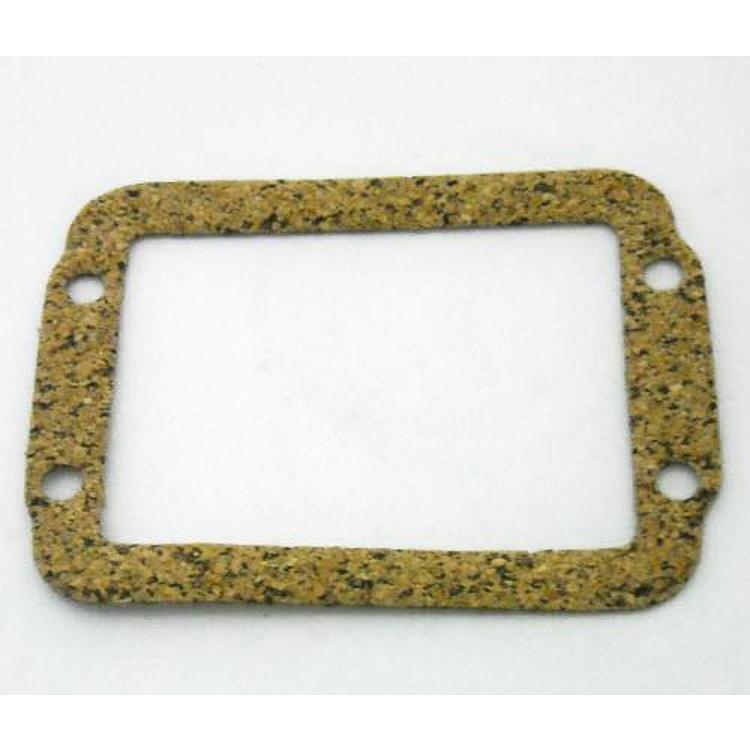

The Dana Spicer 41494 is an axle disconnect housing gasket for Dana 44, Dana 30 Reverse and Dana 60 axles. Dana Spicer presents it as an O.E.M. component for replacing or reconditioning an axle disconnect system, at the front axle location.
It is for servicing the axle disconnect system at the front axle location.
Key features
- Dana Spicer O.E.M. component
- Built for repairing or reconditioning an axle disconnect system
- It is designed for Dana 44, Dana 30 Reverse and Dana 60 axle types.
- The front axle location is the application.
Disconnect housing service
The axle disconnect housing gasket seals the disconnect assembly to the axle housing. When it hardens or tears, lubricant can seep out and the disconnect may not engage cleanly. Before fitting a new gasket, clean both mating faces, remove old sealant residue and check that the housing flange is straight and free of nicks.
Disconnect repairs often include a new shaft seal, fresh gear oil and a check of the actuator or shift components that engage the system. Keep the sealing surfaces dry during assembly and let any sealant set as its instructions say. Reconditioning the system at the same time can prevent a second teardown later.
- Check the housing flange for nicks
- Replace the shaft seal during gasket work
- Refill with the correct gear oil type
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 41494 |
| UPC | 70000007747 |
| Component | Axle disconnect housing gasket |
| Type | O.E.M. component |
| Axle location | Front |
| Axle types | Dana 44, Dana 30 Reverse, Dana 60 |
Vehicle fitment
It is matched by axle type only, with no vehicle year, make or model. Confirm the Dana 44, Dana 30 Reverse or Dana 60 axle in your vehicle before ordering.
Confirm the housing you are servicing is a front one, then check your vehicle’s year, model and trim before ordering.
What’s included
Only the gasket is described. No other components are named.
