Overview

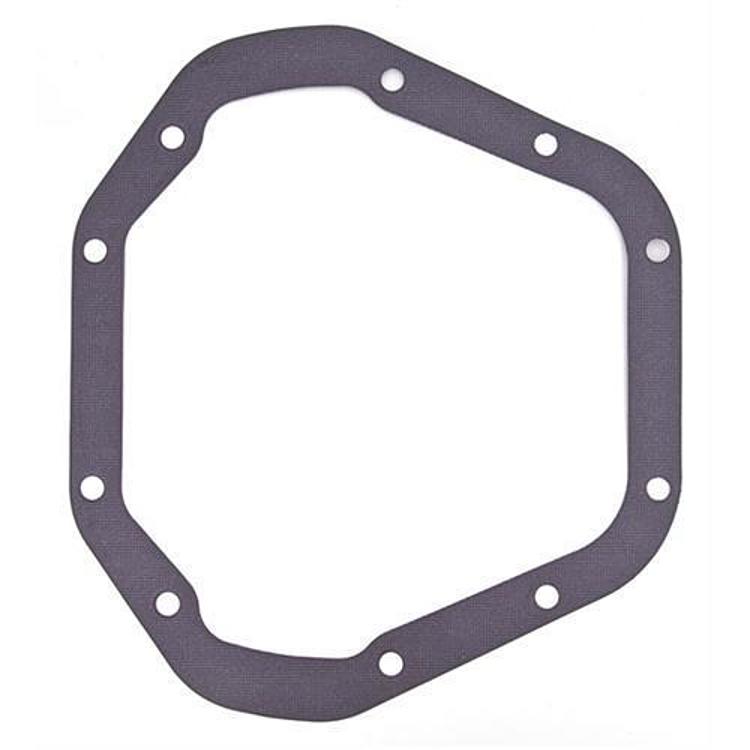

The Dana Spicer 34687 is a factory style replacement differential cover gasket for Dana 60 axles, used to seal the cover to its housing.
A cover gasket seals the differential cover to its housing, so match the gasket to the axle type you are servicing.
Key features
- Factory style replacement design
- It is made for Dana 60 and Dana 61 axle types.
- It fits front and rear axle locations.
- Dana is the listed axle manufacturer
Dana 60 cover service
The Dana 60 is a heavy-duty housing, and its cover holds a large volume of gear oil. A leaking cover gasket often shows up as oil on the housing face or drips under the axle after a long haul. Before replacing it, inspect the cover for warping, the housing flange for nicks, and the cover bolts for stretching or corrosion.
Remove the cover with the fluid drained, clean both faces, and fit a fresh gasket. Avoid extra sealant unless the job calls for it. Tighten the cover bolts evenly, then fill the axle to the correct level. Check for seepage after the first few drives and again after the next fluid change.
- Drain the fluid before lifting the cover
- Inspect the housing flange for nicks
- Check fluid level after the first drives
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 34687 |
| UPC | 70000006732 |
| Component | Differential cover gasket |
| Design | Factory style replacement |
| Axle manufacturer | Dana |
| Axle location | Front and rear |
| Axle types | Dana 60, Dana 61 |
Vehicle fitment
Fit is set by axle type: Dana 60 or Dana 61, at either front or rear locations. Match the gasket to your axle housing before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One gasket is described, and no other parts are named.
