Overview

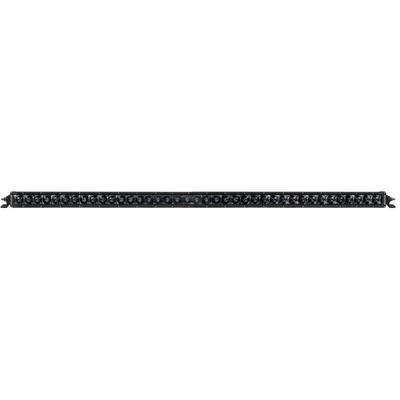

The Rigid Industries SR-Series Pro 40 Inch Light Bar (spot, black, part 940214BLK) is a 40 inch single row bar with a spot beam. The SR-Series PRO LEDs add up to 111 percent more raw lumens than earlier bars, in a low profile design that measures less than 2 inches tall.
The SR-Series PRO uses a single row of LEDs, with a choice of Hybrid or patented Specter optics across a range of beam patterns. The bar projects light at long distances while using very little power. The extruded aluminum housing carries a black powder coated finish, and the bar is sold as a single unit with a clear lens. The bar carries Rigid’s branding, and the PRO LEDs keep the bar’s profile low. The bar is sold individually, so a matching pair takes two separate purchases.
Key features
- Spot beam pattern
- Single row of LEDs
- Choice of Hybrid or Specter optics across the line
- Up to 111 percent more raw lumens.
- Less than 2 inches tall
- Extruded aluminum housing
- Blacked-out circuit boards and new branding
Spot optics and mounting height
A spot pattern concentrates light into a narrow, far-reaching beam, which suits open trails, desert tracks and long straight roads. Pairing it with a flood bar gives both reach and side coverage. Consider the bar’s mounting height, since a low mount aimed level throws the beam far down the road, while a higher mount lights more of the verge.
Low profile bars sit close to the body, so heat and debris need attention. Keep the lens clean, make sure the housing vents are not blocked, and check the mount bolts after rough trips. Use a fused feed and route the wire away from moving suspension parts.
- Pair a spot bar with a flood bar for side light
- Aim level before each trip
- Keep the lens clear of mud and road film
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 940214BLK |
| Light series | SR-Series PRO |
| Size | 40 inch |
| LED row configuration | Single row |
| Beam pattern | Spot |
| Height | Less than 2 inches |
| Lens color | Clear |
| Finish | Black, powder coated |
| Housing | Extruded aluminum |
| Sold as | Single |
Vehicle fitment
This 40 inch spot bar is a universal fit. The SR-Series PRO suits off-road vehicles, industrial equipment, agricultural machines and marine applications, and the mounting location decides where it can go. Measure the mounting space for a 40 inch bar before drilling.
Installation notes
Because the bar is 40 inches long, check the mounting points and the wire route before drilling. Fuse the feed and check local rules for auxiliary spot lights on public roads before use.
What’s included
One 40 inch SR-Series PRO spot light bar. Confirm the harness and bracket you need before ordering.
