Overview

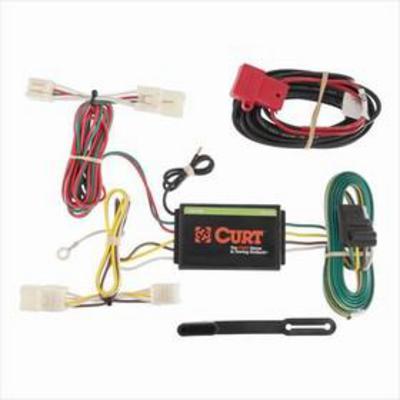

The Curt Manufacturing CRT56165 is a heavy-duty 3-wire wiring T-connector for the 2006–2012 Toyota RAV4 in Base, Limited and Sport trims. It plugs into the factory harness and includes a 4-pin connector. The install time is 45 minutes.
Key features
- Heavy duty construction
- 3-wire system
- Plugs into the factory harness
- 4-pin connector, dust cap and ground wire
- Install time listed at 45 minutes
Towing and heavy-duty wiring
Trailer and accessory loads put more strain on tail light and brake circuits than everyday driving does. A heavy-duty connector is built to handle repeated plugging and unplugging, vibration and changing temperatures, which are common when a vehicle tows. The 3-wire layout also gives each function its own path, which helps when the trailer adds extra lamps that need to work independently.
Keep an eye on the connection after long trips or heavy loads. Warm, dim or discolored plug housings suggest a contact that is overheating. Confirm that the ground screw is still tight and that the dust cover is in place. If you add a trailer or accessory later, check the wiring before connecting, because extra current can overload a circuit that was fine before.
- Check plug housings for heat discoloration after towing
- Keep ground screws tight
- Verify wiring before adding accessories
Specifications
| Brand | Curt Manufacturing |
|---|---|
| Part number | CRT56165 |
| Wiring system | 3-wire |
| Duty | Heavy duty |
| Install time | 45 min |
| Included | 4-pin connector, dust cap, ground wire with self-tapping screw |
Vehicle fitment
It fits the 2006–2012 Toyota RAV4 in Base, Limited and Sport trims.
RAV4 model years outside 2006–2012 are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The listed install time is 45 minutes. The connector plugs into the factory harness, and the ground wire is held by its self-tapping screw.
What’s included
Includes a 4-pin connector, a dust cap and a ground wire with a self-tapping screw.
