Overview

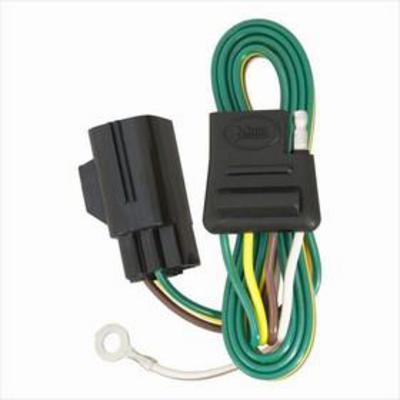

The Curt Manufacturing CRT56159 is a 4-way flat wiring T-connector for the 2012–2015 Land Rover Range Rover Evoque. It plugs into the factory harness and includes a 4-pin connector, dust cap and ground wire. The install time is 5 minutes.
Key features
- 4-way flat connector style
- Plugs into the factory harness
- 4-pin connector with dust cap
- Ground wire with self-tapping screw
- Install time listed at 5 minutes
Working on a modern SUV harness
Modern SUVs route lighting signals through body control modules and shared wiring, so the lamp circuit often carries more information than the bulb alone. A T-connector should sit at the lamp plug only, where it links the factory harness to the lamp. Avoid cutting into shared bundles, since that can disturb systems that depend on the same wires.
Before you open a rear lamp assembly, disconnect the battery and wait for the vehicle systems to settle. Keep the harness routed as it was, use the existing clips, and make sure the plug latches fully. Once the connector is in place, test brake, turn and tail functions together, then check for warning messages on the dash.
- Work only at the lamp plug
- Use existing harness clips when routing
- Test all lamp functions before closing up
Specifications
| Brand | Curt Manufacturing |
|---|---|
| Part number | CRT56159 |
| Connector style | 4-way flat |
| Install time | 5 min |
| Included | 4-pin connector, dust cap, ground wire with self-tapping screw |
Vehicle fitment
It fits the 2012–2015 Land Rover Range Rover Evoque in Autobiography, Autobiography Dynamic, Dynamic, Prestige and Pure trims.
For other Range Rover models, verify year, model and trim against your own vehicle before buying.
Installation notes
Install time is listed at 5 minutes. Connection happens at the factory harness, and the self-tapping screw secures the ground wire.
What’s included
The kit includes a 4-pin connector, a dust cap and a ground wire.
