Overview
The CURT 56406 is a sealed 4-way flat wiring connector for the 2019 Jeep Cherokee. It plugs into the taillight assembly to provide a standard 4-way flat trailer socket that carries the taillight, brake light and turn signal circuits.
The connector is sealed against moisture and extreme weather. The powered tail light converter can be mounted on the exterior of the vehicle, and the kit includes the fuse holder, battery connection wiring and other necessary wiring components.
Key features
- Sealed against moisture and extreme weather
- Converter can be mounted on the vehicle exterior
- Plug-and-play design with no cutting or splicing
- Powered tail light converter
- SMT circuitry for performance and durability
- Battery connection fuse rated at 15 amps maximum
Mounting a converter outside
Placing a converter outside the cabin exposes it to water, road spray and temperature swings, so mounting location matters. Choose a spot that is protected from direct splash and keeps wiring from hanging low where it can catch debris. Position the converter so it can drain and dry rather than trap moisture.
Sealed connectors resist moisture, but they still need routine checks. Look at the seals and the plug housing for cracks, and keep the contacts free of dirt and corrosion. Clips should hold cables firmly without pinching them, leaving some slack so the cable does not stretch when the trailer turns.
- Pick a mounting spot that stays dry and protected
- Let the converter drain rather than trap water
- Use clips that hold without pinching
- Leave slack in cables near the connector
Specifications
| Brand | Curt Manufacturing |
|---|---|
| Part number | CRT56406 |
| Output | 4-way flat |
| Sealing | Sealed off from moisture |
| Converter | Powered tail light converter, exterior mount possible |
| Circuitry | SMT |
| Battery connection fuse | 15-amp maximum |
| Warranty | Limited lifetime (one-year finish, one-year parts) |
Vehicle fitment
It fits the 2019 Jeep Cherokee in Latitude, Latitude Plus, Limited, Overland, Trailhawk and Trailhawk Elite trims.
Only the 2019 model year is listed, so other Cherokee years are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the converter may sit outside the vehicle, choose a mounting spot that keeps the converter and its connections dry and secure. Keep the battery fuse at 15 amps or less.
What’s included

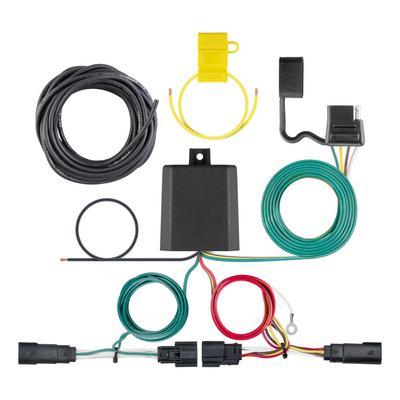

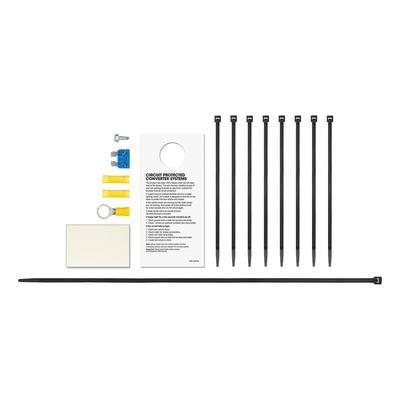

The kit includes the sealed 4-way flat connector, the powered tail light converter, the fuse holder, battery connection wiring and other wiring components.
Not included: Confirm the package contents, including the battery fuse, before installing.
