Overview

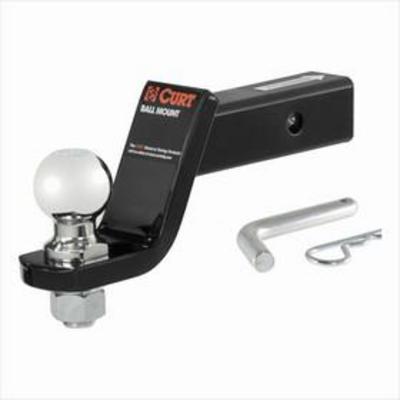

The Curt Manufacturing CRT45042 is a Class III loaded ball mount with a 4 Inch Drop. It lowers the hitch ball for trailers that sit low at the coupler. The ball is permanently attached and the mount has a 1 Inch ball hole.
It is a universal fit mount, so no year, make or model applies. Verify the receiver and the trailer height before towing with a 4 Inch Drop.
Key features
- 4 Inch Drop for lower hitch height
- 1 Inch ball hole
- Permanently attached ball
- Black steel with 2 Inches X 2 Inches shank
Towing with extra drop
A deeper drop lowers the hitch ball, which matters when a trailer coupler sits well below the receiver height. A drop that is too deep can cause the hitch to bottom out on steep driveways or dips, so check the ground clearance of the tow vehicle before setting off. Trailer tongue weight should stay within the receiver’s limits.
Load the trailer and measure again, because cargo shifts the tongue height. Look for bent or cracked welds on the drop section, and replace a mount that shows bends or deep rust rather than trying to straighten it. Re-check the pin and clip after each change in load.
- Measure the trailer height after loading
- Check ground clearance on steep entries
- Inspect the drop bar for bends and cracks
Specifications
| Brand | Curt Manufacturing |
|---|---|
| Part number | CRT45042 |
| Amount of drop or rise | 4 Inch Drop |
| Finish | Black, gloss powder coated |
| Shank size | 2 Inches X 2 Inches |
| Ball hole size | 1 Inch |
| Material | Steel |
| Hitch class | Class III |
Vehicle fitment
Universal fit means this loaded drop mount is not tied to one vehicle. Its shank must match the receiver on the tow vehicle.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Hitch up with the 4 Inch Drop installed and check that the trailer sits level before towing.
What’s included
The loaded ball mount with its permanently attached ball.
Not included: a vehicle receiver hitch.
