Overview

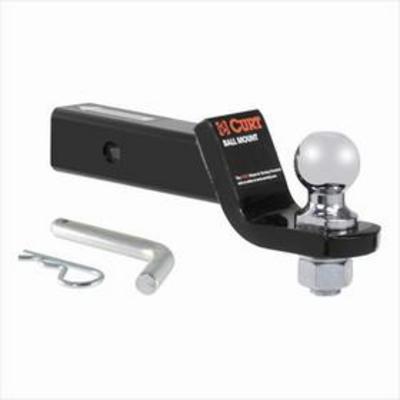

The Curt Manufacturing CRT45036 is a loaded ball mount with a 2 Inch Drop, built to level a trailer behind a tow vehicle. The 1 Inch ball hole fits the ball size this mount is set up for, and the ball stays attached to the mount. The steel body is finished in black.
It is a universal fit mount, so the receiver and shank size decide whether it works for your setup. Check the receiver before buying.
Key features
- 2 Inch Drop design
- 1 Inch ball hole
- Permanently attached ball
- Black powder coated steel
Setting up a level trailer
A loaded ball mount with a drop helps level a trailer when the coupler sits lower or higher than the hitch ball. Measure the height from the ground to the coupler and to the hitch receiver with the trailer on level ground. Those two readings show whether a drop mount, a rise mount or no adjustment is needed.
Before towing, check the receiver tube for rust or cracks and make sure the pin and clip seat fully. Hitch parts carry trailer weight and tongue load, so inspect the weld points and bolts after the first few trips and periodically after that. A bent shank should be replaced rather than straightened.
- Tighten hardware after the first few tows
- Keep the ball and shank free of road grime
- Check the trailer is level after loading
Specifications
| Brand | Curt Manufacturing |
|---|---|
| Part number | CRT45036 |
| Amount of drop or rise | 2 Inch Drop |
| Finish | Black |
| Shank size | 2 Inches X 2 Inches |
| Ball hole size | 1 Inch |
| Material | Steel |
| Hitch class | Class III |
Vehicle fitment
It is a universal fit, so it is not tied to one vehicle. The 2 Inches X 2 Inches shank must match the receiver.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The loaded ball mount with its permanently attached ball.
Not included: a vehicle receiver hitch.
