Overview

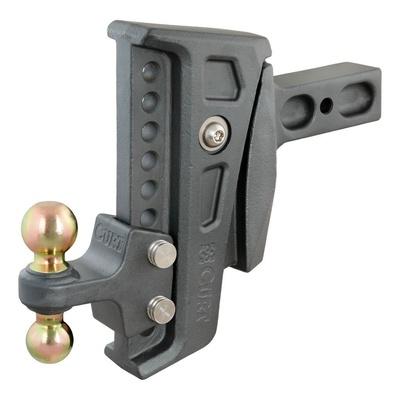

The CRT45955 is a Rebellion XD adjustable ball mount with a 2-1/2 inch shank, made for class 5 receiver hitches. Its ShockDrop cushion isolator sits between the receiver shank and the vertical shank to absorb jerking, jarring, rattling and trailer sway. It offers benefits similar to a sway control hitch.
The shank adjusts up or down for a maximum drop of 8 inch and a maximum rise of 1 inch. It has no airbags or bearings, so there is little to service. It suits pickups and SUVs, including larger trucks, diesels and lifted trucks, and it is comparatively light for a cushioned mount.
Key features

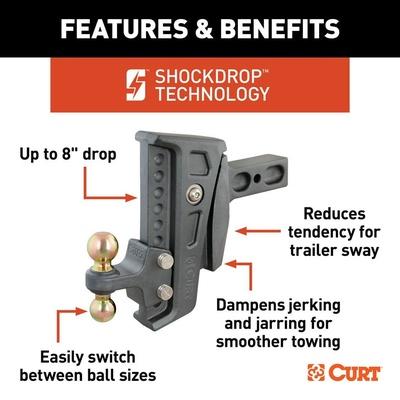

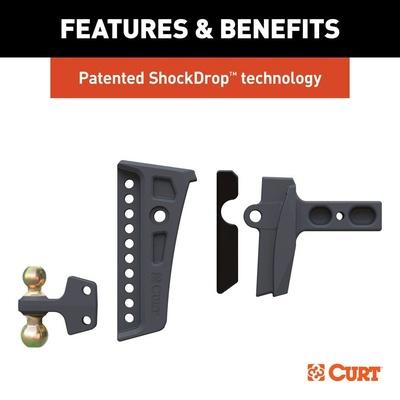

- ShockDrop cushion isolator between receiver shank and vertical shank

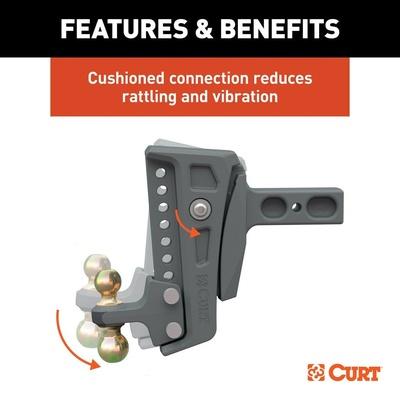

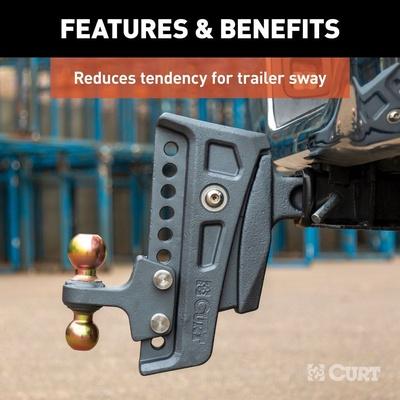

- Resists rattling at the coupling point and offers benefits similar to a sway control hitch
- No airbags or bearings, and no anti-rattle pin or shim needed
- Adjustable shank with 8 height adjustment positions

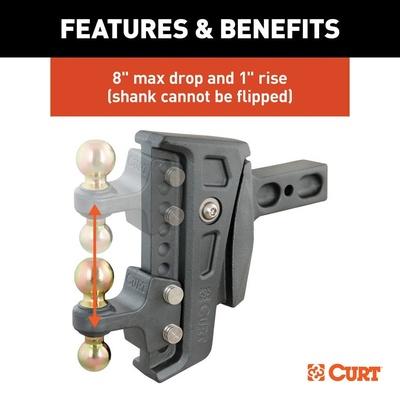

- Maximum drop 8 inch and maximum rise 1 inch; the shank cannot be flipped to rise
- Cast steel construction with a 2-1/2 inch shank

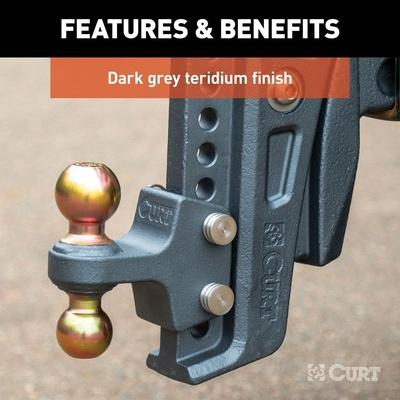

- Textured dark grey teridium finish that resists rust and corrosion
Drop and rise planning
Adjustable shanks let you match ball height to the trailer coupler, but the drop has to be measured with the trailer hitched and level. Measure from the top of the receiver to the coupler on level ground, then choose the adjustment position that brings the trailer closest to level. A larger drop can reduce ground clearance on the tow vehicle, so consider how the setup will look on rough roads.
A cushion hitch works best with the shank set so the isolator is not pushed to its travel limit. Check the setup after the first trip, since road vibration can shift the shank. Keep the rating of the lowest component in mind when setting height, and check the hardware for cracks or wear before each trip.
- Measure coupler height with the trailer level
- Set the height before loading the trailer
- Recheck the pins after the first few miles
Specifications
| Brand | Curt Manufacturing |
|---|---|
| Part number | CRT45955 |
| Receiver class | Class 5 |
| Shank size | 2-1/2 inch x 2-1/2 inch |
| Maximum drop | 8 inch |
| Maximum rise | 1 inch |
| Height adjustment positions | 8 |

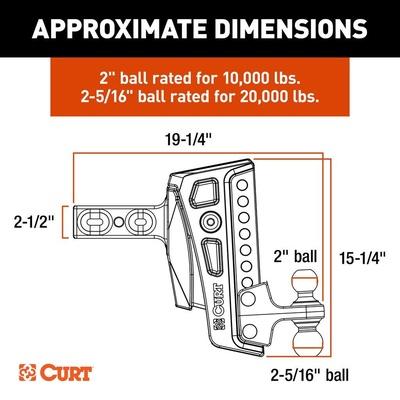

| Rating | 10,000 lbs with 2 inch ball; 20,000 lbs with 2-5/16 inch ball, limited to lowest-rated towing component |
| Material | Cast steel |
| Finish | Textured dark grey teridium |
| Fitment | Universal fit |
Vehicle fitment
Universal fit, so the 2-1/2 inch receiver size decides fit rather than the vehicle. Confirm your vehicle’s year, model and trim before ordering.
Ball mounts with a 2 inch shank are separate parts and are not interchangeable with this 2-1/2 inch shank. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Mount it onto the 2-1/2 inch receiver like any other ball hitch. The ShockDrop isolator is built in, so no anti-rattle pin or shim is added. Because the rating is limited to the lowest-rated towing component, check the receiver and hitch ratings before towing.
What’s included
The Rebellion XD adjustable ball mount with its dual ball and 2-1/2 inch shank. No other hardware is described.
