Overview

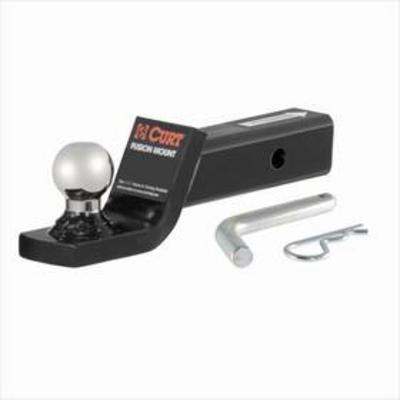

The Curt Manufacturing CRT45131 is a Class III fusion drop mount with a 2 Inch Drop, made to level a trailer with the tow vehicle. A drop mount lowers the hitch ball so the trailer rides level once hooked up. This version has a permanently attached ball, so the ball stays on the mount instead of getting lost.
It is a universal fit mount, so it is not built for one year, make or model. Its 2 Inches X 2 Inches shank has to match the receiver opening on your vehicle.
Key features
- Permanently attached ball that stays with the mount
- 2 Inch Drop to level a trailer
- Gloss black powder coated finish
- Steel construction
- 2 Inches X 2 Inches shank
Leveling with a fusion mount
Fusion mounts bring a trailer level by dropping the hitch ball to match the coupler height. The permanently attached ball means you do not have to store a separate ball, and it stays on the mount for each trip. This keeps the setup simple, though the fixed ball hole means the mount is not suited to swapping between ball sizes.
Before using a drop mount, measure the trailer and vehicle height on level ground. Check that the mount sits square in the receiver and that the pin is fully engaged. Look over the powder coat for chips, since exposed steel is more prone to rust.
- Level the trailer after hookup
- Check the pin is fully seated
- Inspect the powder coat for chips
Specifications
| Brand | Curt Manufacturing |
|---|---|
| Part number | CRT45131 |
| Amount of drop or rise | 2 Inch Drop |
| Finish | Black, gloss powder coated |
| Shank size | 2 Inches X 2 Inches |
| Ball hole size | Fixed |
| Material | Steel |
| Hitch class | Class III |
Vehicle fitment
It is a universal fit mount, so it is not tied to specific vehicles. Use it with a receiver that accepts a 2 Inches X 2 Inches shank.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
After the mount is in the receiver, hitch up and check that the trailer sits level before towing.
What’s included
The drop mount with its permanently attached ball.
Not included: a vehicle hitch receiver, which the mount needs in order to attach.
