Overview

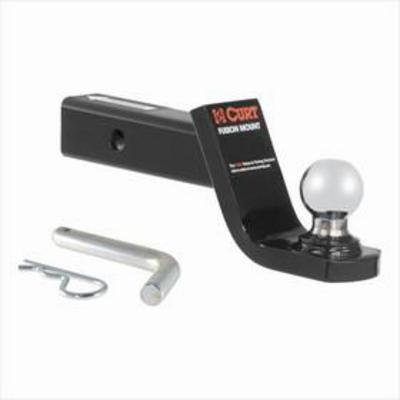

The Curt Manufacturing CRT45154 is a Class III fusion drop mount with a 4 Inch Drop. It lowers the hitch ball four inches below the receiver so a trailer can sit level. The ball is permanently attached to the mount, which prevents it from being lost.
It is a universal fit, so the receiver on your vehicle decides whether it works. A 4 Inch Drop sits deeper than the 2 Inch versions, so check trailer height before towing.
Key features
- 4 Inch Drop for deeper hitch height
- Permanently attached ball
- Gloss black powder coat over steel
- 2 Inches X 2 Inches shank
Setting up a drop hitch
A drop mount lowers the hitch ball below the receiver, which suits trailers whose coupler sits higher than the hitch. The deeper the drop, the more the mount sticks out from the vehicle, so ground clearance and the rear bumper area should be checked before hooking up.
Drop mounts put more stress on the bend area when a heavy trailer is attached. Start with the trailer loaded as it will tow, then measure whether the trailer sits level. If the nose is too high or too low, adjust the setup rather than adding extra height.
Look over the drop bend and welds regularly for cracks or rust, especially after rough roads. Keep the ball clean, check it is tight on the mount before each trip, and replace the mount if the steel shows deep damage.
- Check ground clearance at full drop
- Measure trailer level after each hookup
- Inspect the drop bend for cracks
Specifications
| Brand | Curt Manufacturing |
|---|---|
| Part number | CRT45154 |
| Amount of drop or rise | 4 Inch Drop |
| Finish | Black, gloss powder coated |
| Shank size | 2 Inches X 2 Inches |
| Ball hole size | Fixed |
| Material | Steel |
| Hitch class | Class III |
Vehicle fitment
Universal fit means this drop mount is not tied to one vehicle. Its 2 Inches X 2 Inches shank has to fit the receiver on your tow vehicle.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
With a 4 Inch Drop, hitch up and check that the trailer sits level before towing, since the drop changes the hitch height.
What’s included
The drop mount with its permanently attached ball.
Not included: a receiver hitch.
