Overview

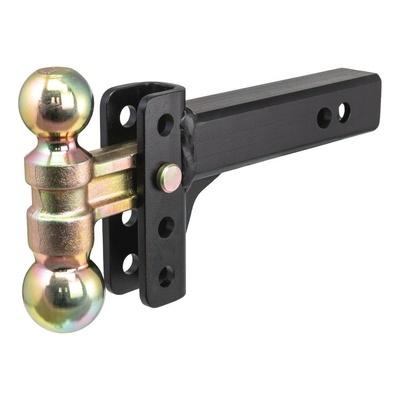

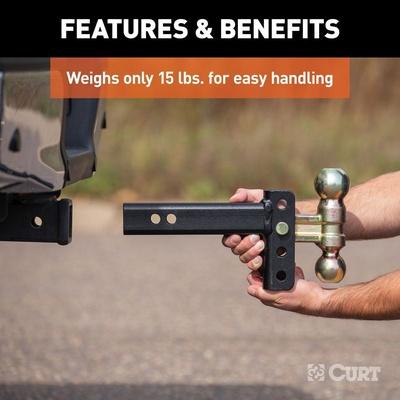

The Curt Manufacturing CRT45903 is a slim adjustable channel mount with a dual ball head, built for towing several trailer types without swapping ball mounts. It is a light-duty mount that weighs 15 pounds, with a standard receiver shank and a multi-level channel.

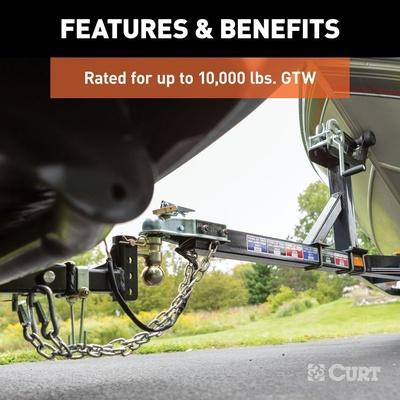

The mount is rated for a maximum gross trailer weight of 8,000 pounds with the 2 inch ball and 10,000 pounds with the 2-5/16 inch ball. It is built from high-strength forged steel, and its 2 inch shank fits any 2 inch x 2 inch receiver hitch. The shank is finished with a carbide black powder coat, and the dual ball has a yellow zinc finish.
Key features

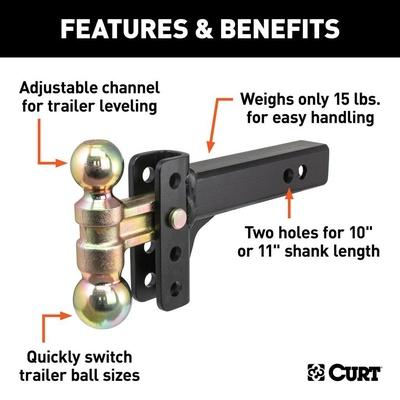

- Dual-ball head with 2 inch and 2-5/16 inch trailer balls

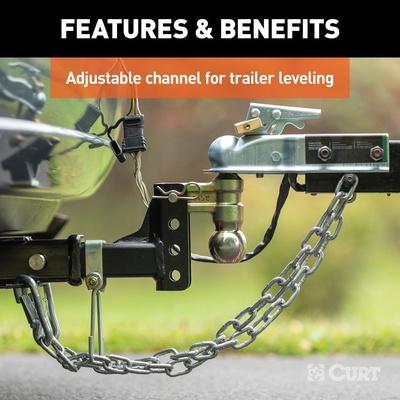

- Multi-level channel and standard receiver hitch shank
- Shank with two hitch pin holes that adjust length from 10 inch to 11 inch
- Maximum drop 3-3/4 inch; can be flipped for a maximum rise of 3-1/2 inch
- Forged steel construction, with each design put through strict testing
- Carbide black powder coat resists rain, snow, dirt and road salt

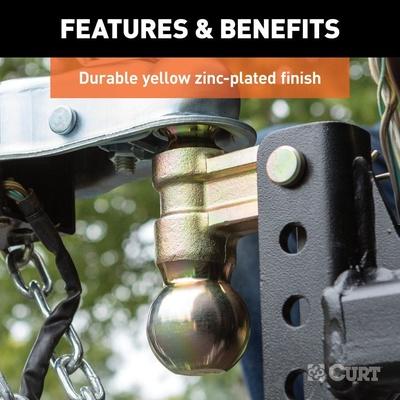

- Dual ball has a yellow zinc finish for rust resistance
Choosing and checking the setup
A channel mount is the link between the receiver and the trailer, so its condition affects how the whole rig tracks and stops. When choosing a dual ball head, match the ball to the coupler on the trailer before you hitch up. A shank that sits too low can scrape on driveways and dips, while one that rides too high can leave the trailer nose level off. Adjusting the shank length and the drop or rise is usually the simplest way to level the trailer.
Over time, the pin holes, the shank and the ball can wear, especially where road salt and grit collect. Inspect the ball for flat spots, cracks or loose fasteners, and check the hitch pin for bending before each trip. Keep the powder coat intact around the channel, since bare metal is where corrosion usually starts. Re-tighten the hitch pin and the ball nut after the first few trips with a new setup.
- Match the ball size to the trailer coupler
- Check the hitch pin and clip before each trip
- Inspect the powder coat for chips and rust spots

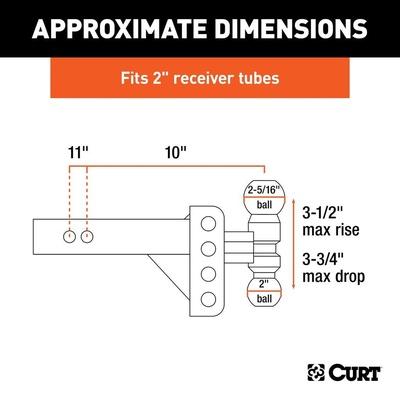

Specifications
| Brand | Curt Manufacturing |
|---|---|
| Part number | CRT45903 |
| Mount type | Adjustable channel mount |
| Ball head | Dual ball, 2 inch and 2-5/16 inch |
| Shank size | 2 inch |
| Shank length adjustment | 10 inch to 11 inch |
| Maximum drop | 3-3/4 inch |
| Maximum rise | 3-1/2 inch |
| Weight | 15 pounds |
| Gross trailer weight capacity | 8,000 pounds with 2 inch ball; 10,000 pounds with 2-5/16 inch ball |
| Material | Forged steel |
| Finish | Carbide black powder coat (shank); yellow zinc (dual ball) |
| Fitment | Universal fit |
Vehicle fitment
It is a universal fit channel mount, matched by its 2 inch x 2 inch receiver and the trailer coupler rather than a specific vehicle. Confirm fit for your vehicle’s year, model and trim before ordering.
The shank length of 10 inch to 11 inch sets rear clearance, so check it against your rear bumper and spare tire before installing. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The head attaches to the shank with the included hitch pin. Use the two hitch pin holes to set the shank length, then check drop or rise for coupler height. Stay within the lowest-rated towing component’s weight rating, which is 8,000 pounds on the 2 inch ball and 10,000 pounds on the 2-5/16 inch ball.
What’s included
The slim adjustable channel mount with its dual ball head and included hitch pin.
