Overview

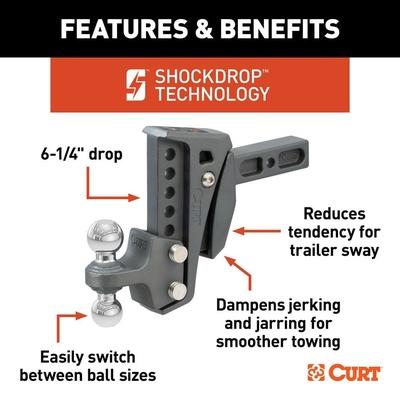

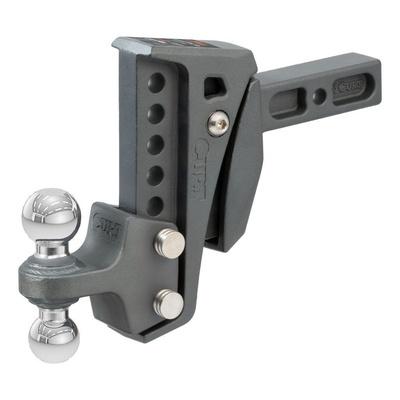

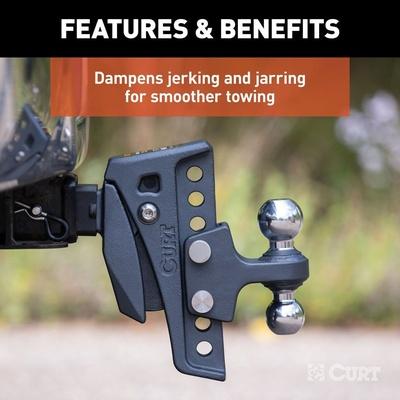

The Curt Manufacturing CRT45951 is a Rebellion XD adjustable cushion hitch ball mount that uses ShockDrop technology to reduce jerking, jarring and rattling between the trailer and tow vehicle. A cushioned isolator sits between the receiver shank and the vertical shank and adapts to the coupling point as the trailer moves.
The mount uses ShockDrop cushioning to reduce trailer jerking, jarring and rattling. It has no airbags or bearings, so there is little to maintain. It suits pickup trucks and SUVs, including larger trucks, diesels and lifted trucks. The dual ball adjusts up or down, and six height positions help keep the trailer level.
Key features

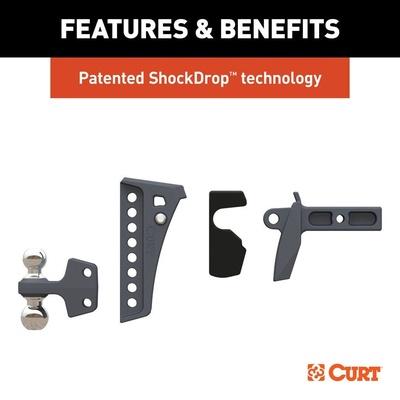

- ShockDrop cushion isolator between the receiver shank and vertical shank

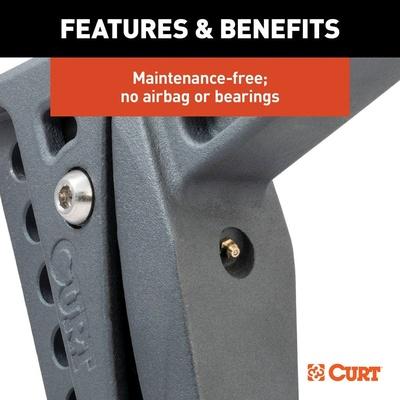

- No airbags or bearings, so the unit is virtually maintenance-free
- No anti-rattle hitch pin or anti-rattle shim needed

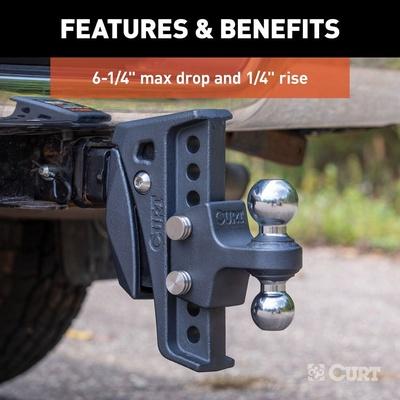

- Dual ball adjustable up or down for a maximum drop of 6 inch

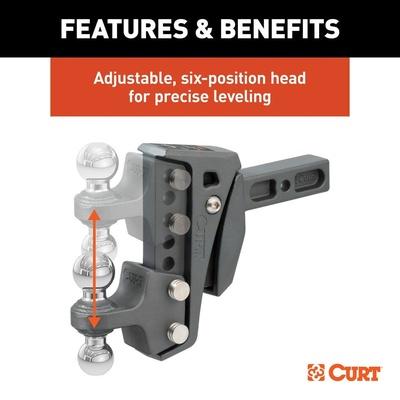

- Six height adjustment positions for level towing
- Shank cannot be flipped to a rise position
- Cast steel construction with a 2 inch x 2 inch shank
- Textured dark grey teridium finish that resists rust and corrosion
Living with a cushion hitch

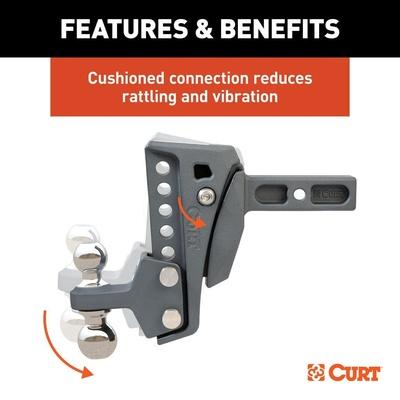

A cushion hitch works by letting the ball move slightly against its isolator, which reduces the jolts that travel from the trailer into the tow vehicle. The isolator is the part to watch. Over time it can compress, crack or take a set, which changes how the hitch feels on the road and how the trailer sits.
Check the isolator and welds at regular intervals, especially after rough off-road trips. Keep the receiver and coupler ratings in mind, because the lowest-rated part sets the limit. When a cushion hitch is replaced, make sure the new unit matches the shank size and height range, so the trailer stays level.
- Look for cracks or flattening in the isolator
- Check the receiver pin and clip before towing
- Keep the ball and coupler sizes matched
Specifications
| Brand | Curt Manufacturing |
|---|---|
| Part number | CRT45951 |
| Shank size | 2 inch x 2 inch |
| Maximum drop | 6 inch |
| Rise | Not available; shank cannot be flipped |
| Height adjustment positions | 6 |
| Rating | 10,000 lbs with 2 inch ball; 15,000 lbs with 2-5/16 inch ball, limited to lowest-rated towing component |
| Material | Cast steel |
| Finish | Textured dark grey teridium |
| Fitment | Universal fit |
Vehicle fitment
Universal fit. It attaches to a standard 2 inch receiver, so the receiver on your tow vehicle determines whether it works. Confirm your vehicle’s year, model and trim before ordering.
The 2-1/2 inch shank version is a separate part and is not interchangeable with this 2 inch shank. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Mount it onto the 2 inch receiver like any other ball hitch. The ShockDrop isolator is built in, so no anti-rattle pin or shim is added. The rating is limited to the lowest-rated towing component, so check the receiver and coupler ratings before towing.
What’s included
The Rebellion XD adjustable cushion hitch ball mount with its dual ball and 2 inch x 2 inch shank. No other hardware is described.
