Overview

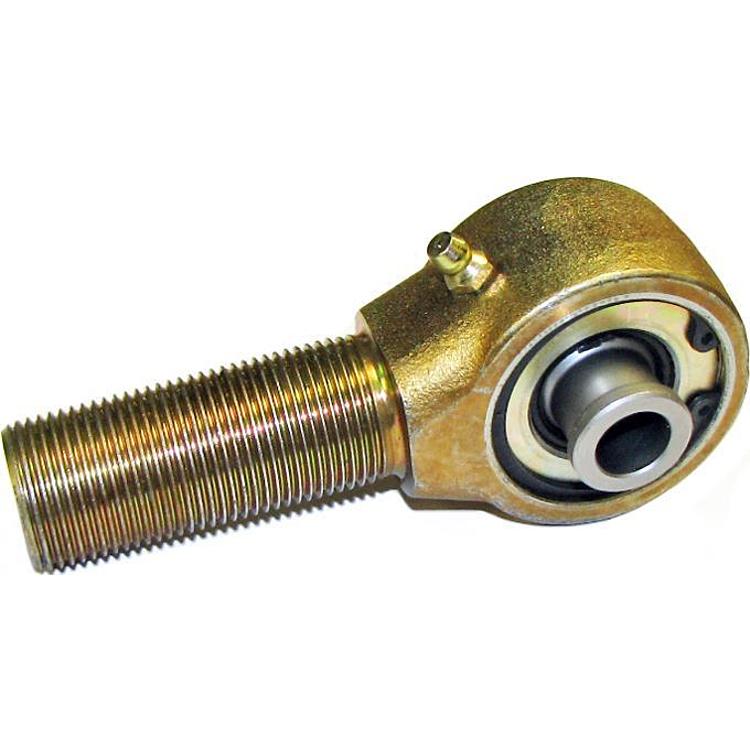

The Currie CE-9112NL-12 is a narrow forged Johnny Joint with 40 degrees of overall articulation travel. Its forged rod end design is presented as universal fit, with no vehicle named.
Key features
- Forged rod end
- Narrow style body
- 40 degrees of overall articulation
- It uses Currie’s exclusive design.
How a Johnny joint works
A Johnny joint is a flex joint placed in a linkage so a rod can swing through an angle without binding. Off-road, it lets an axle move over uneven ground while the bars it connects keep their geometry. Because the joint absorbs that movement, the mounts and bars see less side load than they would from a rigid link.
When choosing a joint, stud diameter, thread, housing bore and overall length matter as much as articulation figures. A narrow body helps clear brackets and frame rails, but full travel should still be checked by hand before the linkage is assembled. Check the joint at full lock and full compression to confirm nothing contacts the body.
- Check thread direction and stud size before fitting
- Inspect boots and seals for cracks at each service
- Re-torque jam nuts after the first few trail runs
Specifications
| Brand | Currie |
|---|---|
| Part number | CE-9112NL-12 |
| UPC | 700006826778 |
| Articulation travel | 40 degrees, overall |
| Construction | Forged, narrow style |
Vehicle fitment
This joint is a universal fit with no particular model, years or chassis code. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
