Overview

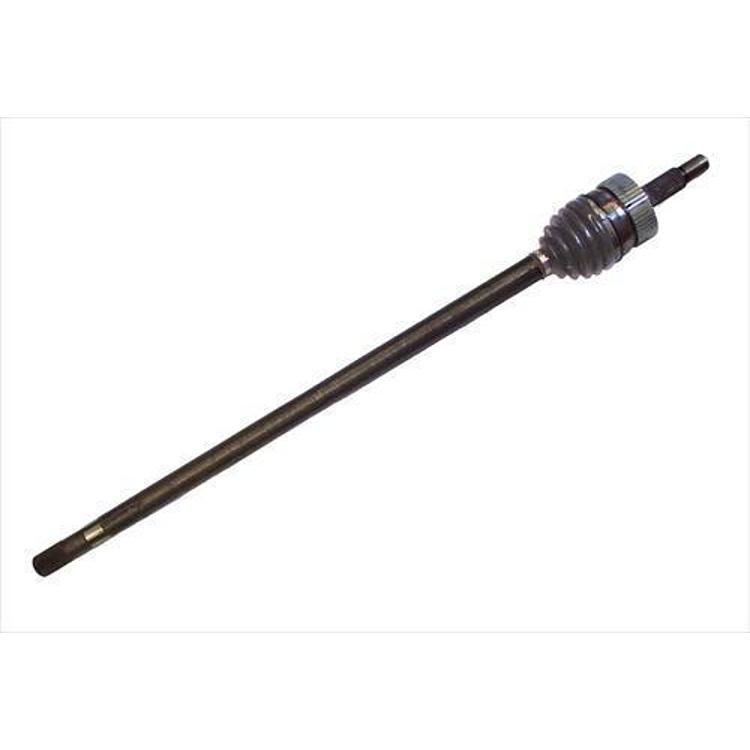

The Crown Automotive 4720380 is a Dana 30 Reverse front CV axle shaft assembly for the passenger side of the 1993–1998 Jeep Grand Cherokee ZJ. Its constant-velocity joints let the shaft keep driving while the front wheels turn, and it installs in the front right position with 27 splines.
The axle type is Dana 30 Reverse and the shaft is a passenger side assembly. It is a direct fit for the 1993–1998 Grand Cherokee ZJ, with no modification expected. The reverse designation separates it from the Dana 30 shafts used in the WJ Grand Cherokee and the Wranglers, which use other part numbers. A C/V assembly is typically chosen when the front axle shaft has failed at the joint or boot, since it includes joint hardware that a plain shaft lacks.
Key features
- Passenger side front axle shaft assembly
- C/V type
- Dana 30 Reverse front axle
- 27 splines
- Classed by Crown Automotive as a direct fit
Replacing a worn CV shaft
A constant-velocity shaft transfers power through its joints while the steering angle changes, so wear shows up first at the inner and outer joints. The boot is the usual weak point. Once it splits, grease escapes and dirt enters, and the joint can begin to click on turns or vibrate under acceleration.
When choosing a replacement, match the axle type, side and spline count to the existing shaft, since a shaft from another Dana axle may look similar but will not seat correctly. Replacing the shaft often makes sense together with a check of the inner seal at the transfer case or axle end, which is easiest to inspect while the shaft is out.
- Clicking on tight turns
- Grease spray on the inside of the wheel
- Vibration under acceleration
- Play at the wheel hub
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 4720380 |
| UPC | 848399006629 |
| Axle manufacturer | Dana |
| Shaft location | Passenger Side Assembly |
| Axle position | Front |
| Axle type | Dana 30 Reverse |
| Position | Front Right |
| Spline count | 27 Splines |
| Design | C/V type |
Vehicle fitment
Crown Automotive names one vehicle for the 4720380.
- 1993–1998 Jeep Grand Cherokee (ZJ) (5.9 Limited, Base, Laredo, Limited, Orvis, SE, TSi)
Coverage is the 1993–1998 Grand Cherokee ZJ only. The WJ that followed it, the Cherokee and the Wranglers need different shafts. Confirm your vehicle’s year, model and trim before ordering.
