Overview

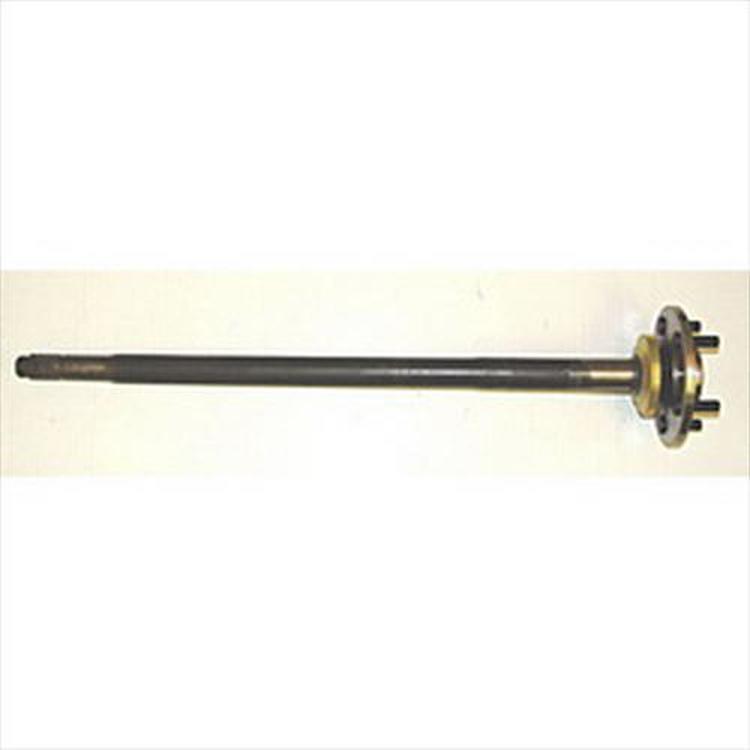

The Omix-ADA 16530.59 is a Dana 35 passenger-side rear axle shaft, 29.00 inch long with 27 splines, for 1993–1998 Jeep Grand Cherokee (ZJ) models with ABS rear disc brakes.
The 16530.59 is a passenger side Dana 35 rear axle shaft and the shorter of the two ZJ rear shafts. It is a direct OE replacement with a limited five-year warranty, made for the Dana 35 rear axle.
Because ZJ rear axle shafts differ in length from side to side, the length matters when choosing between this part and the driver side one. This shaft measures 29.00 inch and has 27 splines, for the Dana 35 rear axle with ABS rear disc brakes. Its vehicle list begins in 1993, a little earlier than the driver side shaft. Omix-ADA gives no material or strength details, so expect a stock-style replacement.
Key features
- Dana 35 rear axle shaft
- Passenger side per title
- 29.00 inch long
- 27 splines
- For ABS rear disc brake models
- Wider year range than the driver-side part
Fitting a ZJ rear shaft
ZJ rear shafts differ in length from side to side, so a shaft should be matched by length, not by side alone. Checking the old shaft against the new one before assembly prevents a shaft that is too short from failing to reach the hub, or one that is too long from binding. The ABS sensor and rear disc brake parts should be checked at the same time.
Clean the flange and the hub face, and inspect the axle bearing and seal before assembly. A worn seal can let gear oil reach the brake parts, so replacing it during the job helps avoid a later problem. Keep the new shaft clean, and check the wheel fasteners after the first drive.
- Compare length against the old shaft
- Clean the flange and hub face
- Check the ABS sensor and tone ring
- Inspect the axle seal for oil leaks
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 16530.59 |
| UPC | 804314031718 |
| Part type | Rear axle shaft |
| Axle | Dana 35 |
| Axle location | Rear |
| Side | Passenger (per title) |
| Length | 29.00 inch |
| Spline count | 27 splines |
| Brakes | ABS rear disc brakes |
Vehicle fitment
It fits the 1993–1998 Jeep Grand Cherokee (ZJ).
Confirm your vehicle’s year, model and trim before ordering, since fit is confirmed only for 1993–1998 Grand Cherokee ZJ models.
Installation notes
Compare the 29.00 inch length with the shaft you remove, since the ZJ uses different lengths on each side.
