California Supertrucks Gen III Tie Rod Kit – CSS-C24-16

California Super Trucks

Shop GMC Sierra 3500 HD Tie Rod Ends on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2011–2018 Chevrolet Silverado and GMC Sierra 2500 HD and 3500 HD trucks, with the trims listed in the fitment section
  • Part number CSS-C24-16, UPC 700007534271
  • Center section 1 inch thicker than O.E., CNC machined from solid 1 3/8 inch 17-4 stainless steel
  • Forged ends with manganese phosphate coating, over-sized 3/4 inch threaded adjuster, replaceable inner and outer ends
  • Approved for stock height or lifted applications

Description

Overview

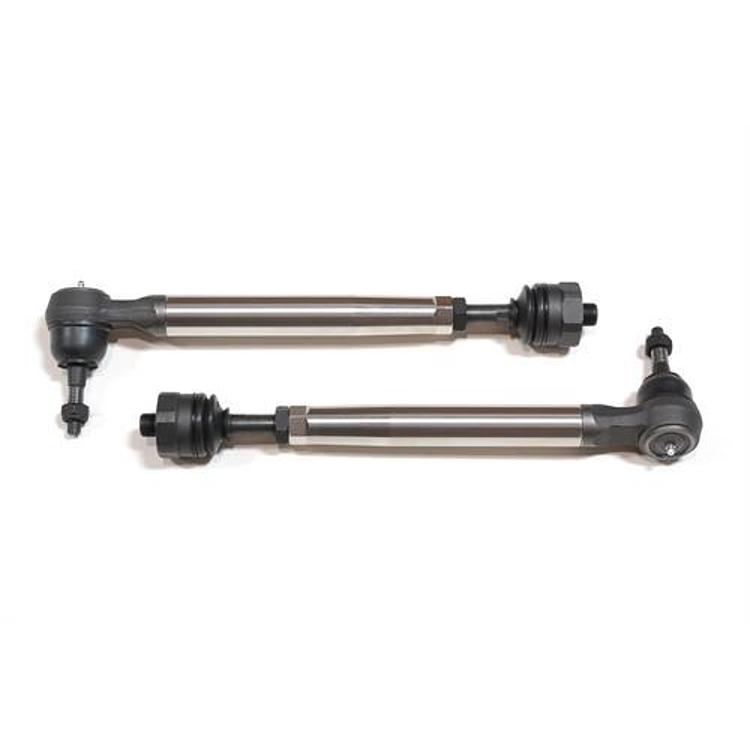

The California Super Trucks CSS-C24-16 is a Gen III front tie rod kit for 2011–2018 Chevrolet Silverado and GMC Sierra 2500 HD and 3500 HD trucks. It is approved for stock height or lifted applications and has a center section one inch thicker than original equipment (O.E.).

The center section is CNC machined from a solid piece of 1 3/8 inch 17-4 stainless steel, and the forged ends carry a manganese phosphate coating for weather resistance. Extra travel in the inner and outer joints is designed to prevent binding on lifted trucks. The kit is designed in the U.S.A. to ISO 9001/QS9000 and ISO/TS16949 standards.

Key features

  • Heavy duty center section, CNC machined from a solid piece of 1 3/8 inch 17-4 stainless steel
  • Center section 1 inch thicker than O.E.
  • Forged ends with manganese phosphate coating for weather resistance
  • Extra travel in the inner and outer joints to prevent bind on lifted applications
  • Over-sized 3/4 inch threaded adjuster
  • Greasable outer tie-rod end and pre-greased inner tie-rod end
  • Replaceable inner and outer ends to reduce maintenance costs
  • Neoprene boots keep the pivots clean and dry
  • Designed in the U.S.A. to ISO 9001/QS9000 and ISO/TS16949 standards

Tie rods on lifted trucks

On a lifted truck the tie rods run at a steeper angle and carry more load through the steering geometry. A heavier center section and joints with extra travel help keep the linkage from binding as the suspension moves through its range. Any change in ride height also changes toe, so the alignment should be rechecked after the kit is installed.

The drag link, pitman arm and steering stabilizer work with the tie rods, and they are often inspected at the same time. Worn parts in that chain can make a new tie rod kit feel loose, so checking for play at every joint is good practice before a lift is driven hard off road.

An adjuster that threads smoothly makes toe setting easier. Lubricate the greasable joints as the service schedule calls for, and inspect the neoprene boots for splits, since dirt in a joint speeds up wear.

  • Check the drag link ends for play
  • Confirm the adjuster locks firmly after toe is set
  • Look for rubbing between the tie rods and the frame or wheel

Specifications

Brand California Super Trucks
Part number CSS-C24-16
UPC 700007534271
Position Front
Fitment type Direct fit
Center section Solid 1 3/8 inch 17-4 stainless steel, CNC machined, 1 inch thicker than O.E.
Ends Forged, manganese phosphate coated
Adjuster Over-sized 3/4 inch threaded
Lubrication Outer end greasable, inner end pre-greased
Boots Neoprene
Standards ISO 9001/QS9000, ISO/TS16949

Vehicle fitment

It fits 2011–2018 Chevrolet Silverado 2500 HD and 3500 HD trucks in High Country, LT, LTZ and WT trims, and GMC Sierra 2500 HD and 3500 HD trucks in Base, Denali, SLE, SLT and WT trims. It is a direct fit for these trucks.

1500-series Silverado and Sierra trucks, and model years outside 2011–2018, are not covered. Confirm fit for your vehicle’s year, model and trim before buying.

What’s included

The kit is a tie rod assembly with a center section, forged inner and outer tie-rod ends, and neoprene boots. Check the package against your installation plan before starting.

SKU: CSTCSS-C24-16 Category:

Specification

Shipping weight 22.00 lbs
Package dimensions 17.00 × 6.00 × 2.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 2500 HD2011–2018High Country, LT, LTZ, WT
Chevrolet Silverado 3500 HD2011–2018High Country, LT, LTZ, WT
GMC Sierra 2500 HD2011–2018Base, Denali, SLE, SLT, WT
GMC Sierra 3500 HD2011–2018Base, Denali, SLE, SLT, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the CSS-C24-16 fit a 2011–2018 Chevrolet Silverado 2500 HD?

Yes. It fits the 2011 through 2018 Silverado 2500 HD in High Country, LT, LTZ and WT trims. Confirm your model year and trim before ordering, since fit is limited to these trims.

Does this tie rod kit fit a Silverado 1500 or Sierra 1500?

The kit is designed for the 2500 HD and 3500 HD models of the Silverado and Sierra for 2011 through 2018. Confirm fit for your vehicle's year, model and trim before ordering.

Is the California Super Trucks Gen III tie rod kit made for lifted trucks?

Yes. It is approved for stock height or lifted applications. Its inner and outer joints have extra travel to help prevent binding on lifted trucks.

What is the part number and UPC for this tie rod kit?

The part number is CSS-C24-16 and the UPC is 700007534271. The kit is from California Super Trucks. Compare the included parts with your own needs before ordering.

Should the drag link be replaced along with a tie rod kit?

Not always. Inspect the drag link ends and the steering stabilizer when the kit goes in. If either shows play, replace it at the same time so the steering linkage stays tight and the new kit is not worn by a loose partner.
