Overview
The Bilstein F4-SE5-C765-H0 is a 2 inch front lift kit for the Ford F-250 and F-350 Super Duty from 2005 to 2016. It includes lift coil springs and a pair of 5100 series shock absorbers, along with the hardware to install them.
The B8 5112 suspension is a high performance leveling kit that adds ground clearance, allows larger tires and increases wheel travel. It bolts into the factory locations with no modifications.
Key features
- 2 inch front lift
- Two B8 5100 series shock absorbers, one per front side
- Two matched lift coil springs
- Bolts into factory mounting locations
- It provides a smooth and stable ride on and off road.
- Adjustable track bar recommended
Before you install
A front lift changes the geometry of the steering and suspension, so the work goes best when the old components are checked first. Look at the ball joints, tie rod ends, control arm bushings and the front differential mounts while the wheels are off. Worn parts left in place can make new springs and shocks feel loose or noisy, and they are easier to replace during the same job.
Trucks that carry trailers or heavy loads put extra stress on the front end, so think about how the vehicle is used before choosing components. Parts that are often replaced alongside a lift include the track bar, sway bar links and brake hoses, which may need more length once the ride height changes. Clean, dry mounting surfaces help the hardware hold torque over time.
- Check ball joints and tie rod ends for play
- Inspect control arm bushings for cracks
- Recheck lug nut torque after the first drive
- Look for leaks at the shock fittings
Specifications
| Brand | Bilstein |
|---|---|
| Part number | F4-SE5-C765-H0 |
| UPC | 651860563688 |
| Lift | 2 inch front |
| Position | Front |
| Shocks | 5100 series shock absorbers |
| Springs | Lift coil springs |
Vehicle fitment
It fits the Ford F-250 Super Duty and F-350 Super Duty from 2005 to 2016. Earlier F-250 and F-350 models and Super Duty years after 2016 fall outside this kit’s fit range.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
An adjustable track bar is recommended with this lift, and the front alignment should be checked after the springs and shocks are installed.

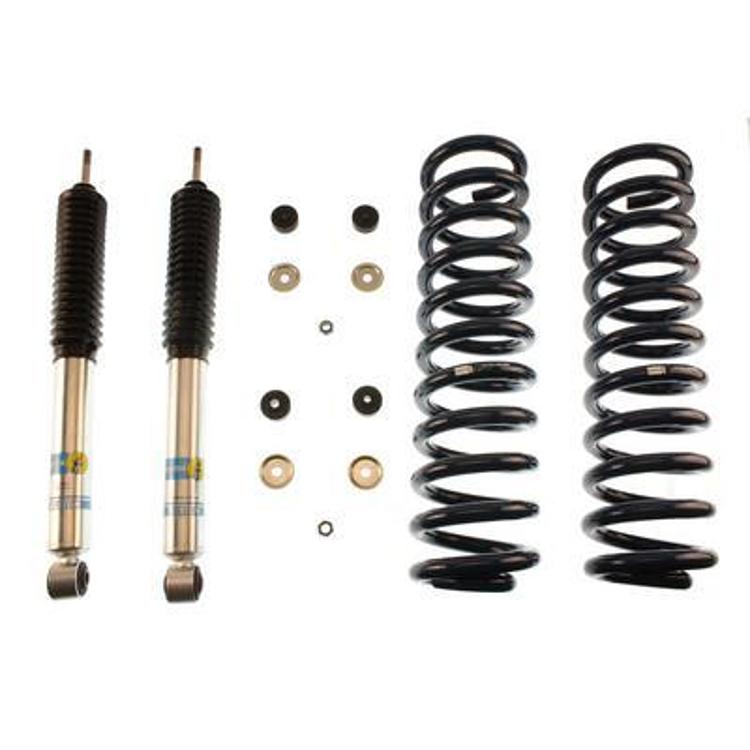

What’s included
Included: lift coil springs, 5100 series shock absorbers and the mounting hardware.
