Overview

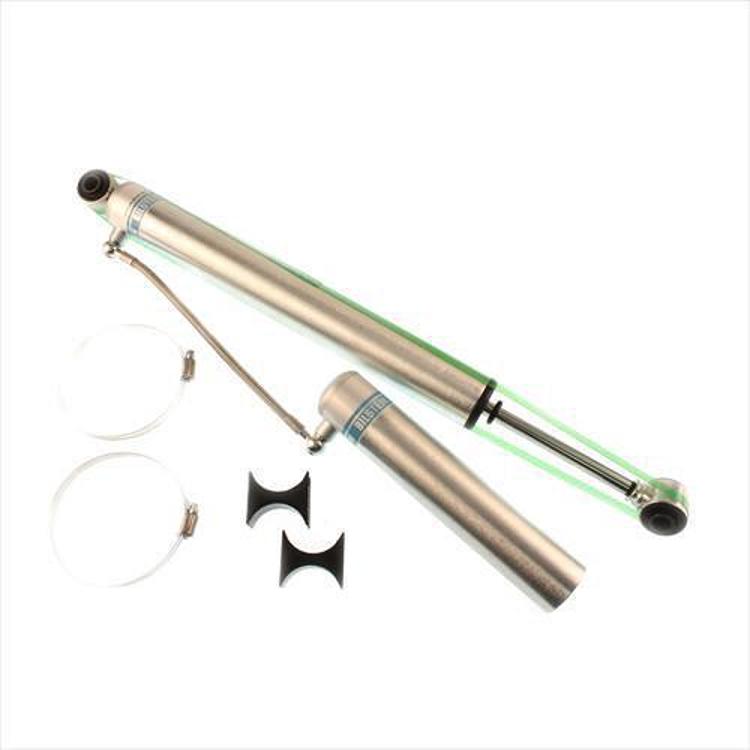

The Bilstein 25-197761 is a rear 5160 Series monotube shock with a remote reservoir, sold as a direct-fit unit for a 3 to 4 in. lift. Confirm the match for your vehicle before ordering.
The monotube body carries a 46mm digressive piston with self-adjusting deflective disc valving. The reservoir increases cooling capacity and shock travel, and the direct-fit design avoids the custom fabrication high performance reservoir shocks often need.
Key features
- Monotube body carrying a 46mm digressive piston
- Self-adjusting deflective disc valving
- Remote reservoir that Bilstein credits with more cooling capacity
- Extra shock travel from the reservoir design
- Direct-fit approach meant to skip custom fabrication
- Zinc plated finish
Reservoir placement on rear shocks
On a rear shock, the reservoir has to clear the axle, the brake lines and the spare tire or bumper area. Plan the location with the rear suspension at normal ride height, then check the hose path through full compression and rebound. A hose that stays slack at ride height can still go tight at full droop, so test both ends of the range.
Rear shocks see a lot of impact from the axle, so inspect the mounts after rough trail sessions. Look for cracked bushings, bent eyes and any sign of rubbing on the reservoir housing. Keep the reservoir clean so debris does not build up around the hose fittings.
- Test hose clearance at full droop and compression
- Inspect bushings and eyes after rough runs
- Keep fittings clean and free of debris
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 25-197761 |
| UPC | 651860681023 |
| Shock series | 5160 Series |
| Position | Rear |
| Body | Monotube |
| Piston | 46mm digressive |
| Valving | Self-adjusting deflective disc |
| Collapsed length | 18.70 in. (475.0 mm) |
| Extended length | 31.81 in. (808.0 mm) |
| Reservoir | Remote |
| Charge | Gas charged |
| Finish | Zinc plated |
| Lift range | 3 to 4 in. lift |
| Fitment | Direct Fit |
Vehicle fitment
This rear shock is direct fit for a 3 to 4 in. lift, so match your year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The listed lift range is 3 to 4 in., so confirm your suspension height sits inside it before fitting the shock. Position the remote reservoir where its hose stays clear of moving suspension parts. Shocks are under pressure when charged, so keep hands clear when removing them.
What’s included
Check the mounting brackets, hardware and fasteners against your installation before starting.
