Overview

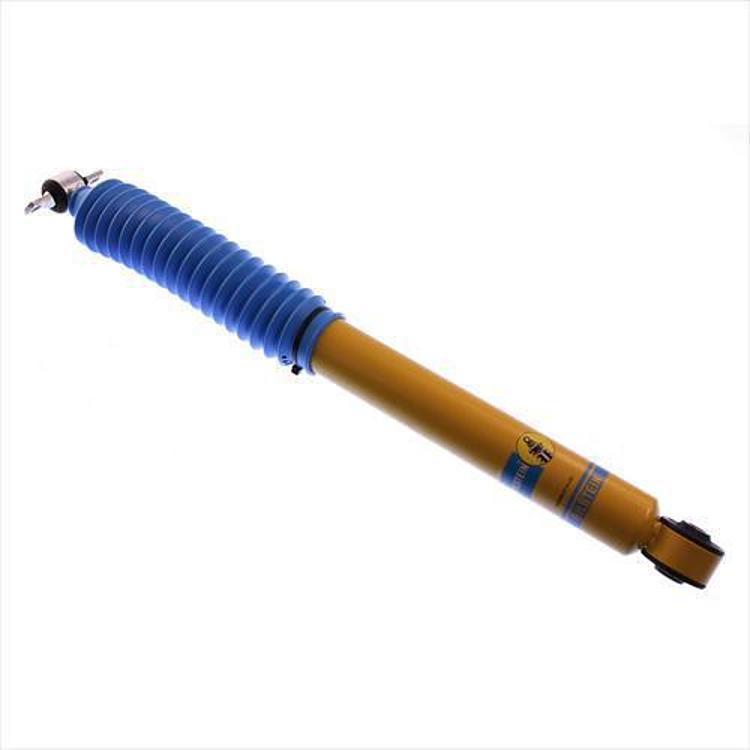

The Bilstein 24-016988 is a rear shock absorber in the 4600 Series, a heavy duty monotube gas-charged unit with a 2 in body diameter and a yellow finish. It is labeled Direct Fit, but that label alone does not establish a model, year or trim, so confirm the vehicle it suits before selecting it.
The monotube body moves heat out of the damping oil through its outer wall, which lets the shock shed heat more quickly. A dividing piston gives the oil room to expand as temperatures rise, which keeps foaming and viscosity loss in check so damping holds steady as the shock warms.
The extruded tube has tight peak-to-valley tolerances and even wall thickness. The piston head allows separately tuned compression and rebound damping, and the layout uses fewer internal parts than many twin tube and road sensing designs. Boots are included.
Key features
- Heavy duty monotube body within the Bilstein 4600 Series
- Gas-charged design with a dividing piston for expanding oil
- Heat moves from the damping oil out through the shock body
- Extruded tube with tight peak-to-valley tolerances
- Piston head with separately tuned compression and rebound damping
- Fewer internal parts than twin tube designs
- Boots included
Rear shock wear signs
Rear shocks carry the load of the rear axle and body, so a worn damper often shows up as bounce after a dip, nose-dive on braking or a rear end that feels loose on rough pavement. Monotube designs with a gas charge tend to hold damping steady over long runs, but any shock can lose control once the oil seals wear or the rod gets pitted. A rear shock should be checked whenever the ride changes noticeably.
Look for oil on the shock body, a knocking noise over bumps and bushings that have cracked or collapsed. Tires that cup or wear unevenly can point to worn dampers as well. If you replace one rear shock, consider the other side too, so both damp the same way. Keep the boot intact to protect the shaft from grit and water.
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-016988 |
| UPC | 651860469584 |
| Shock series | 4600 Series |
| Product type | Heavy duty mono tube shock absorber |
| Position | Rear |
| Body diameter | 2 in |
| Type | Monotube |
| Gas charge | Gas charged |
| Finish | Yellow |
| Reservoir | No |
| Boots included | Yes |
| Fitment type | Direct fit |
| Lift height | 0 in. (no lift or drop) |
Vehicle fitment
The Direct Fit label alone gives no model, year or trim, so confirm your year, make, model and trim before choosing it.
This unit is labeled Position: Rear, so it belongs in a rear mounting location rather than the front. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Boots are included.
Not included: Check whether mounting hardware is included before starting the installation.
