Overview

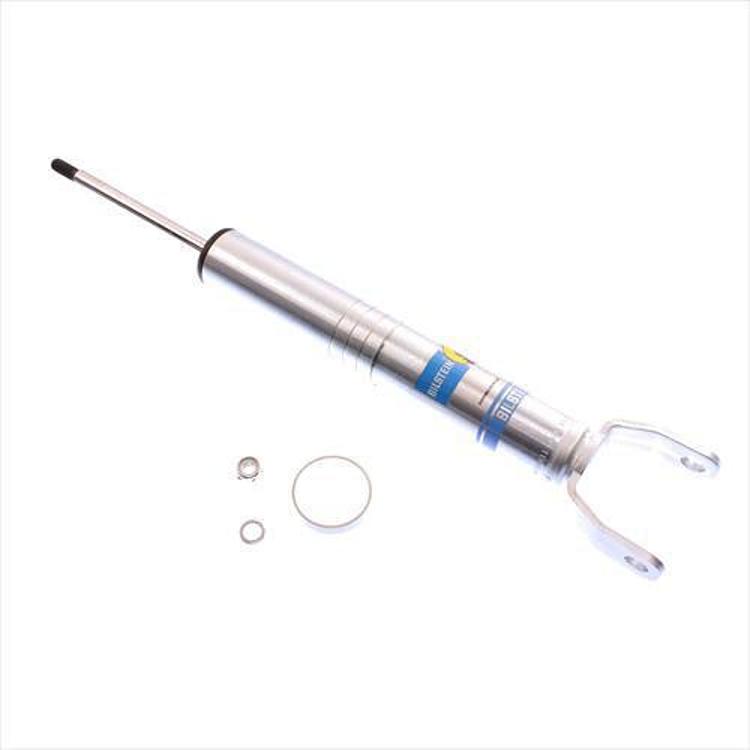

The Bilstein 5100 Series Ride Height Adjustable Shock Absorber, part number 24-186988, is a front zinc plated shock designed to correct factory nose-down rake. It is a direct fit for the 2006–2008 Dodge Ram 1500 with Laramie, SLT, ST, SXT, Sport and TRX4 trims.
The shock installs like a factory replacement. Snap ring grooves on the body let the OEM spring seat be repositioned, which adds preload to the factory spring and gives a level front to rear ride height. It allows larger wheels and tires, including a 33-inch tire, and provides up to 2.75 in of front end lift depending on application.
Key features
- Snap ring grooves on the shock body for ride height adjustment
- Monotube gas pressure construction
- Repositioned OEM spring seat adds preload to the factory spring
- Up to 2.75 in of front end lift depending on application
- Offers increased wheel travel for a 33-inch tire.
- More practical than strut extension or spring pre-load spacer kits, Bilstein says
- Zinc plated finish
Front ride height and tire size
Raising the front end changes how the suspension geometry behaves, and a larger tire adds rotating weight and changes steering effort. Before committing to a bigger tire, check that it clears the fender, inner liner and steering components at full lock and at full compression. Tire rub on the inner fender is often the first sign that clearance is tighter than expected.
Front shocks on a lifted or re-shimmed truck do more work than stock units, so it is worth checking the bump stops and upper mounts after the first few drives. Tighten all fasteners to specification and re-check them after the first trail runs. Keep an eye on tire wear across the front axle, because changes in ride height can alter camber and toe.
- Tire clearance at full lock
- Bump stop contact at full compression
- Upper mount fasteners after first drives
- Front tire wear pattern
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-186988 |
| UPC | 651860594767 |
| Shock series | 5100 Series |
| Position | Front |
| Collapsed length | 15.18 in. |
| Extended length | 21.26 in. |
| Travel length | 6.08 in. |
| Lower mount | Clevis |
| Upper mount | Stem |
| Shaft diameter | 14mm |
| Body design | 46mm ID snap ring grooved body (coilover) |
| Internal design | Monotube |
| Reservoir | None |
| Boot | Not included |
| Finish | Zinc plated |
| Lift height | 0 to 2 in. |
Vehicle fitment
The manufacturer fitment list covers the 2006–2008 Dodge Ram 1500 as a direct fit front application.
Dodge Ram 1500 years after 2008, and Ram 2500 and 3500 models, are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the spring seat is repositioned, check front alignment and driveline angles after installation, and confirm clearance for a larger tire. The shock installs in place of the factory unit without drilling or welding.
What’s included
One front shock absorber. Boots are not included.
