Overview

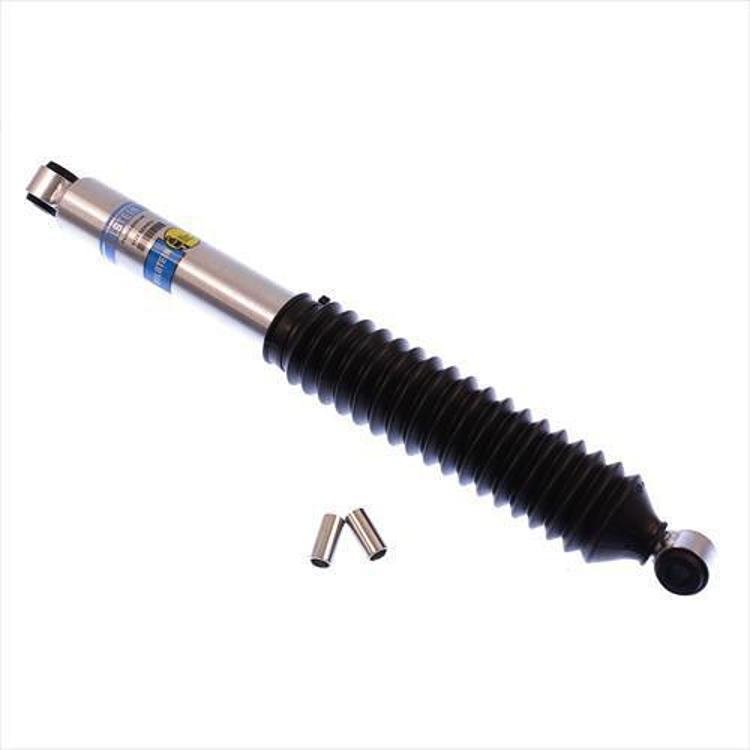

The Bilstein 5125 Series front shock absorber, part number 33-185590, is a gas-charged monotube shock with 5/8 inch eye mounts and a 46mm smooth body. It is rated for a 2 to 2.5 inch lift and covers Chevrolet, GMC and Ford Bronco trucks from 1966 to 2007, including K-series pickups and Suburbans.
The shock uses a high-flow piston, self-adjusting deflecting disc valving and independent rebound and compression tuning, which Bilstein says controls large diameter tires. It has a 13.66 inch collapsed length, a 21.63 inch extended length and 7.97 inches of travel, with compression rated 700 and rebound rated 2550.
Key features
- Monotube gas pressure construction
- Self-adjusting deflecting disc valving
- High-flow piston
- Independent rebound and compression tuning
- Boot and 1/2 inch mounting sleeves included
Front shock on a light truck
A front shock controls the suspension at the steering end, so its damping affects steering feel, bump absorption and tire contact on uneven ground. Front shocks often wear faster because they carry more of the engine weight and steering load. When the lift is raised, the front shock also works through a different range of motion.
Replace front shocks in a pair so both sides ride and steer the same way. Check the upper and lower mounts for cracks and the bushings for wear before installing. Look for oil on the shock body, clunking over bumps, or uneven tire wear as signs the shock needs attention. Bump stops and steering components should be inspected at the same time.
- Replace front shocks in pairs
- Check bushings and mounts for wear
- Inspect steering components when the shock is out
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 33-185590 |
| UPC | 651860453767 |
| Shock series | 5125 Series |
| Position | Front |
| Collapsed length | 13.66 in |
| Extended length | 21.63 in |
| Travel length | 7.97 in |
| Compression | 700 |
| Rebound | 2550 |
| Lower mount | 5/8 inch eye |
| Upper mount | 5/8 inch eye |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Mono tube |
| Reservoir | No |
| Finish | Zinc plated |
| Gas charged | Yes |
| Boot included | Yes |
| Mounting parts | 1/2 inch sleeves |
| Lift height rating | w/2 – 2.5 in. Lift |
Vehicle fitment
It covers Chevrolet K10, K20 and K30 pickups, the K5 Blazer, Chevrolet and GMC Suburbans, and Silverado and Sierra 1500 trucks. Earlier coverage includes the 1969 GMC pickups through 1986 K-series trucks, and 1987 to 1991 Blazers and Suburbans. Later coverage runs from 1999 to 2006 Silverado and Sierra 1500 trucks, plus the 2007 Classic models. It also covers the 1966 to 1973 Ford Bronco.
The list does not include 1992 to 1998 Chevrolet or GMC trucks, 2008 and newer Silverado or Sierra models, or Ford trucks other than the 1966 to 1973 Bronco.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This is a front position shock with 1/2 inch mounting sleeves included, so confirm the sleeves fit your eye mounts. Bilstein rates it for a 2 to 2.5 inch lift, so compare the 13.66 inch collapsed length with the shock you are replacing. Raise and support the axle before disconnecting the original shock.
What’s included
The shock absorber with its boot and 1/2 inch mounting sleeves.
