Overview

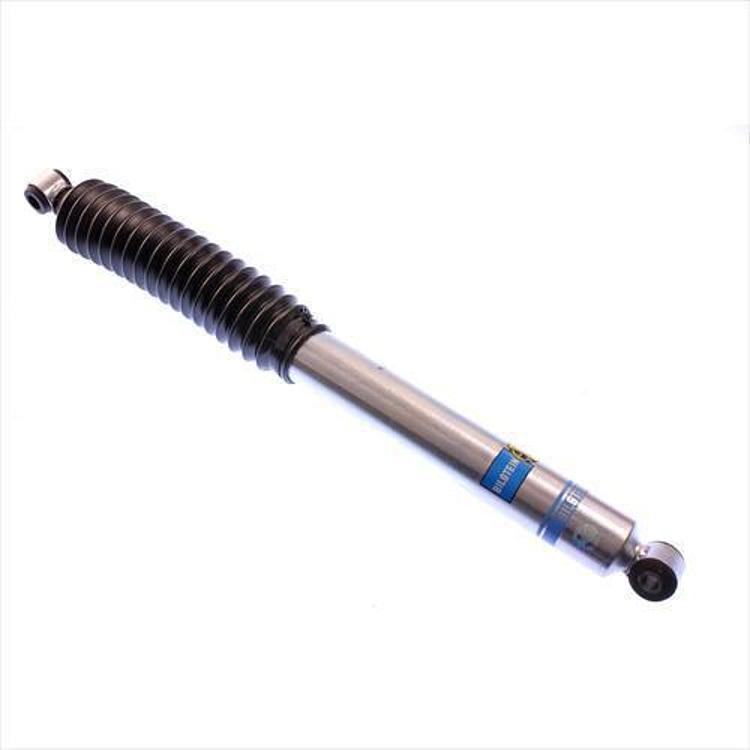

The Bilstein 24-186223 is a rear 5100 Series shock absorber with a 9.11 in. travel length. It fits the 1993 to 1998 Jeep Grand Cherokee (ZJ) and the 1993 Jeep Grand Wagoneer (SJ) Base trim. It is built for lifted trucks, Jeeps and prerunners with a 3 to 4 inch lift rating.
The shock uses a monotube gas pressure body with no reservoir. This single-tube design holds consistent, fade-free damping over long use. It is a non-coilover body with stock OEM-style mounting, so it suits the lift kits it was designed to match.
Key features
- Monotube gas pressure construction for consistent damping
- Self-adjusting deflecting disc valving
- High-flow piston that Bilstein says reduces harshness
- Independent rebound and compression tuning
- Larger working piston area for controlled damping
- Designed to control large diameter tires
- Boot included
Things to check
Rear shocks handle axle movement under load and help keep the tires in contact after a bump. A monotube gas-charged body keeps the oil under pressure, which helps the damping stay steady across a long day of trail use. Before buying, confirm that the lift height you run falls inside the 3 to 4 inch range, because a shock that is too short or too long will limit travel or bottom out.
Many owners replace rear shocks in pairs so the ride stays even from side to side. Check the upper and lower eye mounts for cracking, and inspect the bushings and bolts that clamp them. Worn bushings can add clunks that look like shock trouble but come from the mounts themselves. Lightly lubricating new bushings helps them seat and stay quiet.
- Check eye mounts for cracks or elongated holes
- Inspect bushings for cracking, flattening or play
- Replace rear shocks in pairs for matched damping
- Use stands or ramps when working under the axle
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-186223 |
| UPC | 651860585147 |
| Series | 5100 Series |
| Position | Rear |
| Collapsed length | 15.48 in. |
| Extended length | 24.59 in. |
| Travel length | 9.11 in. |
| Lower mount | Eye, 12.2mm |
| Upper mount | Eye, 16mm |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body, non-coilover |
| Internal design | Monotube |
| Gas charged | Yes |
| Reservoir | No |
| Finish | Zinc plated |
| Boot | Included |
| Lift height rating | w/3 – 4 in. lift |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 1993 to 1998 Jeep Grand Cherokee (ZJ) in the 5.9 Limited, Base, Laredo, Limited, Orvis, SE and TSi trims, and the 1993 Jeep Grand Wagoneer (SJ) Base trim.
Other Grand Cherokee generations, including the WJ from 1999 to 2004, are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The rated lift range is w/3 – 4 in. lift, so check that your suspension height falls inside it before choosing this shock. Support the axle with stands while you work and never rely on a jack alone.
What’s included
One Bilstein 5100 Series shock absorber with its boot. Confirm mounting hardware and bushings against your installation before starting.
