Overview

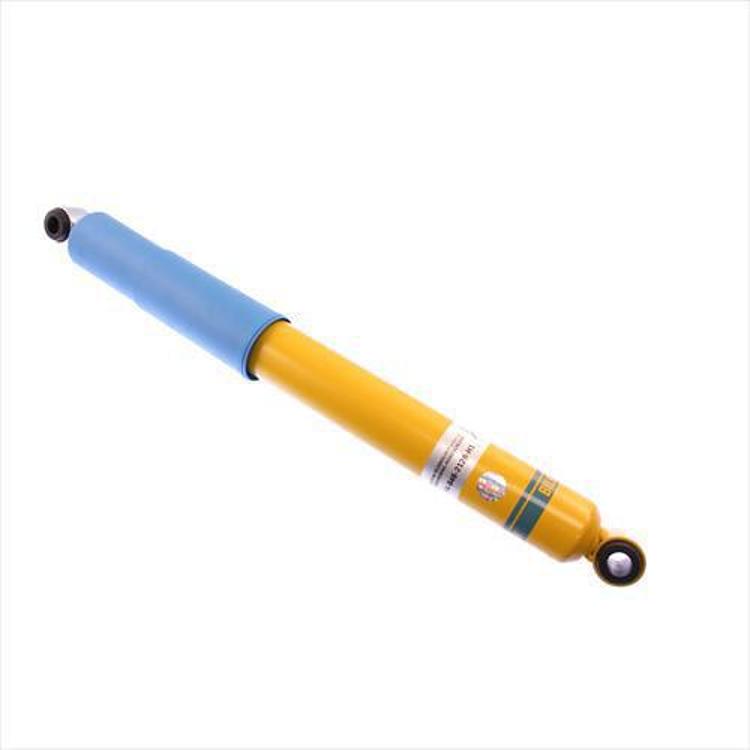

The Bilstein 4600 Series rear shock absorber, part number 24-021289, is a gas-charged monotube shock built for the 1998–2004 Nissan Frontier and the 1993–1998 Toyota T100, plus the 1993 and 1995 Toyota T100 One-Ton. It has a 2 in body diameter, a yellow finish and boots included, and Bilstein positions it as a direct-fit rear shock for these trucks.
The monotube body moves heat from the oil into the outer shock tube, where it dissipates more efficiently than a conventional twin tube design. A dividing piston lets the oil expand as temperatures rise, which Bilstein says prevents aeration, or foaming, and loss of viscosity so the shock keeps full damping as it heats up.
Key features
- Gas-charged monotube body that carries heat from the oil to the outer shock body
- Dividing piston that lets oil expand as heat builds, limiting foaming and viscosity loss
- Seamless tube made with a special extrusion process for tight peak-to-valley tolerance and consistent wall thickness
- Piston head that tunes compression and rebound damping independently for ride comfort
- It has fewer internal parts than most conventional twin tube and road sensing designs.
- Boots included and a direct-fit rear position
Before you install a rear shock
A rear shock controls how the body rebounds and settles after a bump, and it shares the work with the springs. On a truck that carries cargo or tows, the shock works harder, so checking its condition matters more than on a light commuter. Shocks do not fix worn springs, bushings or tires, so inspect those parts when the ride feels loose or the truck sways on turns.
Before buying a replacement, compare the upper and lower mount design of the old unit with the new one. Rear shocks are often replaced in pairs on the same axle so both sides damp evenly. After fitting, recheck the mounting bolts after the first few drives and look for oil streaks on the body, which can point to a seal that needs attention.
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-021289 |
| UPC | 651860449197 |
| Series | 4600 Series |
| Position | Rear |
| Body diameter | 2 in |
| Type | Monotube |
| Hydraulic / gas charged | Gas charged |
| Reservoir | No |
| Boots included | Yes |
| Finish | Yellow |
| Lift height | w/0 – 2 in. Lift |
| Fitment type | Direct Fit |
Vehicle fitment
It fits the 1998–2004 Nissan Frontier in Base, SC, SE, SVE and XE trims, the 1993–1998 Toyota T100 in Base, DLX, DX and SR5 trims, and the 1993 and 1995 Toyota T100 One-Ton in DLX trim.
Frontier model years from 2005 onward and T100 years or trims outside these entries are not shown as covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the mounting points on your old rear shock against this unit before removing it. Rear shocks carry load and affect ride control, so after installation make sure every fastener is snug and the boots are seated before driving.
What’s included
One rear shock absorber with boots included.
Not included: mounting hardware, so plan to reuse or inspect your existing hardware before installing.
