Baja Designs Blacklit Add-On LP9/LP6/LP4 Wiring Harness – 640176

Baja Designs

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Blacklit add-on wiring harness for LP9, LP6 and LP4 lights
  • Adds backlighting to an existing harness
  • Includes four fuse taps, an alternate splice connector and zip ties
  • Part number 640176; universal fit

Description

Overview

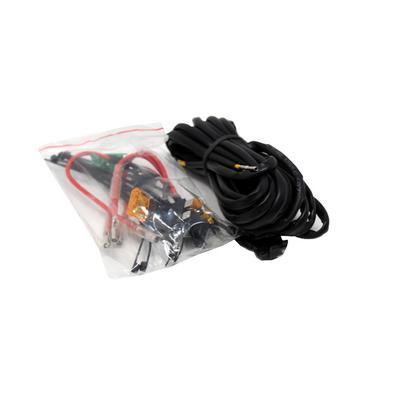

The Baja Designs 640176 is a Blacklit add-on wiring harness for LP9, LP6 and LP4 lights. It is made for owners who want backlighting on their LP lights but have no backlight wiring. The harness adds backlighting to a current harness, and it has enough length to reach the fuse panel or can be spliced to keyed power.

Key features

  • Adds backlighting to an existing harness
  • Long enough to reach the fuse panel
  • Option to splice to keyed power
  • Four common fuse taps included
  • Detailed instructions included

Adding backlight to LP lights

Adding backlighting to a harness that was never wired for it is mostly a power-source decision. A fuse tap draws from an existing circuit in the fuse panel, which is tidy and easy to reverse. Splicing to keyed power works when the panel is hard to reach, but it means the lights only run while the ignition is on. Pick the route before cutting anything, and mark the wires as you go.

Test the backlighting with the connections loose before fully installing. Use weatherproof splices and heat-shrink where wires join, since moisture is a common cause of backlight flicker. Check the fuse rating on the tap against the load of the new circuit, and recheck the connections after the first few trips over rough ground.

  • Decide between fuse tap and keyed splice first
  • Test connections before final mounting
  • Seal splices against moisture

Specifications

Brand Baja Designs
Part number 640176
Compatible lights LP9, LP6, LP4
Included parts Four fuse taps, alternate splice connector, zip ties, detailed instructions

Vehicle fitment

It is universal fit and is made for LP9, LP6 and LP4 lights rather than a vehicle.

No vehicle make, model or year is named for this harness.

Installation notes

The included instructions cover the wiring. Choose between running the harness to the fuse panel or splicing it to keyed power, based on your electrical layout.

What’s included

Four common fuse taps, an alternate splice connector, zip ties and detailed instructions.

Not included: the LP9, LP6 or LP4 lights.

Questions & Answers

Which lights does the Baja Designs 640176 work with?

It is made for LP9, LP6 and LP4 lights. It suits owners who have no backlight wiring and want to add backlighting to their current harness.

Does it come with fuse taps and instructions?

Yes. It includes four common fuse taps, an alternate splice connector, zip ties and detailed instructions for installation. The harness also has enough length to reach the fuse panel.

Does this harness fit a specific vehicle?

No vehicle applies. It is universal fit, so the match is to the LP light models rather than to a make, model or year.

Do I need special tools to install the fuse taps?

Basic hand tools and a wire stripper are usually enough. A fuse tap seats into an existing fuse slot, while a splice connector needs a crimp or solder joint. Follow the included instructions for wire routing, and check each connection with a meter before closing up the panel.
