Overview

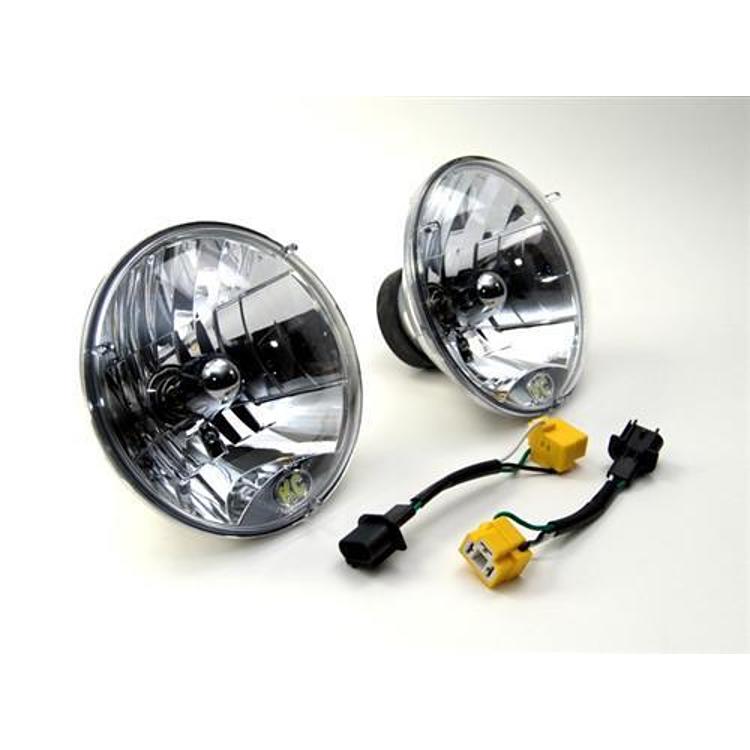

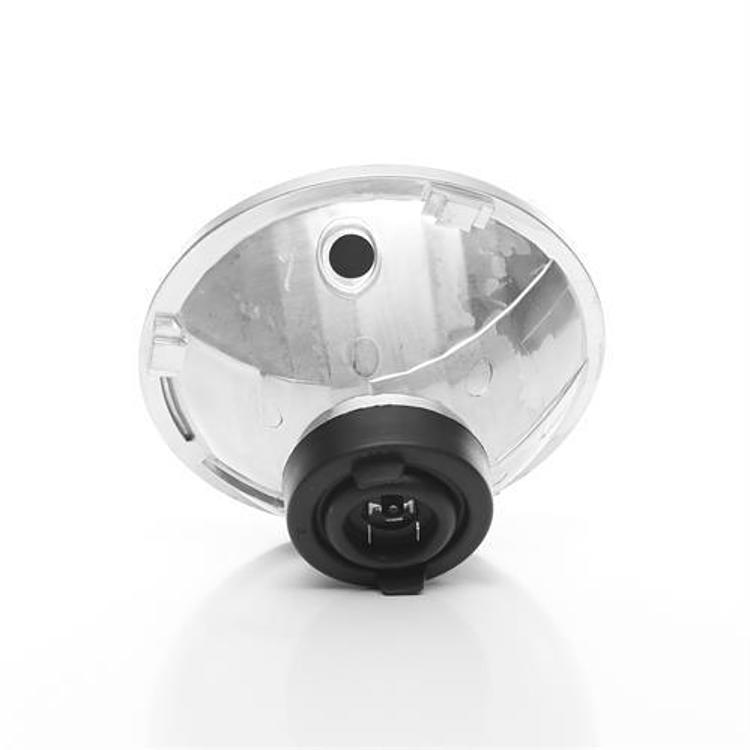

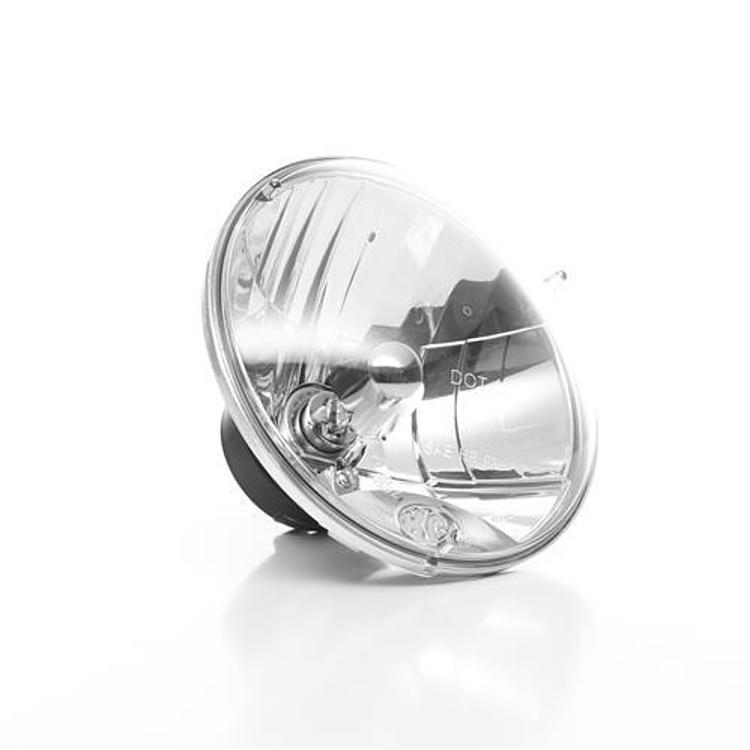

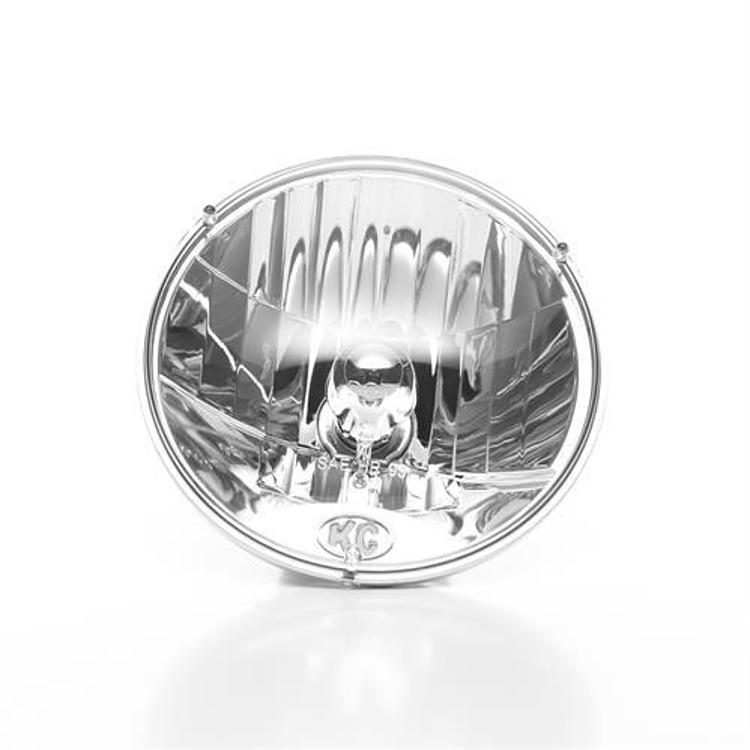

The KC HiLites JK H4 Headlight Conversion Kit, part 42302 in clear, is a pair of replacement headlights with H4 bulbs for the 2007-2013 Jeep Wrangler JK. It is a DOT approved, street legal replacement that plugs directly into H4 headlight sockets.
The clear Hard Coated Lexan lens is designed for impact resistance. The kit uses Multi-Surface Reflector Optics for its beam pattern and includes 55/60w H4 halogen bulbs and H13 to H4 bulb connectors.
Key features
- Clear Hard Coated Lexan lens, which KC calls virtually unbreakable
- Multi-Surface Reflector Optics for a beam pattern KC describes as superior
- Direct plug-in design for H4 headlights

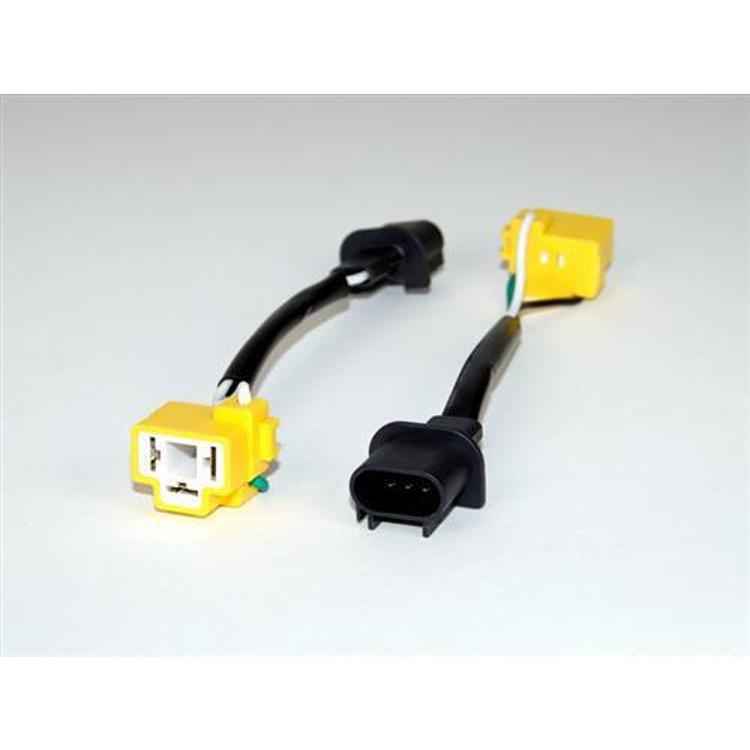

- Includes 2 headlights, 55/60w H4 halogen bulbs and 2 H13 to H4 conversion cables
- The kit is DOT approved and street legal.
Aiming and beam choice
Headlight aim affects how far the beam reaches and whether it lights the road or the oncoming lane. After a headlight swap, aim each unit on a level surface, using a wall or garage door at a set distance. A beam set too high dazzles other drivers, while one set too low reduces visibility at speed.
Halogen bulbs run hot, so keep the connectors dry and check the seals on the back of each headlight after installation. Road salt and grit can work into the wiring plugs, so inspect them each season. Reflector and lens condition also shape the beam, and a cloudy or scratched lens should be replaced before the lights are judged for performance.
- Aim each headlight on a level surface
- Keep bulb connectors dry and seated
- Inspect plugs for salt and grit each season
Specifications
| Brand | KC HiLites |
|---|---|
| Part number | 42302 |
| UPC | 84709423025 |
| Lens | Clear, Hard Coated Lexan |
| Reflector | Multi-Surface Reflector Optics |
| Bulbs | 55/60w H4 halogen |
| Approval | DOT approved, street legal |
Vehicle fitment
It is built for 2007 – 2013 JK Jeep Wrangler models only. Confirm fit for your vehicle’s year, model and trim before ordering, especially for 2014 to 2018 JK, JL, TJ or LJ Wranglers.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
It plugs directly into the H4 headlights. Aim the headlights after installation, and check local road-use rules for lighting before driving on public roads.

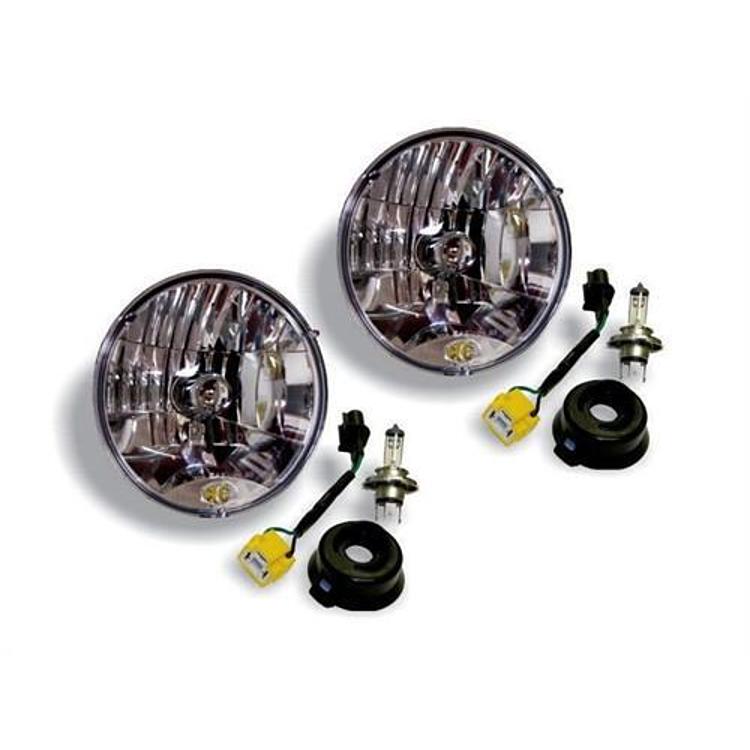

What’s included
Two headlights, two H13 to H4 conversion cables, and 55/60w H4 halogen bulbs.
