Overview
The Rugged Ridge 15210.62 is an off-road light installation harness for 2 lights, supplied with a relay and an illuminated dash switch. It provides pre-terminated wiring for a pair of driving or fog lights, so the lights can be wired and switched from the dash. The harness is universal fit, which means it is not built for one vehicle.
Rugged Ridge describes its lights as built for off-road use, with heavy-duty stamped steel housings, crystal glass lenses and shock absorbent weatherproof rubber gaskets. The lights are available individually or in kits that include a pre-terminated wiring harness, relay, impact resistant stone guards and an illuminated dash switch. This item covers the harness, relay and dash switch from that range.
Key features
- Pre-terminated wiring harness for 2 lights

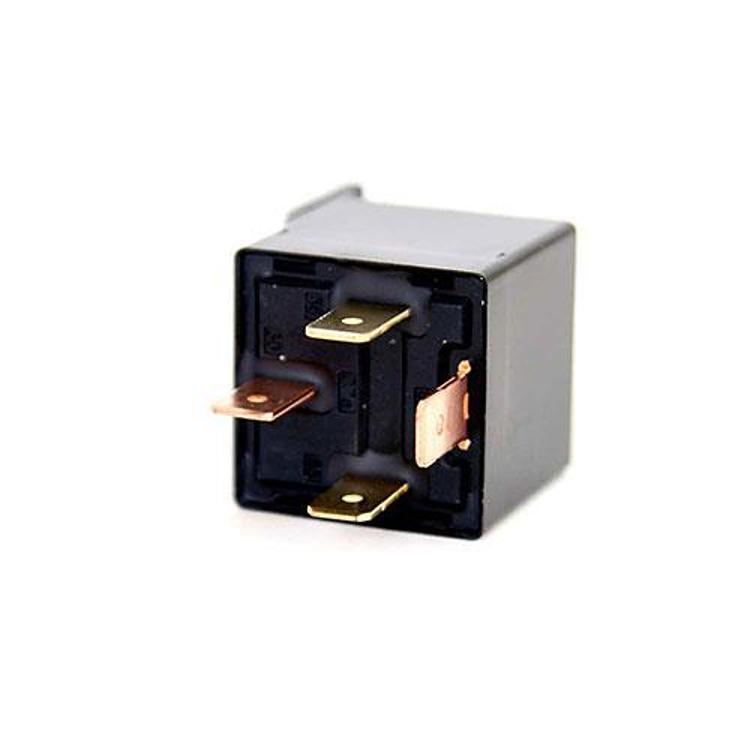

- Relay included for switching the lights

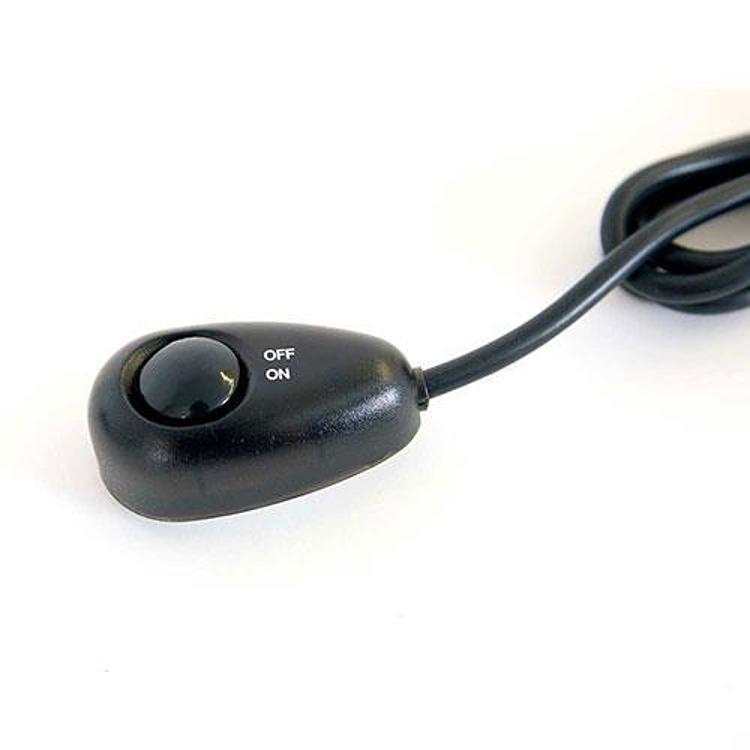

- Illuminated dash switch for control from the cabin
- Universal fit, not tied to one vehicle
- Designed for the off-road use Rugged Ridge describes for its lights
Choosing lights to wire
A two-light harness works best when both lights draw similar current and use the same type of bulb or LED module, since the relay and fuse are sized for the pair. Count the total amperage of the lights you plan to run and compare it with the relay and fuse capacity before wiring. Mixing a high-draw spot with a low-draw fog light can put uneven load on the circuit.
The illuminated dash switch makes it easy to turn the lights on from the cabin, but the switch is only as useful as the wiring behind it. Route the feed cable away from sharp body edges, and use grommets where it passes through sheet metal. Lights exposed to trail debris benefit from periodic checks of the lens, gasket and mounting bracket, especially after heavy water crossings.
- Compare total light current with relay rating
- Use grommets wherever wire passes through metal
- Check lens and gaskets after water crossings
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 15210.62 |
| UPC | 804314218645 |
| Lights supported | 2 |
| Wiring | Pre-terminated harness |
| Included hardware | Relay and illuminated dash switch |
| Fitment | Universal fit |
Vehicle fitment
This harness is universal fit and is not vehicle-specific, so no year, make or model list applies to it. Whether it suits your build depends on the mounting position and on matching the lights you plan to run. Rugged Ridge says its slim lights are made for windshield and grille mounts, so check the mounting position against your vehicle before wiring.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The relay and illuminated dash switch are supplied with the harness, so the switching circuit is part of the package. Lighting circuits should use a fused relay setup, and road-use rules for fog and driving lights vary by location, so check them before using the lights on public roads.
What’s included

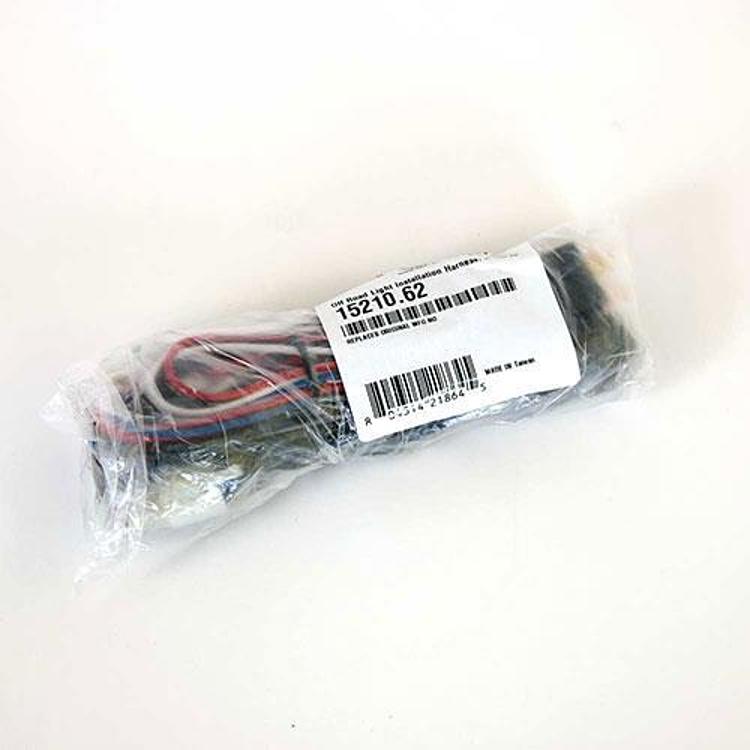

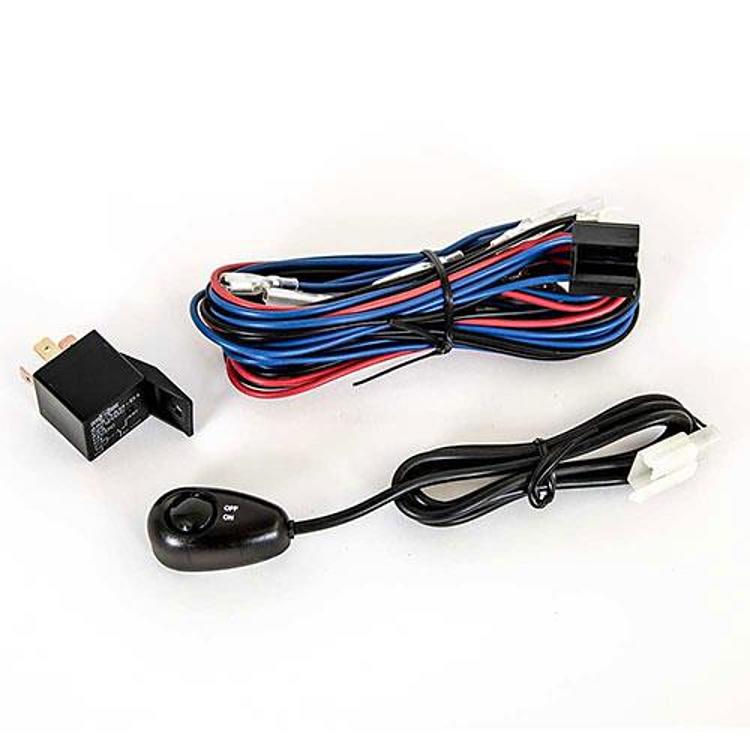

The package includes a pre-terminated wiring harness for 2 lights, a relay and an illuminated dash switch.
Not included: The lights are not part of this item. Plan to supply the lights separately, since this item covers the harness, relay and dash switch only.
