Overview

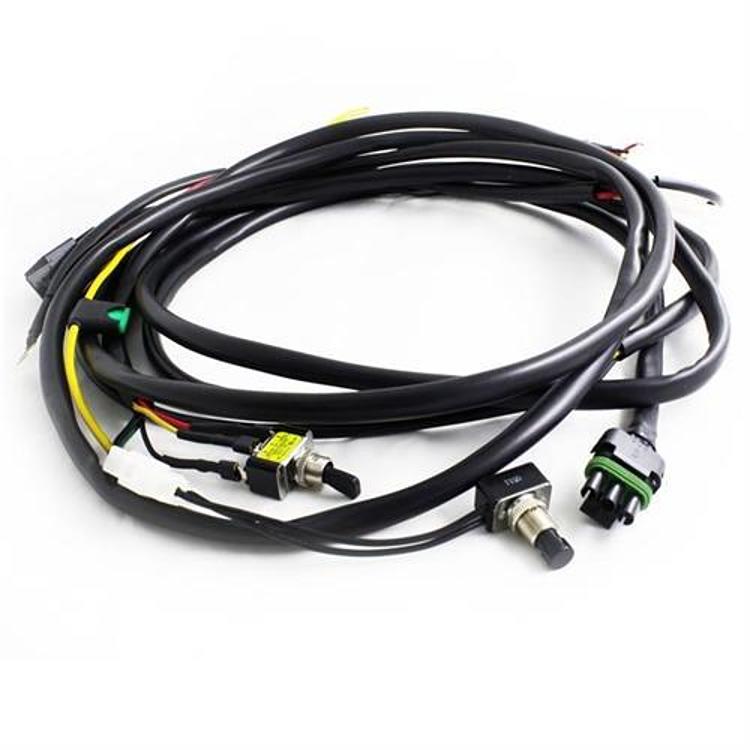

The Baja Designs 640119 is a complete wire harness for XL LED light bars, including XL/OnX6 Hi-Power models with Mode-2 lights rated at a maximum of 325 watts. The harness is designed to make installation simpler. It is universal fit, so it is matched to the light bars rather than to a vehicle.
The harness is suited for race use and includes dust and strobe modes.
Key features
- Complete harness that Baja Designs says removes much of the guesswork from installation
- Designed for XL LED light bars
- Mode-2 lights, maximum 325 watts
- Dust and strobe modes
- Suited to race applications
Planning the light set
A harness is only as good as the load plan behind it. Add up the draw of every light you intend to run, and keep the total under the rated maximum for the Mode-2 lights. Use a fuse and relay matched to the wiring, and keep the positive feed short. Mode changes such as dust or strobe are easier to live with when the switch is placed where you can reach it while driving.
Race-style use puts extra strain on connectors and cable routing, since vibration and water spray can loosen joints. Use weatherproof connectors where wires leave the cab, and secure the harness so it does not swing into moving parts. Periodically check that the grounds are clean and tight, because a poor ground often causes flicker that looks like a light fault.
- Total the draw of every light before wiring
- Use weatherproof connectors where wires exit
- Check grounds for flicker each season
Specifications
| Brand | Baja Designs |
|---|---|
| Part number | 640119 |
| UPC | 819314022994 |
| Maximum wattage | 325 watts |
| Light types | XL LED light bars, Mode-2 lights |
| Modes | Dust and strobe |
Vehicle fitment
It is universal fit and is not tied to a vehicle. Match it to XL LED light bars and Mode-2 lights, not to a make, model or year.
No vehicle list is attached to this harness.
Installation notes
Wire the harness through a fuse and relay, and look up local road-use rules for auxiliary lighting before using the bars on public roads.
What’s included
A complete wire harness for XL LED light bars.
Not included: the XL LED light bars and Mode-2 lights the harness powers.
