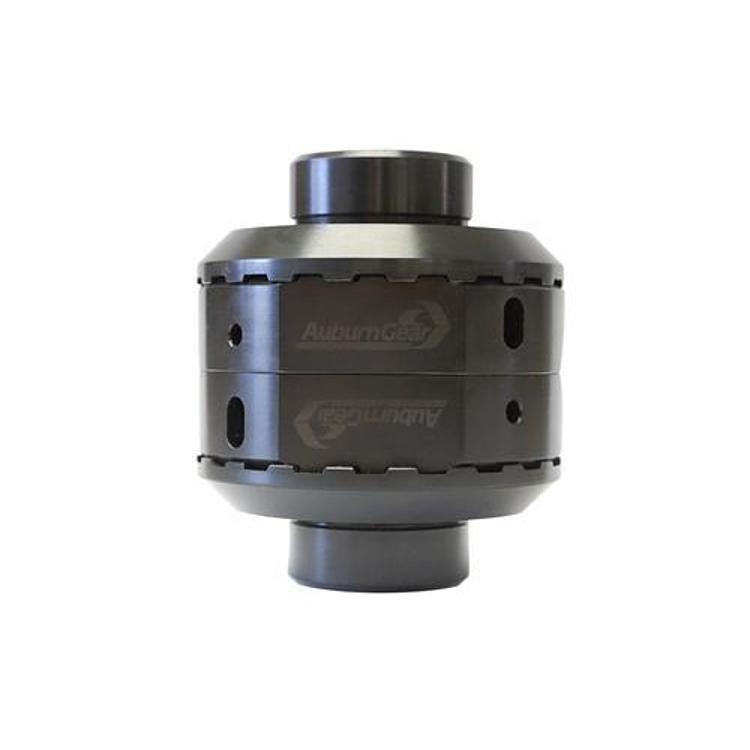

Auburn Gear GM 8.6in. 30 Spline 10 Bolt Max Lock – 544906

Auburn Gear

Shop Auburn Gear Differential Parts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Auburn Gear 544906 Max Lock automatic locker for 30 spline open carriers
  • Replaces factory spider gears with full automatic action
  • Fits open carriers from 2000 and earlier.
  • No gear setup needed.

Description

Overview

The Auburn Gear 544906 is a Max Lock automatic locking differential for GM 10 bolt open carriers with 30 splines. It replaces the factory spider gears inside the existing differential case, turning an open unit into a locker with full automatic action.

The part is made for open carriers from 2000 and earlier with 30 splines. In most differentials, backlash does not need resetting and the ring gear does not need removal.

Key features

  • Full automatic locking action
  • Replaces factory spider gears in an open differential case
  • Converts a standard open differential to locking
  • Fits all 2000 and earlier 30 spline open carriers
  • No gear setup is needed.

When a locker makes sense

A locker forces both wheels to turn together, which can help when one tire loses grip in mud, sand or on a steep climb. It is a different tool from a limited slip, because it does not depend on clutch preload to share torque. Many owners fit a locker for trail use, and choose it only after considering how it will feel on pavement, where a locked axle can make tight turns harder.

Before fitting, check the carrier and spider gear condition, since worn parts can cause noise or breakage under load. Keep tires matched and the same size across the axle, and use gear oil suited to the unit. After the first few drives, listen for clunks and check for leaks.

Specifications

Brand Auburn Gear
Part number 544906
UPC 814996005068
Product type Max Lock automatic locker
Axle manufacturer GM
Axle type GM 10 Bolt 8.6 Inches
Axle location Rear
Axle spline 30 splines
Carrier fit Open carriers from 2000 and earlier
Gear setup No gear setup required.

Vehicle fitment

This locker is matched by carrier and axle type rather than by vehicle. The 8.6 inch GM 10 bolt with 30 splines is the title size, and 8.5 inch housings are also covered. Confirm your vehicle’s year, model and trim before ordering.

Measure the axle housing and count the splines before fitting, since both the 8.5 inch and 8.6 inch sizes are named. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Fitting this locker means working inside the factory differential case and replacing the spider gears. Check the existing gears and carrier condition first, and have an axle shop do the work if you are not set up for it.

What’s included

The unit is an automatic locker that replaces the spider gears. Check the contents against your installation before starting.

SKU: AUB544906 Category:

Specification

Shipping weight 6.05 lbs
Package dimensions 9.00 × 4.30 × 2.50 in
brands

Questions & Answers

Does the 544906 fit my GM 10 bolt axle?

It fits all 2000 and earlier 30 spline open carriers. Measure the axle size and spline count before fitting, since both 8.5 inch and 8.6 inch sizes apply.

Does it need gear setup or ring gear removal?

No gear setup is needed. In most differentials, backlash does not need resetting and the ring gear does not need removal, though the carrier condition should still be checked.

What does it replace inside the differential?

It replaces the factory spider gears inside the differential case, turning an open differential into an automatic locker with full automatic action. Part number 544906, UPC 814996005068.

Will a locker make my truck harder to steer on pavement?

It can. A locked axle forces the tires to turn at the same speed, which can scrub and cause a hop or chatter in tight turns. Keep the tires matched, avoid locked turns on hard surfaces, and unlock the axle when the trail ends if your setup allows it.
