Artec Wide 3/4 Inch High Misalignment Spacers – SP1203

Artec Industries

$21.79In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 3:30 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Wide high misalignment spacers for 3/4 inch bore heim joints
  • Suits a 2.625 inch bracket width
  • 303 stainless steel
  • Offered in pairs

Description

Overview

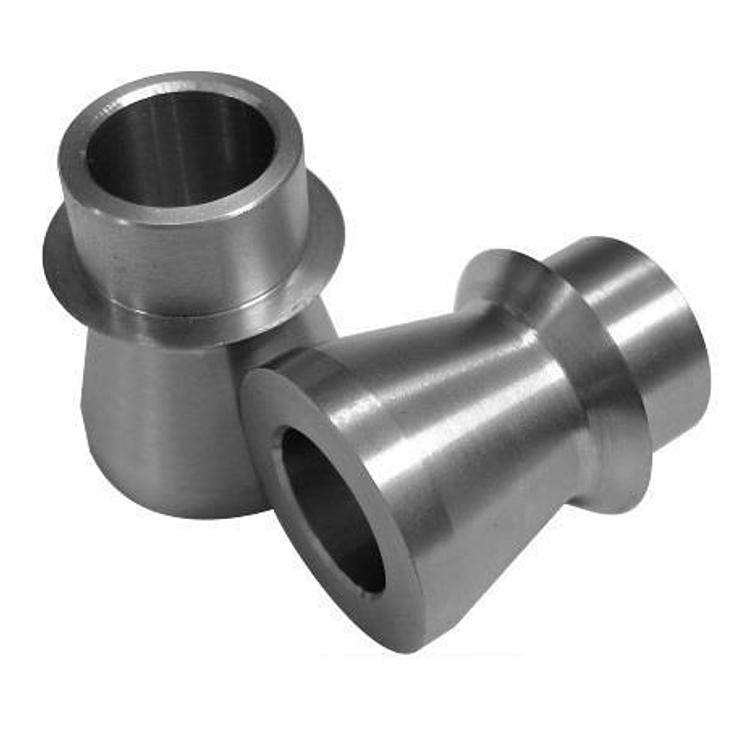

The Artec Industries SP1203 is a pair of wide high misalignment spacers made from 303 stainless steel, intended for heim joints with a 3/4 inch bore installed in a bracket that is 2.625 inches wide.

The 2.625 inch bracket width is common in many stock parts. These spacers let a builder keep 2.625 inch brackets when moving to a larger joint, instead of cutting off the brackets and welding new ones. A single wide spacer also avoids the multiple shear points that stacked spacer sets create.

Key features

  • Wide high misalignment spacers for heim joints
  • For any heim with a 3/4 inch bore
  • Suits locations with a 2.625 inch bracket width
  • Keeps existing 2.625 inch brackets if you move to a larger joint later
  • Made from 303 stainless steel
  • Supplied in pairs

Choosing spacers for a joint upgrade

Spacers are most useful when a joint has to be upgraded but the bracket stays. Misalignment spacers fill the gap between a larger bore and a smaller bracket, so the joint can sit square without modifying the bracket itself. Clean the bracket and spacer faces before assembly, and check that the spacer is fully seated so the load passes through the spacer and not the fasteners alone.

Because spacers sit inside a load path, they should be matched to the joint carefully. Look for uneven wear on the joint after use and replace any spacer that shows galling or cracking. In steering or suspension links, a professional installation and an alignment check afterward are a sensible step.

  • Confirm the bore before ordering
  • Clean bracket and spacer faces
  • Inspect for galling after use

Specifications

Brand Artec Industries
Part number SP1203 (also shown as A/ISP1203)
UPC 816791023285
Product type High misalignment heim joint spacers
Width style Wide
Heim bore size 3/4 inch
Spacer bore 9/16 inches
Bracket width 2.625 inches
Material 303 stainless steel
Quantity Offered in pairs
Fitment type Universal fit

Vehicle fitment

The SP1203 is a universal fit part. Compatibility depends on the joint and bracket rather than a vehicle: the heim must have a 3/4 inch bore and the bracket width must be 2.625 inches.

Check the joint bore and bracket width before ordering. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Torque all fasteners to the values that suit your joint and bracket, and confirm the stack-up before final tightening.

  • Check the part against your vehicle before starting work.
  • Re-check fasteners after the first miles of driving, and again after hard off-road use.
  • Check the stack-up of joint, spacers and bracket before final tightening so the joint is not pinched or loose.
  • If the spacers are used in suspension or steering links, have the work done by a professional and check the alignment afterward.

What’s included

One pair of spacers.

Not included: Heim joints, bolts and brackets are not included.

SKU: A/ISP1203 Category:

Specification

Shipping weight 0.30 lbs
Package dimensions 6.00 × 6.00 × 6.00 in
brands

Questions & Answers

What heim joints do the Artec SP1203 spacers fit?

The SP1203 spacers are for any heim joint with a 3/4 inch bore. They are intended for locations where the bracket width is 2.625 inches, a width Artec says is common in many stock parts.

What material are the Artec SP1203 spacers made of?

Artec Industries makes the SP1203 high misalignment spacers from 303 stainless steel. They are supplied in pairs, and the spacer bore is 9/16 inches.

Why use these spacers instead of cutting off the brackets?

The spacers let you keep 2.625 inch brackets when you upgrade to a larger joint later, instead of cutting off the brackets and welding on new ones.

Are the SP1203 spacers vehicle specific?

No. The SP1203 is a universal fit with no vehicle list. Fit depends on the 3/4 inch heim bore and a 2.625 inch bracket width, not the vehicle model.

Can the spacers be reused when a joint is replaced?

Often yes, if the spacer is undamaged and its bore still matches the new joint. Inspect the spacer faces for galling and check that the bore is not worn out of round before reusing it.
