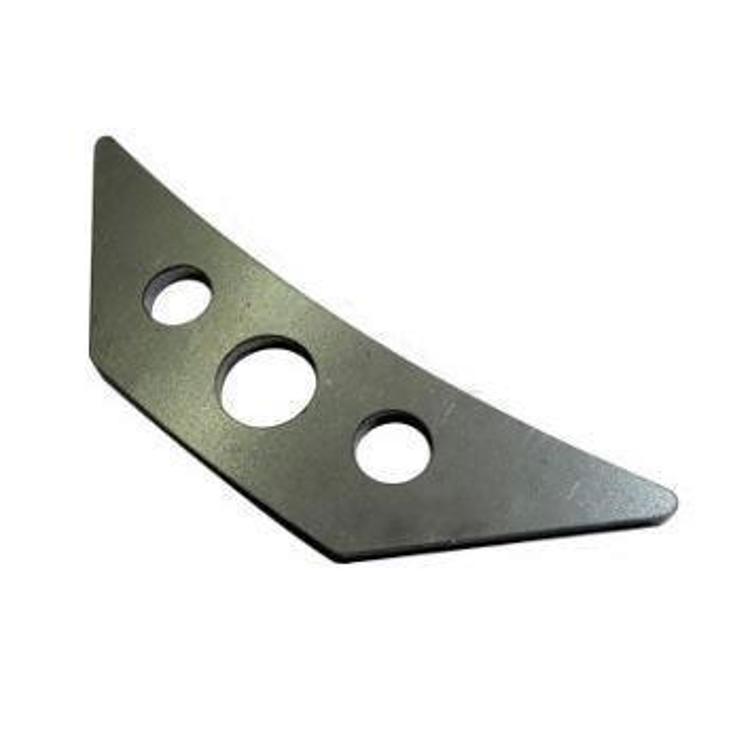

Artec 5 Inch Speed Gusset – GU5001

Artec Industries

Shop Artec Industries Gussets Tabs on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Artec GU5001 5 inch speed gusset, sold as a single
  • Cut from 1/4″ steel plate and tumble finished
  • Ready to weld directly into place
  • Universal fit; works with any tube diameter

Description

Overview

The GU5001 is a 5 inch speed gusset cut from 1/4″ steel plate. It is tumble finished and sold as a single piece, and it works with any tube diameter.

The gusset is universal fit, not vehicle specific. Fit depends on the joint being built, and it is welded rather than bolted in place.

Key features

  • 5 inch speed gusset in 1/4″ steel plate
  • Tumble finished
  • Ready to weld directly into place
  • Universal fit, tube diameter any
  • Sold as a single

Heavier plate, heavier welds

Thicker plate changes the welding job. A 1/4 inch plate needs more heat and usually a full-penetration weld on a joint that carries load, so the weld size and technique matter as much as the part. Confirm the welder can handle the plate thickness before starting, and plan the bead sequence to limit warping in the surrounding tube.

A heavier gusset is stiffer, which means it puts more stress into the joint it braces. Make sure the adjoining tubing and welds are sound, and consider whether the joint needs a second brace rather than a thicker one. Fit-up is the step that most often gets rushed, so take the time to set the piece square.

  • Confirm welder capacity for the plate thickness
  • Plan the bead sequence to limit warping
  • Inspect the adjoining tube for cracks after the first trip

Specifications

Brand Artec Industries
Part number GU5001
UPC 816791021045
Size 5 inch
Material 1/4″ steel plate
Finish Tumble finished
Sold as Single
Tube diameter Any
Fitment Universal fit
Type Gusset

Vehicle fitment

The GU5001 has no vehicle-specific fitment. It is a universal gusset, so size it to the joint in your build.

This gusset carries no vehicle list at all. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 1/4″ plate gusset needs enough welder output for a full weld, so use a qualified fabricator. Check the position against the joint before the final weld.

What’s included

One 5 inch speed gusset.

Not included: the joint material and welder needed to attach it.

SKU: A/IGU5001 Category:

Specification

Shipping weight 0.50 lbs
Package dimensions 4.00 × 4.00 × 0.30 in
brands

Questions & Answers

What is the Artec GU5001 speed gusset?

The GU5001 is a single 5 inch speed gusset cut from 1/4" steel plate. It is tumble finished, ready to weld directly into place, and Artec lists its tube diameter as any.

Does the GU5001 fit my vehicle?

No vehicle, year or model applies to it. It is universal fit, so check the joint and clearance on your own build before welding.

What material is the GU5001 made from?

It is cut from 1/4" steel plate and tumble finished. No steel grade is stated, so the exact alloy is not confirmed.

Does a 1/4 inch gusset need special welding?

Thicker plate usually needs more heat input and a full-penetration weld for a load-bearing joint. A qualified fabricator can set the welder and technique for the plate thickness and joint type before welding begins.
