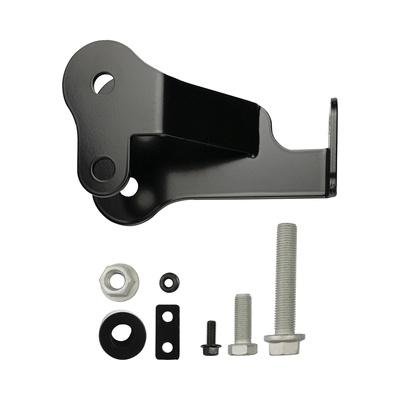

ARB Old Man Emu Rear Panhard Relocation Bracket – FK109

ARB 4x4 Accessories

Shop Ford Bronco Panhard Rods on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear panhard relocation bracket for the 2021–2026 Ford Bronco
  • Frame-side type
  • Raises the rear roll center and centers the axle under the frame
  • Used for fitting Old Man Emu panhard rods

Description

Overview

The ARB Rear Panhard Relocation Bracket, part number FK109, is a frame-side bracket for the 2021–2026 Ford Bronco. It fits the Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks and Wildtrak trims and is used to fit Old Man Emu panhard rods.

The bracket raises the rear roll center and centers the axle under the frame. It corrects geometry at the lifted height and is designed to help handling.

Because the bracket raises the rear roll center and centers the axle under the frame, it changes the rear axle position relative to the body. It is designed for a lifted vehicle, where it corrects geometry at that height. Confirm that the rear panhard rod being fitted is the Old Man Emu rod the bracket is meant for before installation.

Key features

  • Frame-side relocation bracket for the rear panhard rod
  • Raises the rear roll center
  • Centers the axle under the frame
  • Corrects geometry at the lifted height

Setting up the rear axle

A panhard rod keeps the rear axle centered side to side as the suspension moves up and down. After a lift, the axle can shift relative to the body, which is why relocation brackets are used to bring it back under the frame and improve control. The bracket changes where the rod pivots, so it works as part of the rear suspension rather than as a separate upgrade.

Because the rod and bracket carry lateral load, check the frame mounting points for rust before bolting anything on. Inspect the rod bushings and ends for wear, and look at tire wear across the rear axle after the first few drives, since an off-center axle can scrub one side. Have the rear alignment and steering checked once the work is finished.

  • Inspect frame mounting points for rust
  • Check rod bushings and ends for play
  • Recheck bolts after the first few drives
  • Watch for uneven rear tire wear

Specifications

Brand ARB 4×4 Accessories
Part number FK109
Type Frame side
Position Rear

Vehicle fitment

It fits the 2021–2026 Ford Bronco in the Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks and Wildtrak trims.

Ford models other than the Bronco, and Bronco years outside 2021–2026, are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Use this bracket only with a matching Old Man Emu panhard rod.

Fitment

VehicleYearsTrims
Ford Bronco2021–2026Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks, Wildtrak

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the ARB FK109 fit a Ford Bronco?

It fits the 2021–2026 Ford Bronco in several trims, including Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks and Wildtrak. Confirm your year, model and trim before ordering, because other Ford models are not covered.

What does a panhard relocation bracket do?

It raises the rear roll center and centers the axle under the frame. This corrects geometry at the lifted height and is designed to improve handling.

Which rod does this bracket go with?

It is used for fitting Old Man Emu panhard rods. Use it only with a matching Old Man Emu panhard rod, and check the rod's fit to the bracket before installation.

Why is a panhard rod used on a lifted vehicle?

A panhard rod keeps the rear axle centered side to side as the suspension moves. After a lift, the axle can shift, so a rod and relocation bracket help control that movement and keep the axle positioned under the body.

How can you tell the panhard bracket or rod is worn?

Look for clunking over bumps, a rear axle that sits off center, or tire wear that appears on one side. Cracked welds, bent brackets and worn rod bushings are also signs the part needs inspection or replacement.
