ARB Old Man Emu Rear Coil Spring Set for Light Loads – 3204

ARB 4x4 Accessories

Shop Ford Bronco Coil Springs on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • ARB 3204 Old Man Emu rear coil spring set for light loads, 2 to 3.5 inches, black
  • Fits 2021–2026 Ford Bronco models
  • Designed for lighter loads, with ride control emphasis
  • Direct fit

Description

Overview

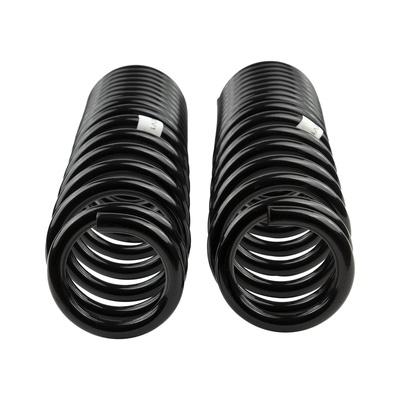

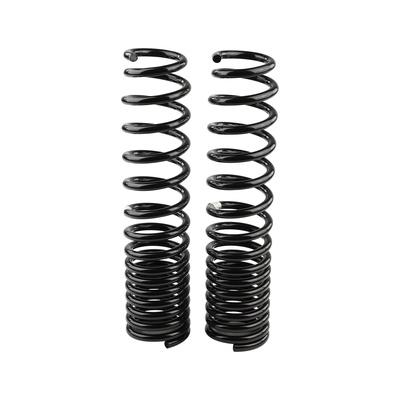

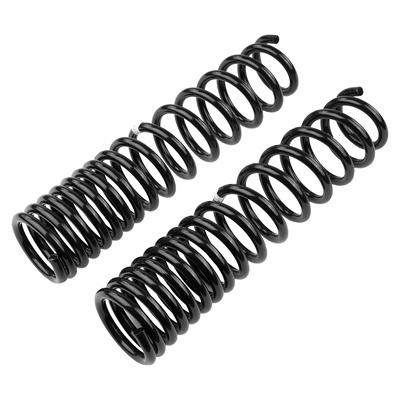

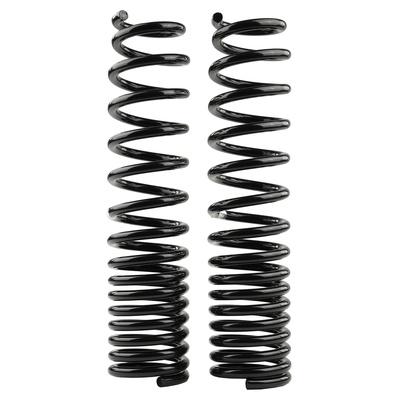

The ARB 3204 is an Old Man Emu rear coil spring set for light loads, made for the 2021–2026 Ford Bronco. It is black and gives a height range of 2 to 3.5 inches.

ARB designs a wide range of coil springs for each vehicle, so the springs can be matched to particular load needs and intended use. For a light load application, the set is chosen for smaller added weight.

Key features

  • Rear coil spring set for light loads
  • Micro-alloyed spring steel.
  • Height range of 2 to 3.5 inches
  • Black finish
  • Designed to be matched to Old Man Emu shocks

Light loads and ride quality

A light load spring is built for smaller added weight, so it keeps the ride comfortable when the vehicle carries gear rather than heavy cargo. Heavier loads push a light rated spring toward sagging faster and may cause the rear to bottom out on bumps. Matching the rating to typical use is the easiest way to avoid that.

Ride quality depends on the springs, the shocks and the bump stops working together. A new spring can feel firmer or softer than the old one, and the shocks may need time to settle into the new setup. If the ride feels harsh or floaty after installation, check the shock condition and tire pressure before changing anything else.

  • Keep added weight within the light load range
  • Inspect shocks and bump stops
  • Check tire pressure after a load change

Specifications

Brand ARB 4×4 Accessories
Part number 3204
Product line Old Man Emu
Load rating Light load
Position Rear
Height 2 to 3.5 inches
Color Black
Fitment type Direct fit

Vehicle fitment

It fits the 2021–2026 Ford Bronco in Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks and Wildtrak trims.

The list does not include the Ford Bronco Sport or any Bronco model before 2021. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Rear coil springs change the ride height and the alignment, so have the alignment checked after installation. A light load rating means the set is not intended for heavy added weight.

What’s included

Includes the light load rear coil spring set.

Fitment

VehicleYearsTrims
Ford Bronco2021–2026Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks, Wildtrak

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the ARB 3204 fit a 2022 Ford Bronco Base?

Yes. The Base trim is covered in the 2021–2026 Bronco range, which includes 2022 models. Badlands, Big Bend, Black Diamond, Outer Banks and Wildtrak trims also fit.

Is the 3204 a rear set for light loads?

It is a rear set for light loads. The front set is a separate part, so confirm the position before ordering.

Does the 3204 come with shocks?

No. This is a spring set and does not include shock absorbers. Pair the new springs with shocks that are in good condition.

What happens if a light load spring carries heavy added weight?

The spring can sag or ride low over time and may bottom out more easily. Heavy loads also add stress to the shocks and rear axle components, so a heavier load rating is a better fit for that use.
