Overview

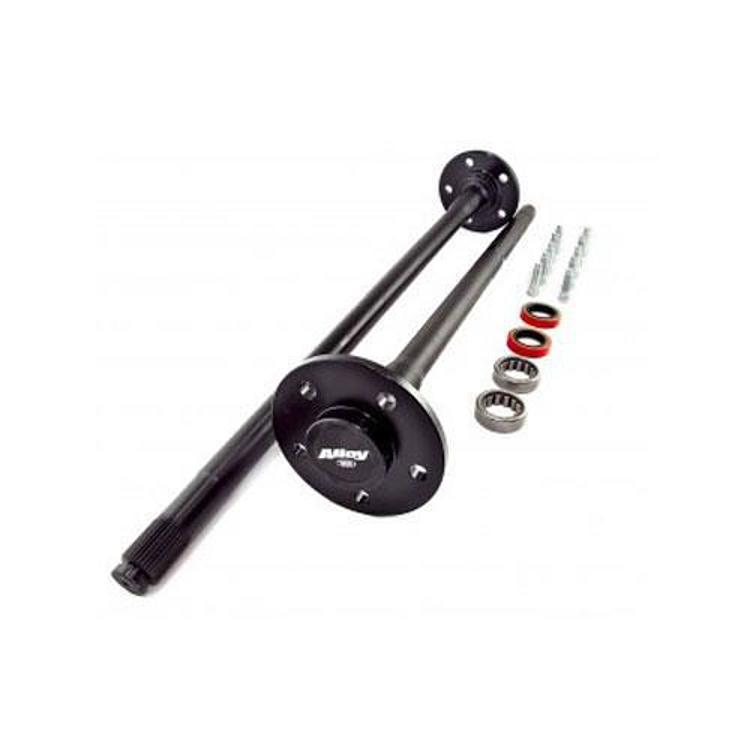

The Alloy USA Dana 44 Mas Grande rear axle kit (part number 12137) is a rear axle kit with 4340 chromoly axle shafts, built for use with an aftermarket 35 spline carrier. The shafts are heat-treated twice.
The kit comes with wheel bearing and seal kits and wheel studs. It carries a 10-year warranty.
Key features
- 4340 chromoly axle shafts, heat-treated twice
- Designed for strength up to 40% above standard axles.
- 35 spline design for an aftermarket 35 spline carrier
- Wheel bearing and seal kits included
- Wheel studs included
- 10-year warranty
Carrier match and axle upkeep
A kit built for a 35 spline carrier only works with a matching carrier, so verify the carrier before ordering anything. Axle length, bearing fit and flange pattern also influence the install, so measure the existing components rather than relying on memory. A mismatch found at installation can cost time and parts.
Chromoly shafts handle heavy loads well when they are kept in good condition. Check the shafts for bends and cracks near the flange, and look for grease leaks past the seals. Hard use, larger tires and rock impacts all add stress, so periodic inspection is a practical habit for any heavy-duty axle.
- Measure the carrier before ordering
- Check shafts for bends after rock impacts
- Watch for grease leaks past the seals
- Re-torque wheel studs after the first drives
Specifications
| Brand | Alloy USA |
|---|---|
| Part number | 12137 |
| UPC | 80177304359 |
| Axle location | Rear |
| Axle type | Dana 44 |
| Axle spline | 35 splines |
| Material | 4340 chromoly |
| Popular axle manufacturer | Dana |
| Includes differential | None |
| Warranty | 10-year |
Vehicle fitment
It is built for an aftermarket 35 spline carrier. Check the carrier’s spline count and axle type against your vehicle before ordering.
Confirm the carrier’s spline count and axle type against your vehicle. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the kit is built for a 35 spline carrier, a spline mismatch would stop it from fitting. Verify the carrier first.
What’s included
Chromoly axle shafts, wheel bearing and seal kits, and wheel studs.
Not included: Differential.
