Alloy USA 5x5 Inch Bolt Pattern with 1.25 Inch Offset Wheel Spacers (Red) – 11303

Alloy USA

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Spacer for wheels with a 5 on 5 inch bolt pattern
  • 1.25 inch thickness, Alloy USA part number 11303
  • Red aluminum, 6061T6, double anodized
  • Grade-8 hardware
  • Marked universal fit; no vehicle years or models named

Description

Overview

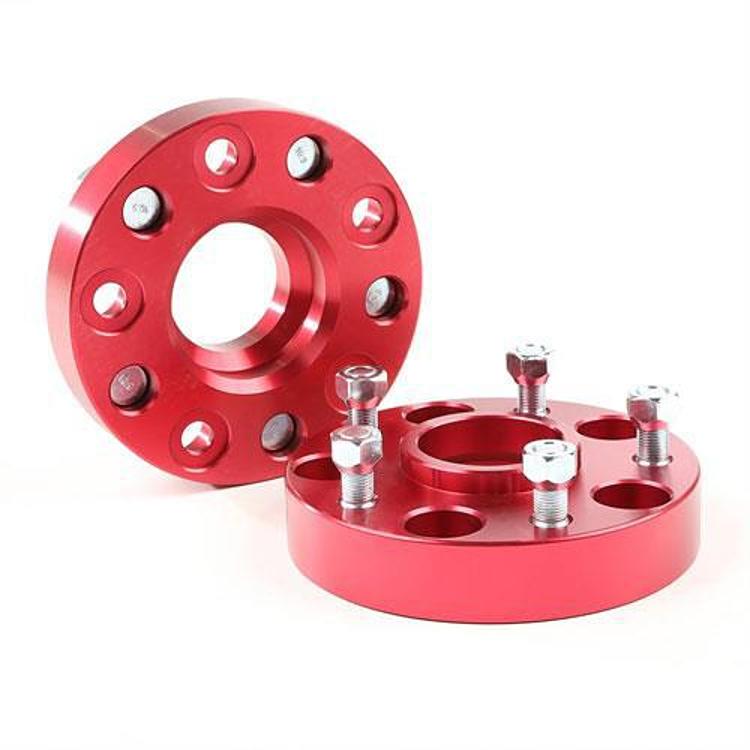

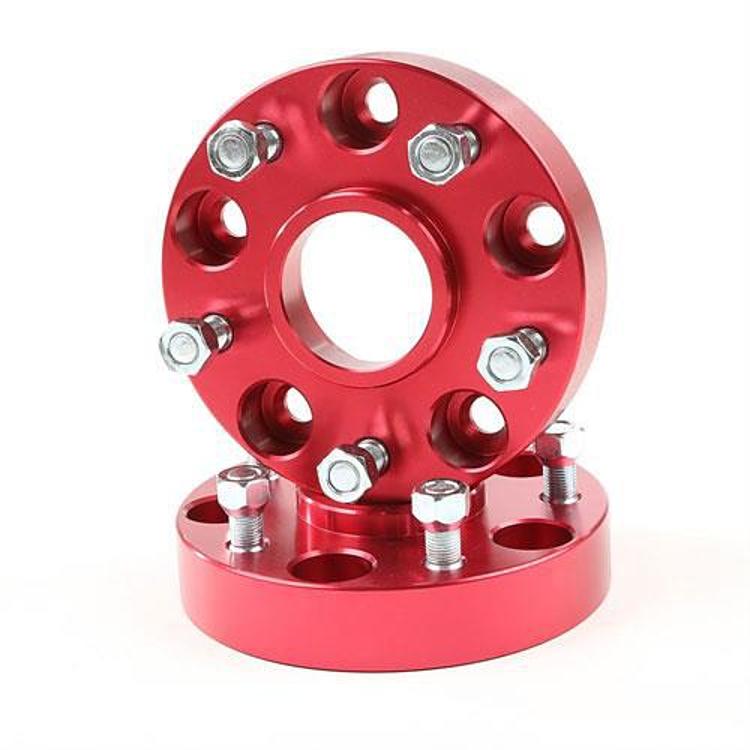

The Alloy USA 11303 is a red 1.25 inch aluminum wheel spacer for wheels with a 5 on 5 inch bolt pattern. A wheel spacer moves the wheel outward on the hub, which can help fit wider tires and widen the track width, the distance between a vehicle’s left and right wheels, for added stability.

The spacer is double anodized 6061T6 aluminum, which supports long life and corrosion resistance. It uses grade-8 hardware for added strength. It is universal fit, so the bolt pattern and hub fit are the main checks for any vehicle.

Key features

  • 1.25 inch spacer thickness
  • 5 on 5 inch bolt pattern
  • 6061T6 aluminum with double anodizing for corrosion resistance
  • Grade-8 hardware for added strength
  • Red finish

Before you buy

Wheel spacers change how the wheel sits on the hub, so they also change the load on the wheel bearings, the studs and the suspension parts that hold the wheel. Before buying a spacer, check the wheel’s offset, the brake caliper clearance and whether the tire will rub at full steering lock. A spacer that clears the caliper on one side may not clear it on another, so test fit with the wheel mounted before driving.

Aluminum spacers are usually replaced when the anodized surface is scratched or pitted, since bare metal is exposed to road salt and moisture. Inspect the hub face and spacer mating surfaces each time the wheels come off, and clean any grit before remounting. Pair the spacer with a torque check after the first few drives, because the wheel can settle slightly as the nuts seat.

  • Look for stud damage or stretched threads before mounting
  • Keep mating surfaces free of paint and rust

Specifications

Brand Alloy USA
Part number 11303
UPC 804314274184
Thickness 1.25 inch
Material Aluminum, 6061T6, double anodized
Bolt pattern 5 on 5 inch
Adapter or spacer Spacer
Color Red
Hardware Grade-8
Fitment Universal Fit

Vehicle fitment

These spacers are universal fit and are not built for a specific year, model or trim. Choose them by bolt pattern: the 5 on 5 inch pattern must match both your wheels and your vehicle’s hub.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

Check the package contents against your installation before starting, including the number of studs, lug nuts and thread locker.

SKU: ALY11303 Category:

Specification

Shipping weight 7.50 lbs
Package dimensions 8.00 × 7.50 × 5.00 in
brands

Questions & Answers

Will the Alloy USA 11303 spacers fit my Jeep?

The spacers are universal fit, so they are not built for a specific year, model or trim. Match the 5 on 5 inch bolt pattern and 1.25 inch thickness to your wheels and hubs, then confirm your vehicle's year, model and trim.

What bolt pattern do the Alloy USA 11303 spacers use?

The Alloy USA 11303 is made for a 5 on 5 inch bolt pattern. Wheels with a different pattern will not bolt on correctly, so measure your wheels and hub before ordering.

How thick is the Alloy USA 11303?

The spacer is 1.25 inch thick, matching the 1.25 inch offset. It is made of 6061T6 aluminum with grade-8 hardware.

How often should spacer nuts be re-checked?

Re-check the nuts after the first few drives and again at regular service intervals. A spacer can settle slightly as the wheel seats, so a quick check keeps the wheel secure.
