Overview

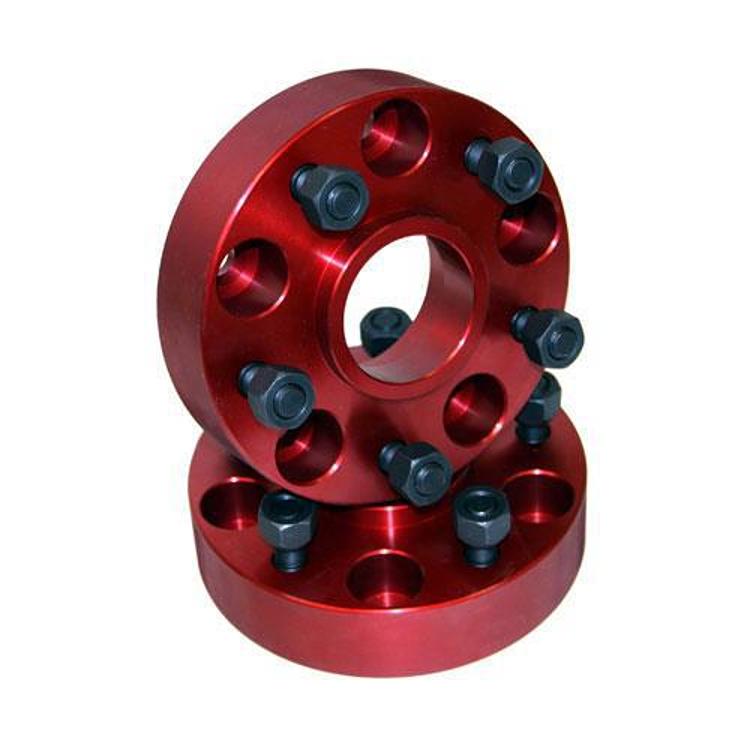

The Alloy USA 11310 is a red 1.25 inch aluminum wheel adapter kit for a bolt pattern range of 5 on 4.5 to 5 on 5.5 inch. Bolt pattern adapters let a wheel with one pattern mount on a hub with a different pattern, and they also add wheel spacing.
Alloy USA marks the kit as universal fit, so the bolt pattern and hub fit must be checked against your own vehicle. The aluminum adapters are red anodized for corrosion resistance.
Key features
- Bolt pattern range of 5 on 4.5 to 5 on 5.5 inch
- 1.25 inch thickness
- Red anodized aluminum for corrosion resistance
- Kit includes two adapters, ten pre-installed wheel studs, ten lug nuts and Loctite
Adapter wear and upkeep
A bolt pattern adapter carries the full wheel load through its studs and mounting faces, so it should be inspected as part of normal wheel service. Look for cracks around the stud holes, wear on the mounting face and any play between the adapter and the hub. Any movement or fretting marks on the face mean the mounting needs attention before the vehicle is driven further.
Adapters often change the wheel’s offset, which can affect steering feel and tire contact with the fender. After fitting, check for rubbing at full lock and recheck the nut torque after the first drives. If the vehicle also has larger tires or a lift, plan the adapter setup with those changes in mind.
- Clean the hub face before fitting
- Use the included thread locker as directed
Specifications
| Brand | Alloy USA |
|---|---|
| Part number | 11310 |
| UPC | 804314222581 |
| Thickness | 1.25 inch |
| Material | Aluminum, red anodized |
| Bolt pattern | 5 on 4.5 to 5 on 5.5 inch |
| Adapter or spacer | Adapter |
| Color | Red |
| Fitment | Universal Fit |
Vehicle fitment
It is universal fit and is not built for a specific year, model or trim. Fit depends on whether your wheel and hub bolt pattern falls within the 5 on 4.5 to 5 on 5.5 inch range.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The kit includes two adapters, ten pre-installed wheel studs, ten lug nuts and Loctite thread locker.
