Overview

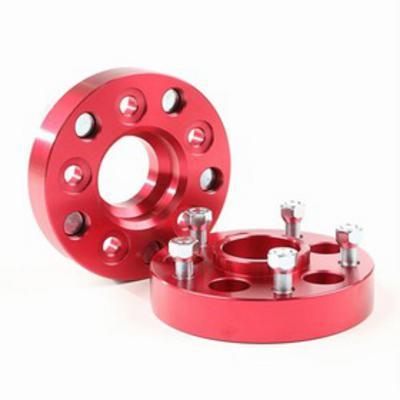

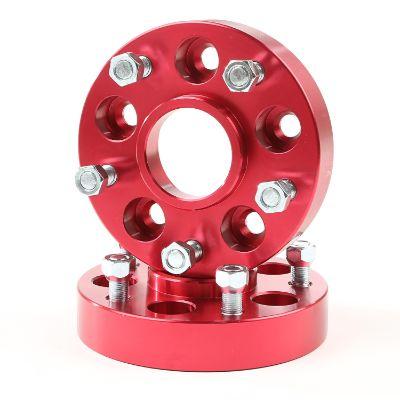

The Alloy USA 5×4.5 to 5×5 Inch Bolt Pattern Wheel Adapter, part number ALY11311, is a red aluminum adapter 1.25 inches thick that lets 5×5-inch wheels fit Jeeps with a 5×4.5-inch bolt pattern. It is a hub centric adapter, so it centers the wheel on the hub.
Adapters like this move the wheel outward, which widens the track and changes the space between the tire and the fender. The wider track can accommodate larger tires. Check clearance at full steering lock before driving, since the extra 1.25 inches changes where the tire sits.
Key features
- Hub centric design
- 1.25-inch thickness moves the wheel outward for a wider track
- Extra thick 6061T6 aluminum, double anodized for corrosion resistance
- Converts 5 on 5 wheels to a 5 on 4.5 hub
- Grade-8 hardware for added strength
Mounting and retightening
Hub centric adapters rely on a precise fit between the hub and the wheel center bore, so the wheel is supported by the hub rather than the lug studs alone. Clean the hub face and adapter contact surfaces before mounting. Any rust or debris can prevent the adapter from seating flat and cause vibration.
Adding thickness moves the wheel outward, which increases leverage on the wheel bearings and changes steering geometry slightly. Recheck lug nut tightness after the first short drive and again after the first trail runs. Wheel bearings and steering components may wear faster with a wider track, so inspect them at routine service.
- Clean hub and adapter mating surfaces
- Retighten lug nuts after the first drive
- Check wheel clearance at full steering lock
Specifications
| Brand | Alloy USA |
|---|---|
| Part number | ALY11311 |
| Adapter or spacer | Adapter |
| Thickness | 1.25 inch |
| Bolt pattern | 5 on 5 wheel to 5 on 4.5 hub |
| Material | Aluminum, 6061T6, double anodized |
| Hardware | Grade-8 |
| Color | Red |
Vehicle fitment
Fit is determined by bolt pattern. The wheel must be 5 on 5 and the hub must be 5 on 4.5 for Jeeps with that pattern. Confirm your vehicle’s year, model and trim before ordering.
Adapters for other bolt patterns or thicknesses are separate parts. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the adapters are hub centric, confirm they seat correctly on your hub and wheel before tightening. Check wheel clearance after installation, especially with larger tires.
What’s included
The package includes a pair of 1.25-inch adapters with grade-8 hardware.
Not included: wheels and tires.
