Overview

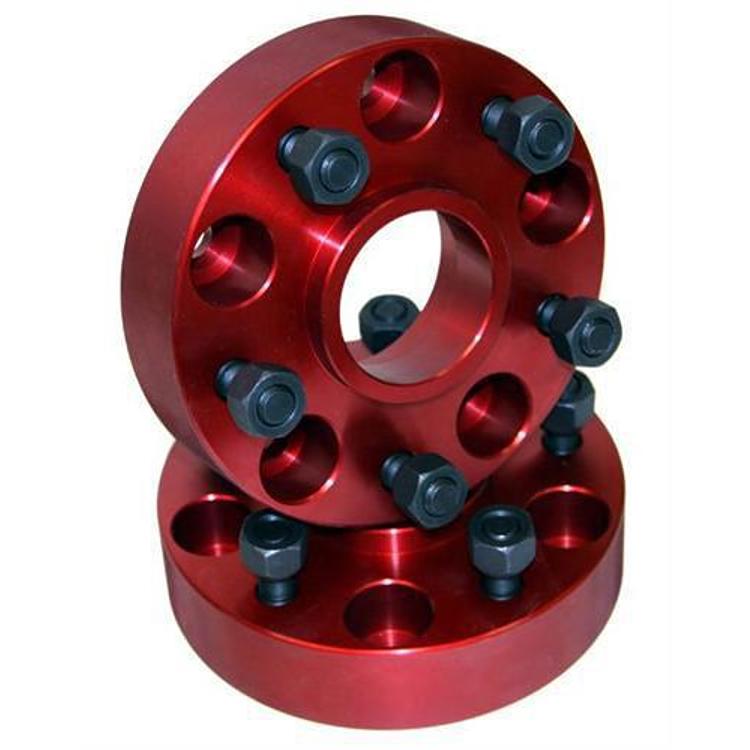

The Alloy USA 11301 is a set of red aluminum wheel spacers, 1.25 inch thick, for a 5 on 4.5 bolt pattern. Its applications are 84-01 Jeep Cherokee and 87-06 Wrangler models, and it is also universal fit.
Each spacer is red anodized for corrosion resistance. The wheel spacing is an extra 1.5 inch, while the thickness is 1.25 inch, so confirm which measurement matches your setup before ordering.
Key features
- 1.25 inch thick spacers
- 5 on 4.5 bolt pattern
- Red anodized aluminum
- Kit includes 2 spacers, 10 pre-installed wheel studs, 10 lug nuts and Loctite
- Applications: 84-01 Jeep Cherokee and 87-06 Wrangler
Thickness and spacing choices
Spacer thickness and wheel spacing are not always the same measurement, so the number on the box needs a careful read. Thickness is the spacer’s own dimension, while the spacing describes how far the wheel moves once mounted. Measure your current clearance before choosing so the result fits the tire and suspension.
Matching the hub is the other half of fit. A hub bore that is off-center or a bolt pattern that is slightly different will cause vibration or stud stress, even if the spacer appears to bolt on. Use a caliper or a straightedge to check the layout before buying a set.
Thicker spacers generally need longer studs or a thread check to keep the lug nuts fully engaged. Retorque after the first drive, and keep an eye on the spacer face for any movement or rust streaking.
- Measure hub bore and bolt layout
- Confirm stud thread engagement
- Recheck lug nut torque after fitting
Specifications
| Brand | Alloy USA |
|---|---|
| Part number | 11301 |
| UPC | 804314222567 |
| Bolt pattern | 5 on 4.5 |
| Thickness | 1.25 inch |
| Material | Aluminum |
| Type | Spacer |
| Color | Red |
| Finish | Red anodized |
Vehicle fitment
Applications are 84-01 Jeep Cherokee and 87-06 Wrangler. Confirm your year, model and trim before ordering.
The named applications do not cover Grand Cherokee, Liberty or other Jeep models.
Installation notes
Check the 1.25 inch thickness against the extra 1.5 inch of spacing before choosing this set. After fitting, recheck clearance because the wheel sits farther out.
What’s included
Two spacers, 10 pre-installed wheel studs, 10 lug nuts and Loctite.
