Overview

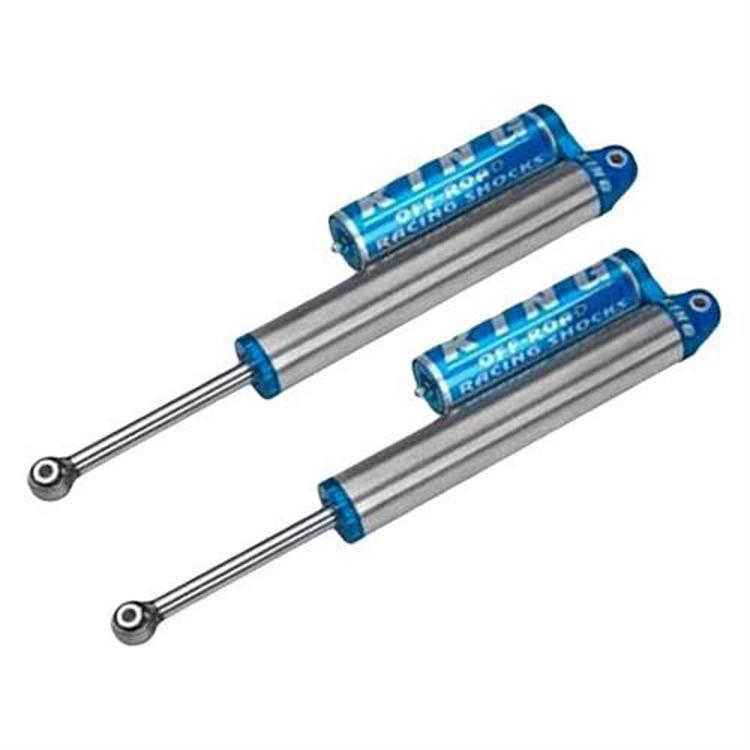

The King Shocks 25001-153 is a 2.5 inch OEM Performance piggyback reservoir shock absorber, sold as a pair for the rear of the 1996–2004 Toyota Tacoma. Confirm fit for your vehicle’s year, model and trim before ordering.
The rear pair uses a non-adjustable damper with a piggyback reservoir and a monotube design. The compressed length is 13.11 inch. Extended length is 19.50 inch on the left and 20.50 inch on the right, so the two sides are not the same length. The body is 2.5 inch in diameter, and it is an easy bolt-on fit for stock height.
Key features
- Rear position for the 1996 to 2004 Toyota Tacoma
- Piggyback reservoir design
- Non-adjustable damping
- Monotube internal design
- Hard anodized 6063 aluminum alloy construction
- Heat treated 6061 aluminum alloy piston with Rulon composite wear bands
Rear shock setup on a Tacoma
Rear shocks on a Tacoma carry the bed load and the pull from the axle, so the damping is worked hard on rough roads. A piggyback reservoir gives the shock more room to hold oil and shed heat during long drives. Because this pair is non-adjustable, the choice comes down to matching the shock length and damping to how the truck is used.
When installing, keep the left and right units in their own positions and confirm the lengths before mounting. Check the upper and lower bushings for cracks and the reservoir bracket for looseness at each service. Replace rear shocks in pairs so both sides control the axle in the same way.
- Confirm which side each unit belongs
- Inspect bushings for cracks
- Replace in pairs
Specifications
| Brand | King Shocks |
|---|---|
| Part number | 25001-153 |
| UPC | 70000569047 |
| Position | Rear, driver and passenger side |
| Adjustment type | Non-adjustable (without adjuster) |
| Reservoir | Piggyback reservoir |
| Internal design | Monotube |
| Body diameter | 2.5 inch |
| Compressed length | 13.11 inch |
| Extended length | 19.50 inch (left), 20.50 inch (right) |
| Body material | Hard anodized 6063 aluminum alloy |
| Piston material | Heat treated 6061 aluminum alloy |
| Wear bands | Rulon composite |
| Fitment type | Direct fit |
| Quantity | 2 per pack, sold as a pair |
Vehicle fitment
The rear pair is designed for the 1996 to 2004 Toyota Tacoma.
Tacoma model years outside 1996 to 2004 fall outside this fit. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
It is an easy bolt-on fit for stock height. The left and right extended lengths differ, so check which side each shock is marked for before mounting.
What’s included
Two rear shock absorbers with piggyback reservoirs, sold as a pair.
