Overview

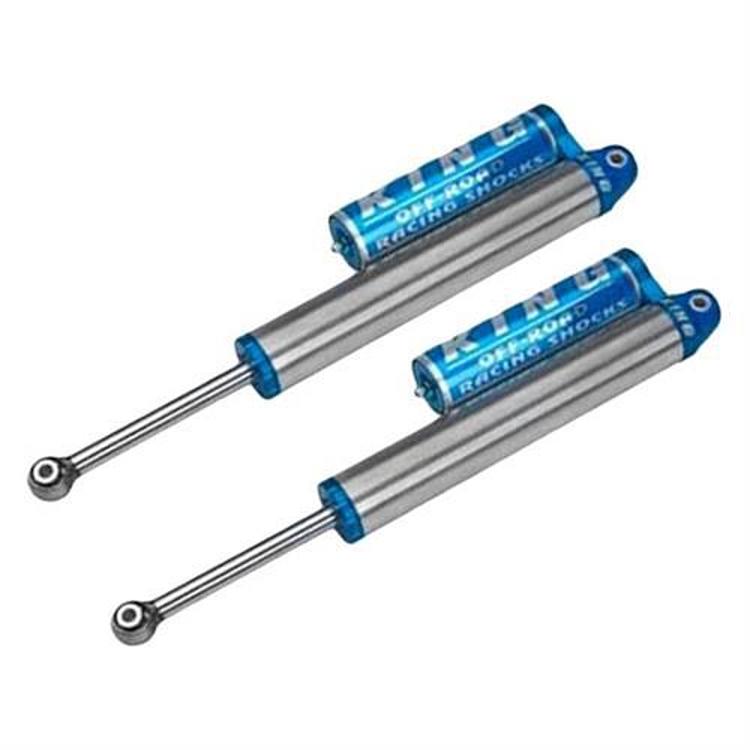

The King Shocks 25001-327 is a front piggyback reservoir shock absorber set for 2014 to 2017 Ram 2500 trucks, supplied as a pack of two with driver and passenger side units. It is a non-adjustable monotube shock with a 2.5 inch body diameter.
The shocks measure 15.029 inch compressed and 22.611 inch extended, with a travel figure of 7.582. Each shock uses a heat treated 6061 aluminum alloy piston and a hard anodized 6063 aluminum alloy body. The damping is custom tuned for stock-height trucks and for trucks running lifted aftermarket suspensions.
Key features
- Non-adjustable, so damping is set at the factory
- Monotube internal design
- Hard anodized 6063 aluminum alloy body
- Heat treated 6061 aluminum alloy piston
- Rulon composite wear bands, which King says resist wear strongly
- Piggyback reservoir on a 2.5 inch body
- Pack of two, front driver and passenger side
- Suited to stock height or to trucks on lifted aftermarket suspensions
Front suspension upkeep
Front shocks control the way the truck settles, brakes and turns, so they interact closely with the steering and the front tires. Worn units can cause a loose or wandering feel at speed and uneven tread wear. Inspect ball joints, tie rod ends and control arm bushings while the shocks are off, since play in those parts can mask the damping.
Piggyback reservoirs need clearance from the frame, the inner fender and the steering linkage through full travel. Check hose and reservoir placement after fitting, and look for any rubbing. Replacing the front shocks as a matched pair keeps the front end balanced, and a post-install alignment check helps the steering settle.
- Inspect ball joints and tie rod ends
- Check reservoir clearance through full travel
- Match front shocks as a pair
Specifications
| Brand | King Shocks |
|---|---|
| Part number | 25001-327 |
| UPC | 700007110061 |
| Position | Front |
| Quantity | 2 per pack |
| Adjustment type | Without adjuster |
| Compressed length | 15.029 inch |
| Extended length | 22.611 inch |
| Travel | 7.582 |
| Body diameter | 2.5 inch |
| Reservoir type | Piggyback |
| Body material | Hard anodized 6063 aluminum alloy |
| Piston material | Heat treated 6061 aluminum alloy |
Vehicle fitment
It fits 2014–2017 Ram 2500 in the Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, Power Wagon, SLT and Tradesman trims. Ram 1500 and 3500 models are outside this fit.
Rear shocks and Ram trucks outside these trims are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
These are bolt-on front shocks, so the factory mounts are the intended attachment points. Replace the shocks as a matched pair on the same axle to keep the front end balanced. Have the front alignment checked afterward, since a change in damping can affect steering feel.
What’s included
The pack holds two front shocks, one driver side and one passenger side. Check the mounting hardware against your installation before starting.
Not included: Rear shocks and lift components are not part of this set.
