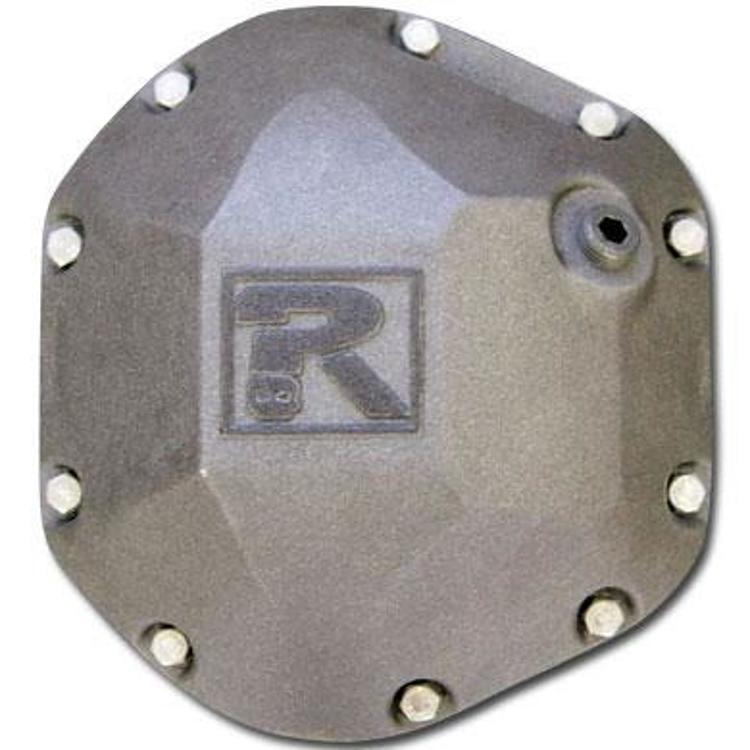

Riddler Manufacturing Dana 44 Cast Iron Cover – RD44

Riddler Manufacturing

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Riddler Manufacturing cast iron differential cover for Dana 44 front or rear axles
  • High grade ductile iron, CNC machined, with a lip-free transition design
  • Stainless steel fasteners and Permatex sealant included
  • UPC 70000378865 and model code RD44; no part number listed
  • Vehicle fitment not listed

Description

Overview

The Riddler Manufacturing RD44 is a cast iron differential cover for Dana 44 front or rear axles. It is cast from high grade ductile iron, CNC machined, and built with a lip-free, smooth transition so the edge stays flush with the housing.

Stainless steel fasteners and Permatex sealant come with the cover, and it carries a lifetime guarantee. Confirm the axle type is Dana 44 before ordering.

Key features

  • Cast from high grade ductile iron
  • CNC machined body
  • Lip-free, smooth transition design
  • Recessed fasteners and a raised fill plug
  • Stainless steel fasteners with Permatex sealant
  • Shipped with a raw finish
  • Lifetime Guarantee

Cover upkeep and fluid level

A differential cover protects the gears from road debris and holds the gear oil in. Cover faces can warp if bolts are tightened unevenly, so tighten in a cross pattern and check the seal surface for flatness. The fill plug is raised, so a stripped plug is a common reason for leaks.

Gear oil level is checked at the fill port, and the oil should reach the fill plug threads. Keep the cover clean when inspecting, and wipe the housing face before fitting a new gasket. Over time, a steel cover can scratch or rust, which is worth touching up on exposed areas.

  • Tighten cover bolts in a cross pattern
  • Check fill plug threads for stripping
  • Clean both sealing surfaces before reinstalling
  • Check gear oil level at the fill port
  • Touch up scratches to slow rust

Specifications

Brand Riddler Manufacturing
Model code RD44
UPC 70000378865
Material High grade ductile iron
Axle type Dana 44
Axle location Front or rear
Finish Natural (raw finish)
Oil capacity Extra capacity
Fasteners Stainless steel, recessed
Fill plug Raised
Sealant Permatex
Warranty Lifetime Guarantee

Vehicle fitment

The cover is made for Dana 44 front or rear axles, so confirm the axle type before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Removing a differential cover drains the gear oil, so check the fluid level and refill with lubricant suited to your axle. Clean both mating surfaces before fitting the cover and the Permatex sealant.

What’s included

The cover comes with stainless steel fasteners and Permatex sealant.

Not included: Gear oil, which you supply.

SKU: RIDRD44 Category:

Specification

Shipping weight 11.00 lbs
Package dimensions 12.00 × 12.00 × 5.00 in
brands

Questions & Answers

Does the Riddler RD44 cover fit Dana 44 front and rear axles?

Yes, it is made for Dana 44 front or rear axles. Confirm the axle is a Dana 44 and that your vehicle's year, model and trim fit before ordering.

What material is the Riddler RD44 differential cover made from?

It is cast from high grade ductile iron and CNC machined. The cover ships with a raw, natural finish and has a lip-free, smooth transition with recessed fasteners and a raised fill plug.

What fasteners and sealant come with the Riddler cover?

Stainless steel fasteners and Permatex sealant come with the cover. Have gear oil ready before installing, since it is not part of the package.

Does the Riddler RD44 have a part number?

No separate part number is listed. The product is identified by the model code RD44 in its title and by UPC 70000378865, which appears in the specifications table.

How do I tell when the differential cover needs to come off?

Remove it when inspecting the gears, correcting a leak at the gasket or checking for debris. Inspect the cover face for warping and the fill plug for stripped threads before reinstalling. Replacing the sealant at reinstall helps prevent future seepage.
