Overview
The Tuff Country 52920 is a lift kit for the 2005–2018 Toyota Tacoma, covering the Base, Limited, Pre Runner, SR, SR5, TRD Off-Road and TRD Sport models. It gives a 2 inch front lift and a 1.5 inch rear lift, using front strut spacers and rear lift blocks.
At the front, the kit uses strut spacers and strut pre-load spacers. At the rear, it uses 1.25 inch aluminum lift blocks and rear U-bolts. Shocks are not included, so the existing shocks are used or new shocks are fitted separately.
Tuff Country says its lift kits are engineered for quality and simple installation, and it backs them with a limited lifetime warranty.
Key features
- 2 inch front lift
- 1.5 inch rear lift
- Front strut spacers
- Strut pre-load spacers
- 1.25 inch aluminum rear lift blocks
- Rear U-bolts included
Checking strut and block parts
Strut spacers raise the front without replacing the struts, so the strut mounts and upper bearings carry the same loads from a new position. A strut that has been under a lift for years may have a worn top mount, so inspecting it while the spacers are installed saves a repeat job. Look for cracked spacer edges, loose strut nuts and any sign of rubbing at the tire or inner fender after the first drives.
Rear aluminum blocks move the axle, which changes pinion and driveshaft angles and can make the rear end feel firmer. Check U-bolt nuts for torque after the first few trips, and inspect the leaf springs and shackle bushings for wear. Tacomas used hard on trails often need these items rechecked more frequently.
- Strut mount bearings and nuts
- U-bolt torque after the first trips
- Rear leaf shackles and bushings
- Driveshaft angle after rear block install
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 52920 |
| UPC | 698815529207 |
| Front lift | 2 inch |
| Rear lift | 1.5 inch |
| Suspension type | Spacer |
| Rear block | 1.25 inch aluminum |
| Shocks | Not included |
Vehicle fitment
It fits the 2005–2018 Toyota Tacoma (Base, Limited, Pre Runner, SR, SR5, TRD Off-Road and TRD Sport).
Tacoma model years outside 2005–2018 and the 1995–2004 generation are not covered. Be sure the year, model and trim of your Tacoma are right before buying.
Installation notes
Strut spacers change the front suspension height, so check the alignment and the front strut mounts after installation. The rear blocks change the rear axle position, so check the driveline angles as well.
What’s included

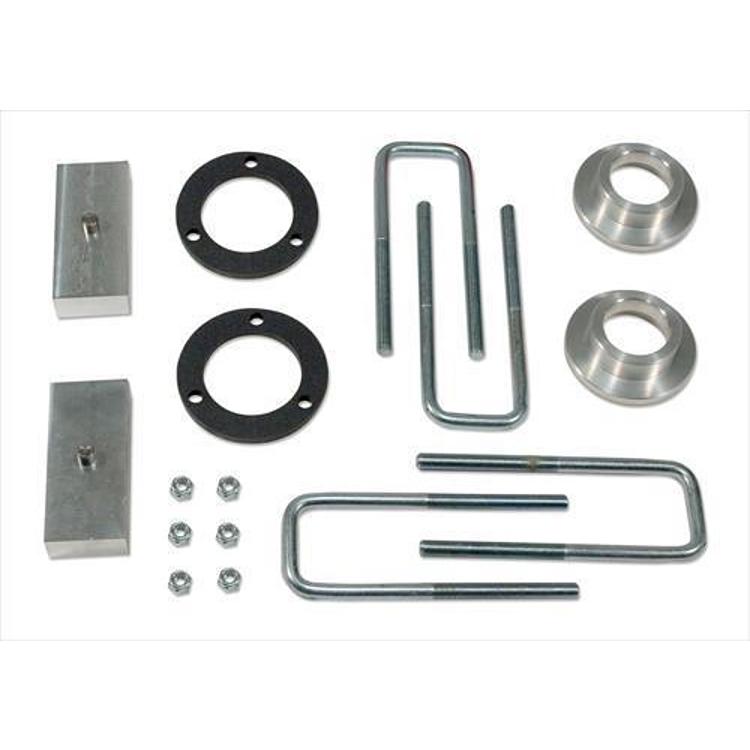

The kit includes front strut spacers, strut pre-load spacers, 1.25 inch aluminum rear lift blocks and rear U-bolts.
Not included: Shocks.
