Overview
The 52904 is a 3 inch lift kit for the 1995–2004 Toyota Tacoma (Base, Limited and SR5). It uses strut and pre-load spacers at the front and a 3 inch block with U-bolts at the rear to raise the truck.
The kit includes a brake proportioning bracket and an extended brake line. The lift height range is 3 to 4.99 inches. Shocks are not included.
Tuff Country says its lift kits are engineered for quality and simple installation, with a limited lifetime warranty.
Key features
- 3 inch lift height
- Strut spacer and pre-load spacer at the front
- Brake proportioning bracket
- 3 inch rear block
- U-bolts included
- Extended brake line included
Brake balance after a lift
Raising a truck changes the brake geometry, and the brake proportioning bracket helps keep the front and rear brakes working together. Brake lines have to reach the new positions without stretching, so line length is worth checking after the install. A brake system that is out of balance can pull or lock a wheel early under hard stops.
Older Tacomas often have worn pads, rotors and brake hoses. Replacing these during a lift is a practical step, since the brakes are already being inspected. Test the pedal feel and stopping in a safe area before normal driving.
- Check brake line length at full suspension travel
- Inspect pads and rotors during the install
- Test braking in a safe area before normal use
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 52904 |
| UPC | 69881552904 |
| Lift | 3 inch |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Spacer |
| Rear lift method | Lift blocks and U-bolts |
| Shocks | Not included |
Vehicle fitment
This kit fits the 1995–2004 Toyota Tacoma (Base, Limited and SR5).
Tacoma model years outside 1995–2004 are not covered. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
The brake proportioning bracket and the extended brake line are part of the lift, so the brake lines and the brake balance should be checked after installation. Check the alignment as well, since the strut spacers change the front geometry.
What’s included

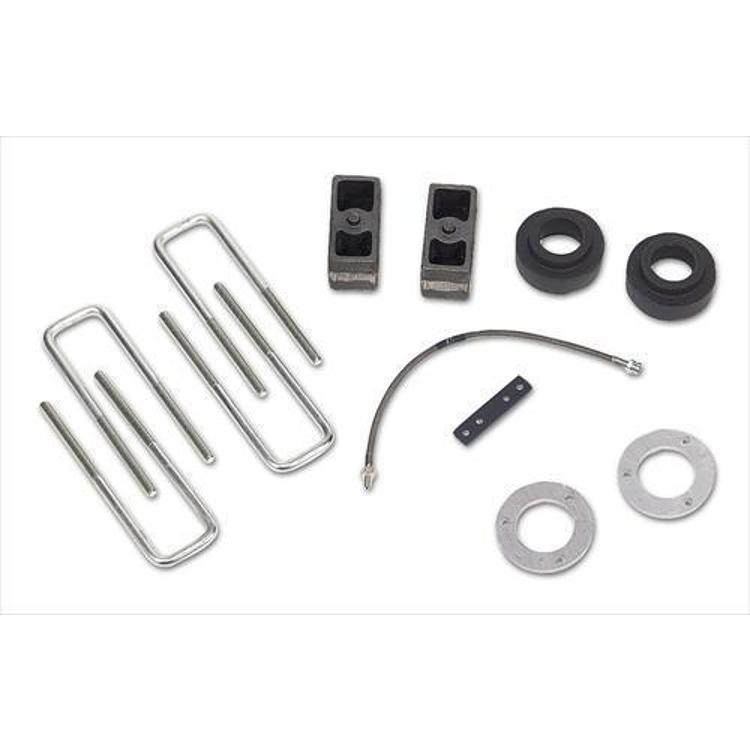

The kit includes a brake proportioning bracket, a pre-load spacer, a strut spacer, a 3 inch block, U-bolts and an extended brake line.
Not included: Shocks.
