Overview
The Tuff Country 35912KN is a lift kit with SX8000 shocks for the 1994–2000 Dodge Ram 1500 pickup. It provides a 4.5 inch lift with a 3 inch rear lift, and the lift height range is 3 to 4.99 inches.
The kit uses coil spring spacers and a pitman arm, and the SX8000 shocks and shock boots are included. Because the front is raised with spacers, the factory coil springs stay in place, which is the basic idea behind a spacer lift.
The SX8000 shocks and shock boots are included, and the kit is designed for straightforward installation.
Key features
- 4.5 inch lift
- 3 inch rear lift
- Coil spring spacers
- Pitman arm
- SX8000 shocks included
- Shock boots included
Steering checks after a spacer lift
Coil spring spacers raise the front without replacing the springs, so the factory coils carry the same load at a higher position. The spacers can shift the upper spring seat slightly under load, so check that they remain centered and tight after the first few weeks of driving.
The pitman arm changes the steering linkage angle, which makes the steering box, drag link and tie rods more sensitive to wear. Check for play at the steering wheel and listen for clunks over bumps. Shock boots protect the shock shafts from grit, so inspect them for tears at each service and replace any that split.
- Spacer seats and bolts for looseness
- Pitman arm and drag link joints
- Shock boot tears and grit exposure
- Rear level after the first weeks
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 35912KN |
| UPC | 698815022852 |
| Lift | 4.5 inch, with a 3 inch rear lift |
| Lift height range | 3 to 4.99 inches |
| Front components | Coil spring spacers and pitman arm |
| Shocks | SX8000, included |
Vehicle fitment
It fits the 1994–2000 Dodge Ram 1500, including Base, LT, Laramie, ST and Sport models.
Ram models outside the 1500 line, and years outside 1994–2000, are not covered. Make sure your year, model and trim are covered before ordering.
Installation notes
The pitman arm changes the steering geometry, so the steering and alignment should be checked after installation. Because the rear is lifted 3 inches and the front 4.5 inches, check the level of the truck once it is installed.
What’s included

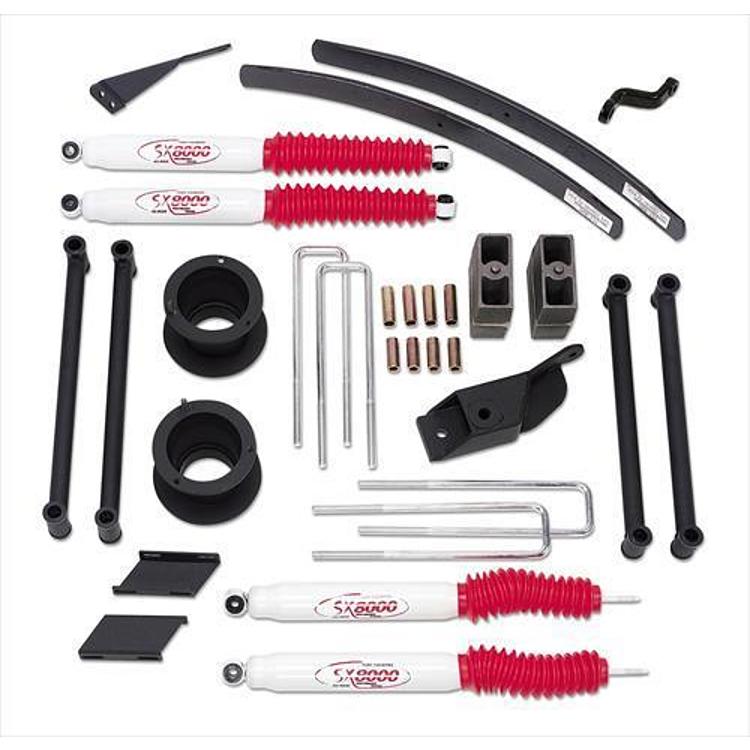

The kit includes SX8000 shocks, shock boots, coil spring spacers and a pitman arm.
