Overview

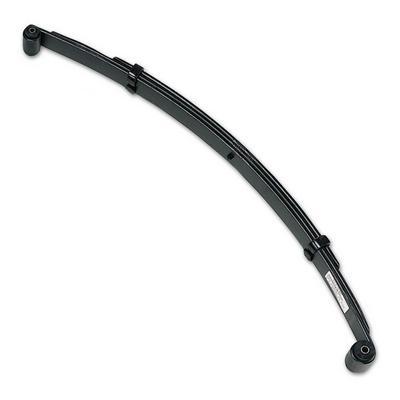

The Tuff Country 4 inch lift leaf spring (part number T/C18460) is a single front leaf spring for early Chevrolet and GMC trucks. It covers the 1969–1972 Chevrolet K10 and K20 pickups and Suburbans, the 1969–1972 Chevrolet Blazer, the 1970–1972 GMC Jimmy and the 1969–1973 GMC K15, K25 and Suburban models.
The spring is tapered, snub rolled, Teflon padded and pre-set, and each one comes with polyurethane bushings. The lift height range is 0 to 4.99 inches.
Key features
- 4 inch lift leaf spring
- Single front spring
- Tapered design
- Snub rolled
- Teflon padded
- Pre-set
- Polyurethane bushings included
Ride height and front geometry
Front springs set the height and load position for the whole front end, so a change in spring height changes caster, steering geometry and how the axle sits. Taller springs can make the front end feel different on the road, and the new height may affect steering feedback and braking balance. Pre-set springs help the front end settle quickly after the install.
Before fitting, inspect the front shackles, hangers and U-bolts for wear and replace anything bent or cracked. Check the shocks and any brake lines for stretch at the new height. After the first drives, re-torque all hardware and get an alignment, since a change of this size rarely leaves alignment unchanged.
- Check U-bolts and shackle bolts
- Look at brake hose length at the new height
- Get an alignment after installation
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | T/C18460 |
| Position | Front |
| Quantity | Single spring |
| Bushings | Polyurethane included |
| Lift height range | 0 to 4.99 in |
| Construction | Tapered, snub rolled, Teflon padded, pre-set |
| Fitment | Direct fit |
Vehicle fitment
It fits the 1969–1972 Chevrolet Blazer in the Base trim, the 1969–1972 Chevrolet K10 and K20 pickups and Suburbans in the Base trim, the 1970–1972 GMC Jimmy in the Base trim, and the 1969–1973 GMC K15, K25 and K2500 Suburbans and pickups in the Base trim.
The list covers the years 1969 to 1973 only. It does not include the 1974 and later trucks or any Ford. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This is a single front spring, so a second spring is needed for the other side of the front axle. Check your lift height before ordering, since the range is 0 to 4.99 inches.
What’s included
A single front leaf spring with polyurethane bushings. Not included: a second spring for the other side of the axle.
