Overview
The Tuff Country 54804KN is a 4 inch lift kit with SX8000 shocks. It fits the 1986–1989 Toyota 4Runner (DLX and SR5) and the 1986–1995 Toyota Pickup (Base, Base Turbo, DLX, SR5 and SR5 Turbo). It is the shock-equipped version of the 54800K.
The kit has an X member and rear springs, along with an A-arm drop bracket, a differential bracket, a sway bar bracket, a bump stop spacer, a spindle adapter and a brake cable extension. The rear lift is an add-a-leaf design.
The kit is designed for straightforward installation and carries a limited lifetime warranty.
Key features
- 4 inch lift with SX8000 shocks
- X member
- Rear springs
- Add-a-leaf rear lift
- A-arm drop bracket and differential bracket
- Sway bar bracket
- Bump stop spacer and spindle adapter
- Brake cable extension
Add-a-leaf rear work
An add-a-leaf rear lift adds leaves to the existing spring pack rather than swapping the whole spring. Those leaves carry load and flex differently from a stock pack, so the spring center bolt, leaf clamps and shackle should be checked for alignment and free movement after installation. Keep the leaves lubricated where the design calls for it.
Because the shocks are included, the upper and lower shock mounts should be checked for proper bushing contact and full range of motion. Replace the bump stop spacer if it is worn, and look for signs of wear on the spring eyes. A rear lift that sits higher than the front can also change how the truck handles on the highway, so drive it carefully after the first install. Retorque all U-bolts after a short drive.
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 54804KN |
| UPC | 698815027543 |
| Lift | 4 inch |
| Suspension type | Bracket |
| Rear lift method | Add-a-leaf |
| Shocks | SX8000, included |
| Warranty | Limited lifetime |
Vehicle fitment
It fits the 1986–1989 Toyota 4Runner (DLX and SR5) and the 1986–1995 Toyota Pickup (Base, Base Turbo, DLX, SR5 and SR5 Turbo).
4Runner and Pickup model years outside those listed are not covered. Confirm the year, trim and cab style of your Toyota before ordering.
Installation notes
The X member, the A-arm drop bracket and the differential bracket change the front suspension geometry, so check the alignment and steering after installation. The add-a-leaf rear design changes the rear leaf pack, so check the rear ride height as well.

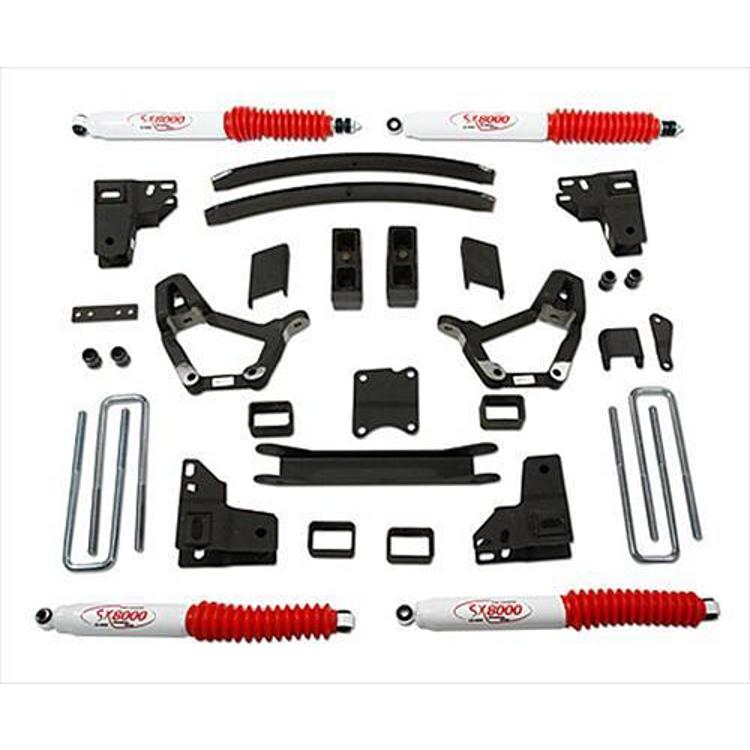

What’s included
The kit includes SX8000 shocks, rear springs, an X member, an A-arm drop bracket, a differential bracket, a sway bar bracket, a bump stop spacer, a spindle adapter and a brake cable extension.
