Overview
The Tuff Country 35130 is a lift kit with a 5-inch front lift and a 2.5-inch rear lift. The rear lift uses radius arm drop brackets. It is a direct fit kit, so confirm fit for your vehicle before ordering.
Driveline and rear geometry
Drop brackets lower the rear axle relative to the frame by moving the mounting point of the radius arms. That change shifts the pinion angle and the driveshaft angles, which is why driveline angles are checked after installation. Excess angle can wear universal joints quickly and cause vibration, so the check should be part of the job rather than an afterthought.
Radius arm brackets also change how the axle moves through its travel, so inspect the rear bushings, control arms and track bar for wear before the lift goes in. Brake lines and the parking brake cable may need slack checked, and rear sway bar end links may need replacing if they are bent. Look for binding or clicking in the driveline during low-speed turns, and retorque the bracket hardware after the first few drives.
- Measure driveline angles after installation
- Inspect universal joints for play or noise
- Check brake line and parking cable slack
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 35130 |
| UPC | 698815351303 |
| Front lift | 5 inches |
| Rear lift | 2.5 inches |
| Rear components | Radius arm drop brackets |
| Fitment type | Direct fit |
Vehicle fitment
It is a direct fit. Match the year, model and trim to your truck before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The radius arm drop brackets change the rear suspension geometry, so driveline angles should be checked after installation.

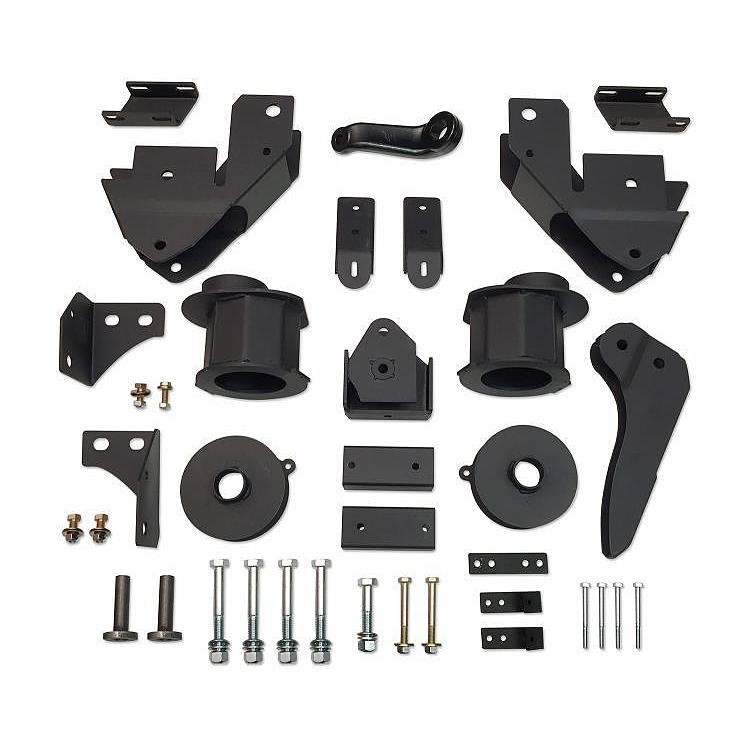

What’s included
- Radius arm drop brackets
