Overview
The Tuff Country 16959KN is a 6 inch knuckle lift kit with SX8000 shocks for the 1999–2005 Chevrolet Silverado 1500 and the 1999–2005 GMC Sierra 1500. The listed lift height range is 5 to 6.99 inches, and the kit uses knuckles, a crossmember and compression arms at the front.
The kit includes a crossmember, a skid plate, compression arms, a differential relocation bracket and a torsion bar crossmember bracket. At the rear it uses lift blocks, U-bolts and an add-a-leaf kit, and the axle spacers are included as well.
The kit is built for simple installation and carries a limited lifetime warranty. It covers the Base, Hybrid, LS, LT, WT and Z71 Silverado models, and the Base, HT, Hybrid, SL, SLE, SLT and WT Sierra models.
Key features
- 6 inch lift height, listed at 5 to 6.99 inches
- SX8000 shocks included
- Crossmember and knuckles
- Skid plate and compression arms
- Differential relocation bracket and torsion bar crossmember bracket
- Lift blocks, U-bolts and add-a-leaf kit at the rear
- Axle spacers included
Front end and rear setup
A knuckle-type lift changes the front steering geometry, so the ball joints, tie rod ends and track bar should be inspected before the kit goes on. Worn steering parts can make a new alignment hard to hold. Front and rear heights should be kept close together so the driveline angles stay within reason.
The rear lift blocks and add-a-leaf work on the leaf pack, so the U-bolts and axle spacers need a retorque after the first drives. Brake hoses and the parking brake cable should be checked for slack, and the skid plate should be looked over after rough trail use for bends or cracks.
- Inspect ball joints and tie rod ends before install
- Check driveline angles after the rear is set
- Retorque U-bolts after the first drives
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 16959KN |
| UPC | 698815019234 |
| Lift | 6 inch |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Knuckle |
| Rear lift method | Lift block |
| Shocks | SX8000, included |
Vehicle fitment
It fits the 1999–2005 Chevrolet Silverado 1500 (Base, Hybrid, LS, LT, WT and Z71) and the 1999–2005 GMC Sierra 1500 (Base, HT, Hybrid, SL, SLE, SLT and WT).
Silverado and Sierra 1500 model years outside 1999–2005 are not covered, and 2500 HD and 3500 trucks do not fit this kit. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A knuckle-type 6 inch lift changes the front steering and suspension geometry, so the alignment and the driveline angles need checking after installation. A skid plate is included with the kit.

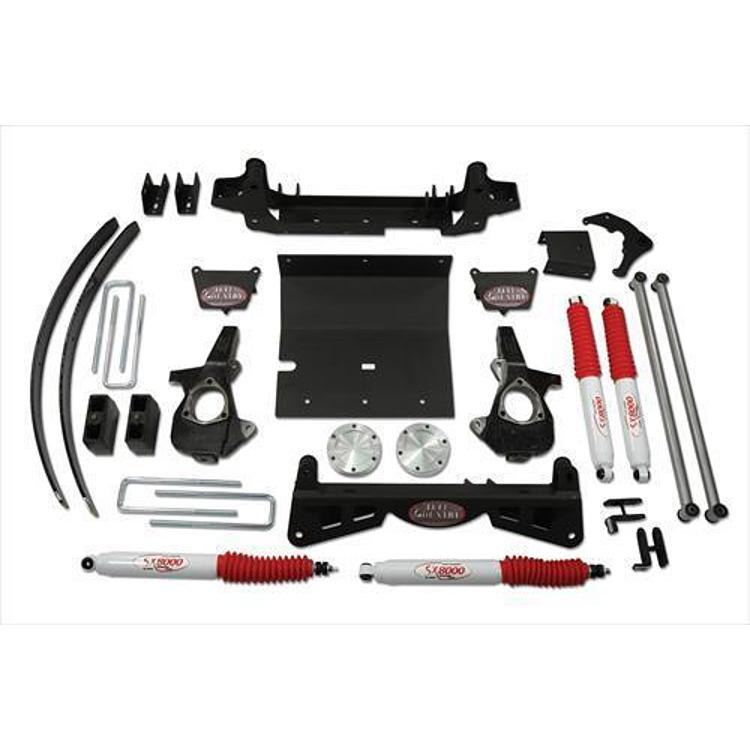

What’s included
The kit includes SX8000 shocks, a crossmember, skid plate, compression arms, knuckles, a differential relocation bracket, a torsion bar crossmember bracket, lift blocks, U-bolts, an add-a-leaf kit and axle spacers.
