Overview
The Tuff Country 54800K is a 4 inch lift kit for the 1986–1989 Toyota 4Runner (DLX and SR5) and the 1986–1989 Toyota Pickup (Base, Base Turbo, DLX, SR5 and SR5 Turbo). The kit has an X member and rear springs, and it is a spacer-type lift.
The kit includes an A-arm drop bracket, a differential bracket and a sway bar bracket, along with a bump stop spacer, a spindle adapter and a brake cable extension. Shocks are not included.
Tuff Country lists rear lift blocks and U-bolts for this kit in its specifications, while the kit details name rear springs. Confirm the rear lift parts with Tuff Country before ordering.
Key features
- 4 inch lift
- X member
- Rear springs
- A-arm drop bracket
- Differential bracket
- Sway bar bracket
- Bump stop spacer
- Spindle adapter and brake cable extension
Working on an older front end
Older Toyota trucks with a solid front axle and original steering linkage depend on worn parts being replaced before a lift. The X member and drop brackets change steering and suspension geometry, so the tie rods, drag links and ball joints deserve a look while the truck is apart. Replacing tired components at the same time keeps the new setup predictable.
The brake cable extension should be routed without tension and checked for chafing after the lift. Inspect the brake hoses, the sway bar links and the bump stops as well, since a higher ride height changes how those parts move. Over time, rust on the frame and bracket mounts is worth checking, especially on older trucks used in wet or salty areas.
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 54800K |
| UPC | 698815027253 |
| Lift | 4 inch |
| Suspension type | Spacer |
| Rear lift method | Lift blocks and U-bolts |
| Shocks | Not included |
Vehicle fitment
It fits the 1986–1989 Toyota 4Runner (DLX and SR5) and the 1986–1989 Toyota Pickup (Base, Base Turbo, DLX, SR5 and SR5 Turbo).
4Runner and Pickup model years outside 1986–1989 are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The X member and the drop brackets change the front suspension and steering geometry, so check the alignment and the steering after installation. The brake cable extension is part of the kit and should be checked after the lift is installed.

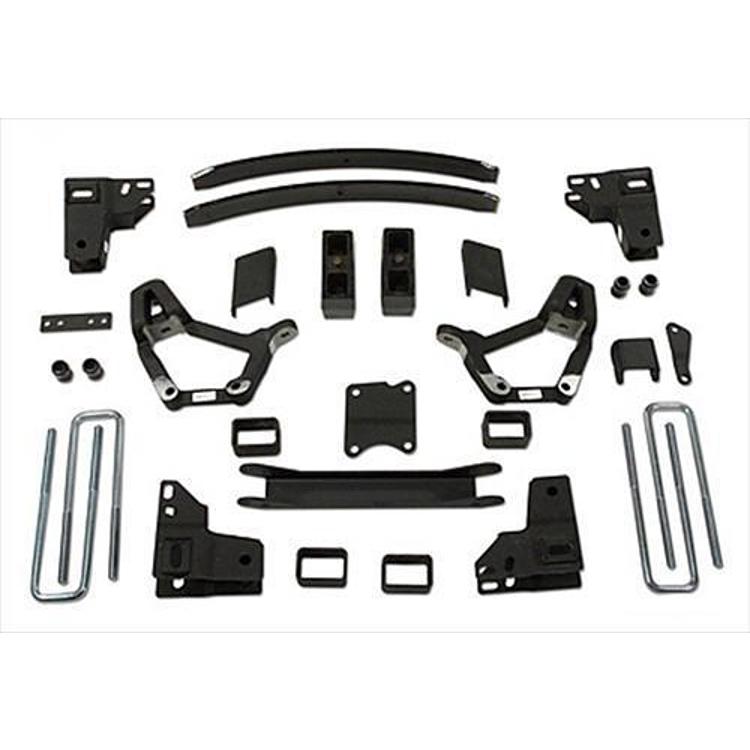

What’s included
The kit includes an X member, rear springs, an A-arm drop bracket, a differential bracket, a sway bar bracket, a bump stop spacer, a spindle adapter and a brake cable extension.
Not included: Shocks.
